Description

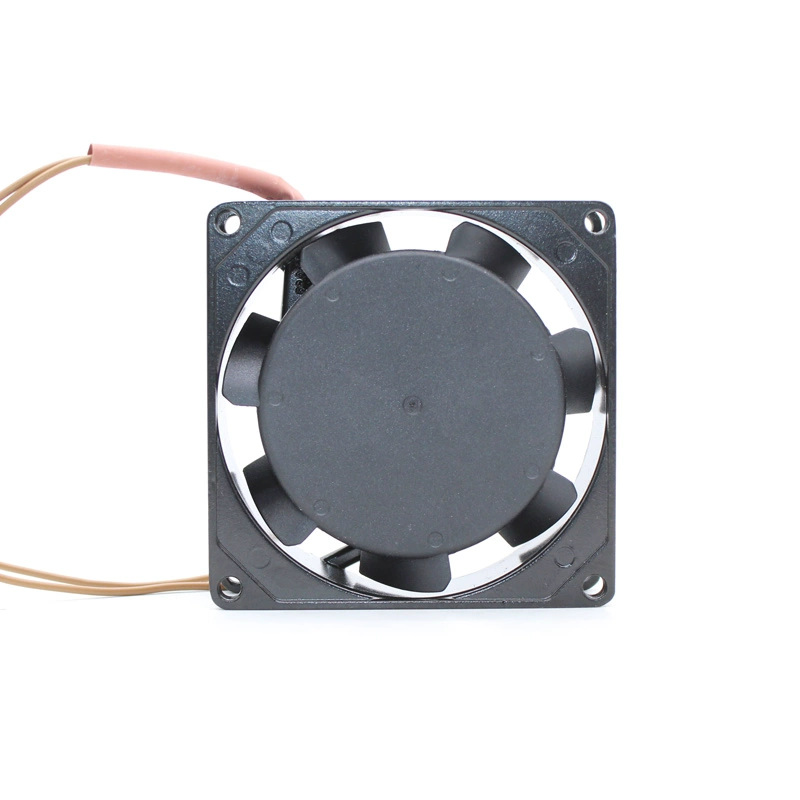

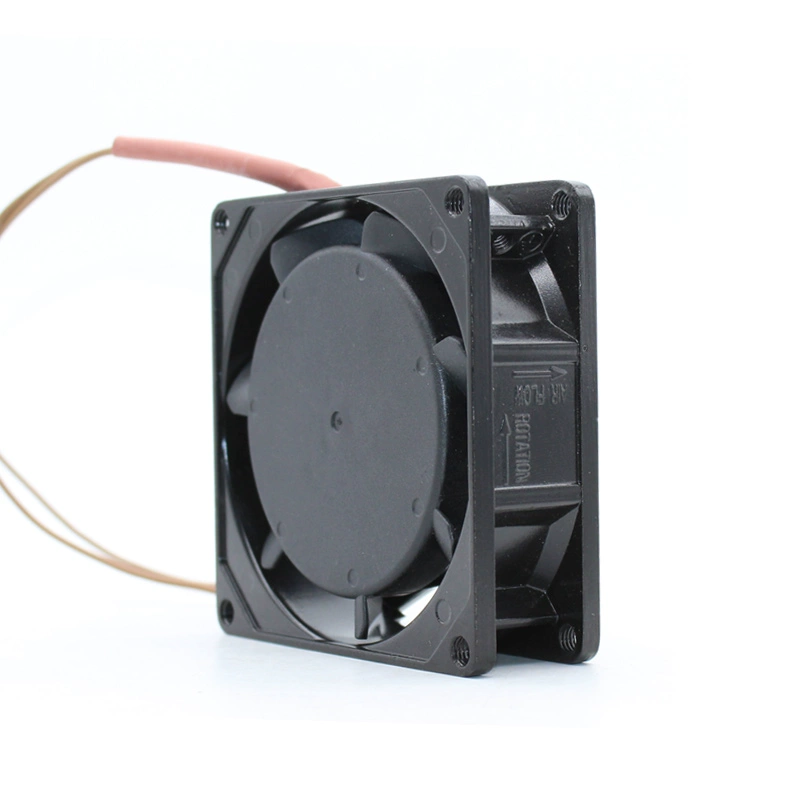

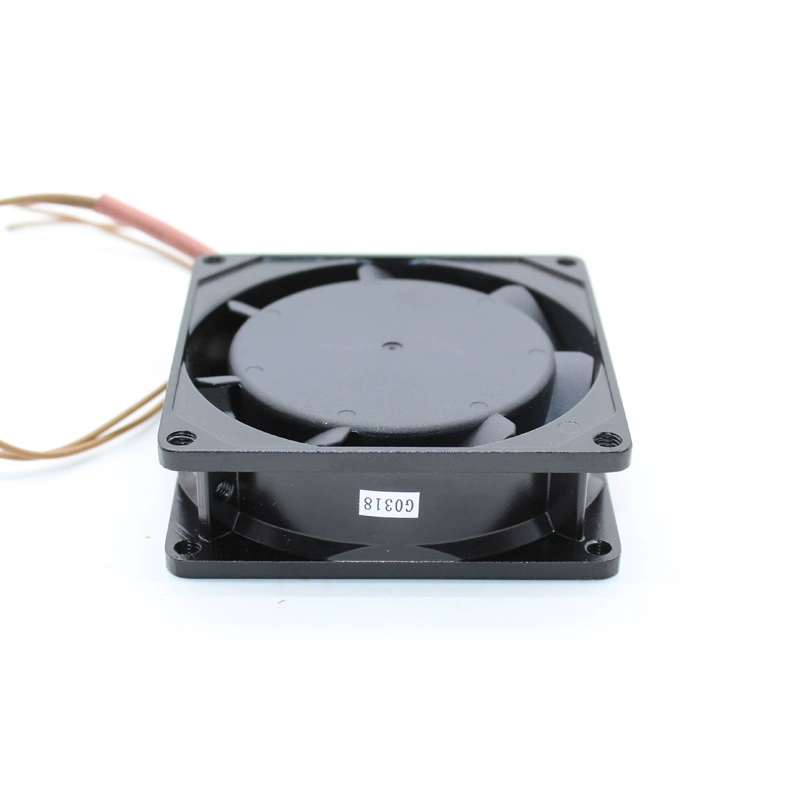

8P-230HB new original Bairui 220V high temperature resistant fan 8025 cooling fan 8cm cm AC
Model Number: 8P-230HB
Manufacturer: Bi-Sonic Technology Corp.
Series: AC 8P Series
Fan Type: AC Brushless Axial Fan
Dimensions L x H x W: 80 mm x 80 mm x 25 mm
Rated Voltage: 230 VAC
Operating Frequency: 50/60 Hz
Rated Current: 0.095 A / 0.085 A
Input Power: 18 W / 16 W
Wiring: 2 Wire Leads or Terminals
Bearing Type: Ball Bearing
Rotational Speed RPM: 2500 RPM / 3000 RPM
Maximum Airflow: 21 CFM / 24 CFM
Maximum Static Pressure: 0.1 in H2O / 0.2 in H2O
Noise Level: 30 dB / 35 dB
Frame Material: Die-cast aluminum housing
Impeller Blade Material: Glass fiber reinforced plastic UL 94V-0 rating
Protection Functions: Impedance protected
Operating Temperature Range: -30°C to +75°C
Weight: 260 grams
The Bi-Sonic 8P-230HB is a robust 80x80x25mm AC axial fan from Bi-Sonic’s AC 8P Series. Operating on 230 VAC at either 50Hz or 60Hz, it consumes between 16 W and 18 W of power with a current draw from 0.085 A to 0.095 A. This fan features durable ball bearings for reliable and long-lasting operation. Its construction includes a die-cast aluminum housing and a glass fiber reinforced plastic impeller, making it suitable for various industrial and electronic applications.
It delivers an airflow of 21 CFM to 24 CFM at speeds between 2500 RPM and 3000 RPM, with a moderate noise level of 30 dB to 35 dB. Equipped with impedance protection, the 8P-230HB is a dependable choice for cooling power supplies, control cabinets, and other AC-powered equipment where a standard size, reliable AC fan is required for effective thermal management.
