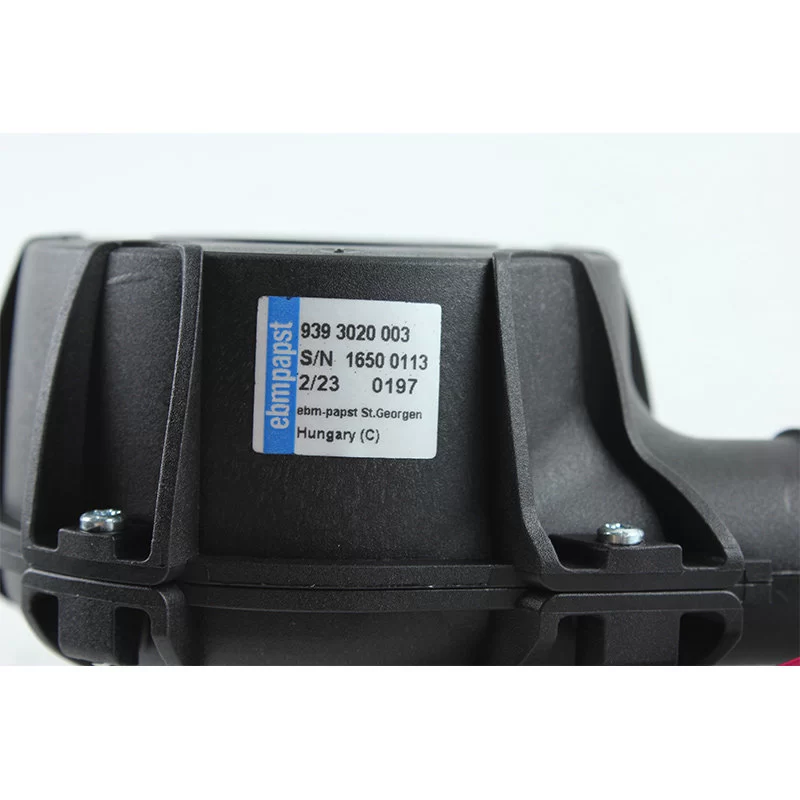

9393020003 ebmpapst vacuum pump fan

Description

The ebmpapst 9393020003 is a high-precision 24 VDC medical-grade centrifugal fan, specifically engineered for highly dynamic pressure requirements in respiratory and vacuum applications. This unit utilizes a 5-blade specialized turbo impeller driven by a high-speed brushless DC motor, reaching an exceptional 18130 RPM to ensure rapid pressure modulation. Its structural integrity is anchored by a medical-grade fiberglass-reinforced plastic housing and a high-performance ball bearing system designed for extreme rotational speeds. The 3-wire configuration provides a Speed Sensor (FG) for closed-loop monitoring, making it a critical component for CPAP machines, ventilators, and medical vacuum pumps where precise air delivery and ultra-fast acceleration are mandatory.

9393020003 Fan Parameters
Manufacturer: ebmpapst
Model Number: 9393020003
Industry Size Code: 4530 (Radial)
Type: DC Centrifugal Fan / Blower
Bearing Type: Ball Bearing
Nominal Voltage: 24 VDC
Voltage Range: 16.0 – 28.0 VDC
Starting Voltage: 16.0 VDC

[Electrical Data]
Input Power: 31.2 W (at peak)
Nominal Current: 1.30 A
Max. Current: 1.80 A
Nominal Speed: 18130 RPM (Tolerance ±5%)
Motor Design: Brushless DC Motor (3-Phase)
Signal Output: FG (Frequency Generator/Tachometer)
Motor Protection: Locked Rotor Protection, Over-temperature Cut-off
Insulation Class: Class E
Insulation Resistance: >10M ohm at 500 VDC
Dielectric Strength: 500 VAC for 1 minute
Termination: 3-Lead wires (UL1061, AWG#26, Red/Black/White)

[Performance & Acoustics]
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Sound Pressure Level: 58.0 dB(A) (at max speed)
Number of Blades: 5
Direction of Rotation: Clockwise (viewed toward intake)
Airflow Direction: Radial (Centrifugal)

[Materials & Construction]
Frame Material: Fiberglass-reinforced plastic (PA6)
Impeller Material: Fiberglass-reinforced plastic (PA6)
Installation Position: Any
Degree of Protection: IP54

[Reliability & Safety Standards]
Min. Ambient Temperature: -20 °C
Max. Ambient Temperature: 50 °C
Life Expectancy (L10): 30,000 hours at 40 °C
Standard Compliance: DIN EN 60601-1 (Medical Electrical Equipment)
Approval Agency: UL, TUV, CE, RoHS

Application
The ebmpapst 9393020003 centrifugal fan is used in CPAP respiratory devices, intensive care ventilators, medical vacuum pumps, and laboratory analysis equipment.
