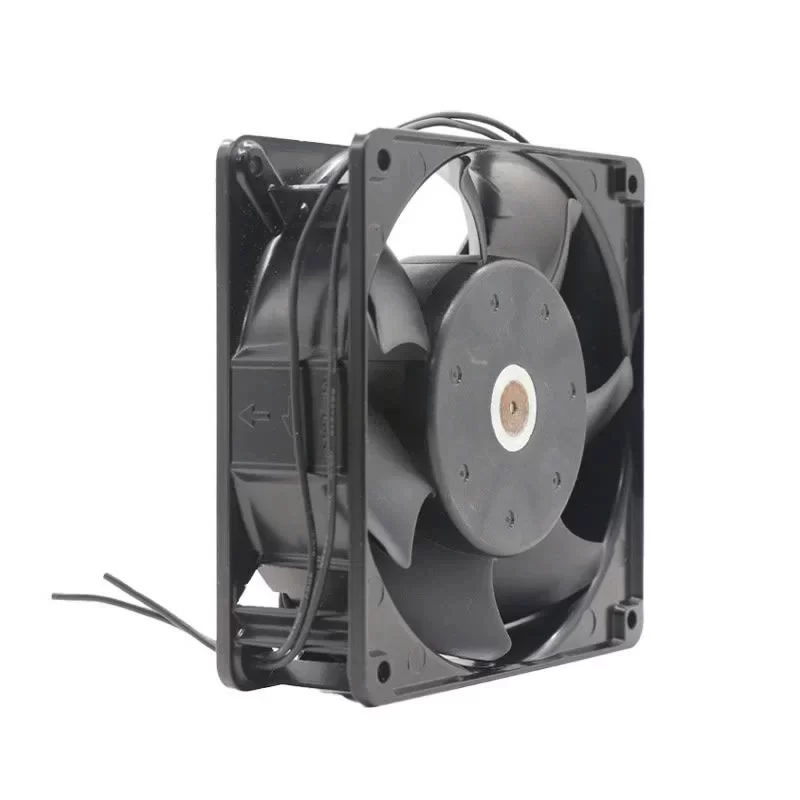

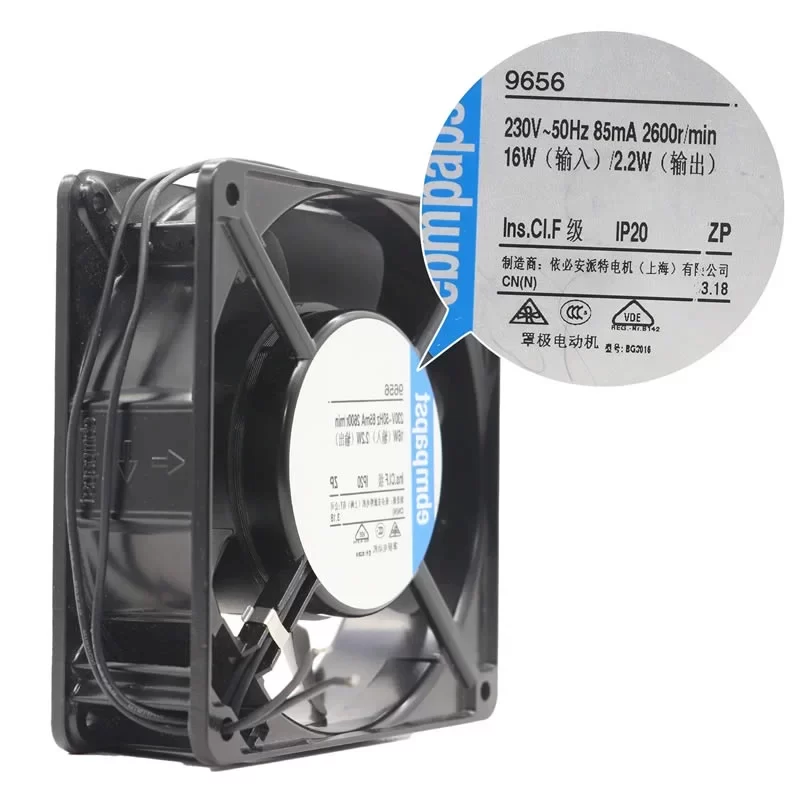

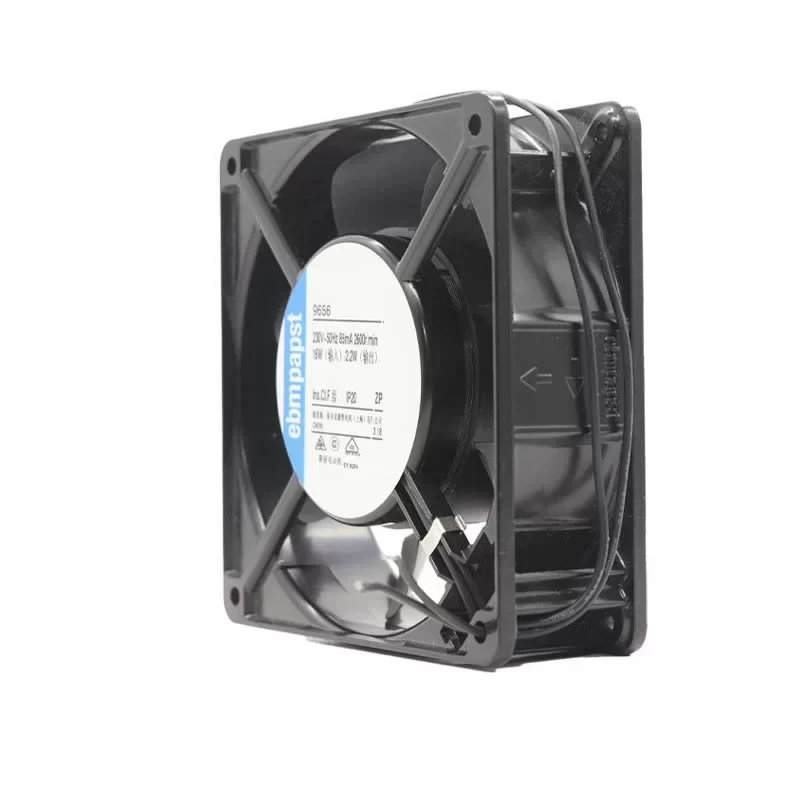

9656 ebmpapst 230V 119mm 12038 16W AC Axial Fan

Description

The ebmpapst 9656 is a high-reliability AC Axial Fan with dimensions of 119 x 119 x 38.7 mm, featuring a robust metal housing and plastic impeller. Operating at a nominal 230V (50Hz), this unit is powered by an efficient AC drive that draws 85 mA and delivers an input power of 16W, resulting in an output of 2.2W. It achieves a nominal speed of 2600 RPM ±10%, providing a free air flow of 146 m³/h against a static pressure of 58 Pa. Designed for extreme versatility, it supports any mounting position and operates within a wide temperature range from -40°C to 75°C. With an IP20 protection rating and a maintenance-free ball bearing system, the 9656 offers a service life of 37,500 hours at 40°C, making it a dependable thermal management solution for industrial cabinets and electronic enclosures.

9656 Fan Parameters
Manufacturer: ebmpapst
Model Number: 9656
Type: AC Axial Fan
Nominal Voltage: 230V
Frequency: 50 Hz
Dimensions: 119.0 x 119.0 x 38.7 mm (12038）
Impeller Size: 119 mm
Weight: Approx. 0.550 kg

[Electrical Data]
Nominal Speed: 2600 RPM ±10%
Input Power: 16 W
Output Power: 2.2 W
Current: 85 mA
Termination: 2 Lead wires (Length 470 mm)
Motor Bearing: Ball bearing

[Performance & Acoustics]
Air Flow: 146 m³/h (at free air flow)
Max. Static Pressure: 58 Pa
Noise: 45 dB(A) (at free air flow)
Rotational Direction: Counter-clockwise (looking at rotor)

[Materials & Construction]
Housing Material: Metal
Impeller Material: Plastic
Airflow Direction: Air exhaust over struts
Mounting Position: Any
Mounting Torque (across flanges):
– Wire outlet corner: 150 Ncm
– Remaining corners: 200 Ncm
Screw Size: ISO 4762 – M4 (degreased)

[Reliability & Protection]
IP Class: IP20
Min. Ambient Temperature (TU min): -40 °C
Max. Ambient Temperature (TU max): 75 °C
Min. Storage Temperature (TL min): -40 °C
Max. Storage Temperature (TL max): 80 °C
Life Expectancy (L10 at 40 °C): 37500 h
Life Expectancy (L10 at TU max): 15000 h
Relative Humidity: 0% – 95%

Application
