Description

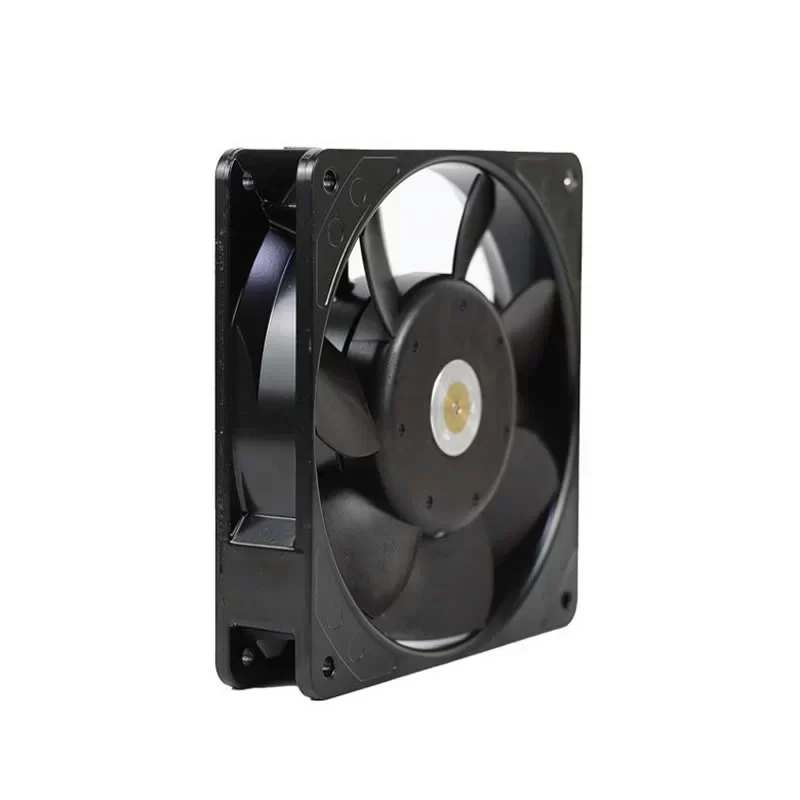

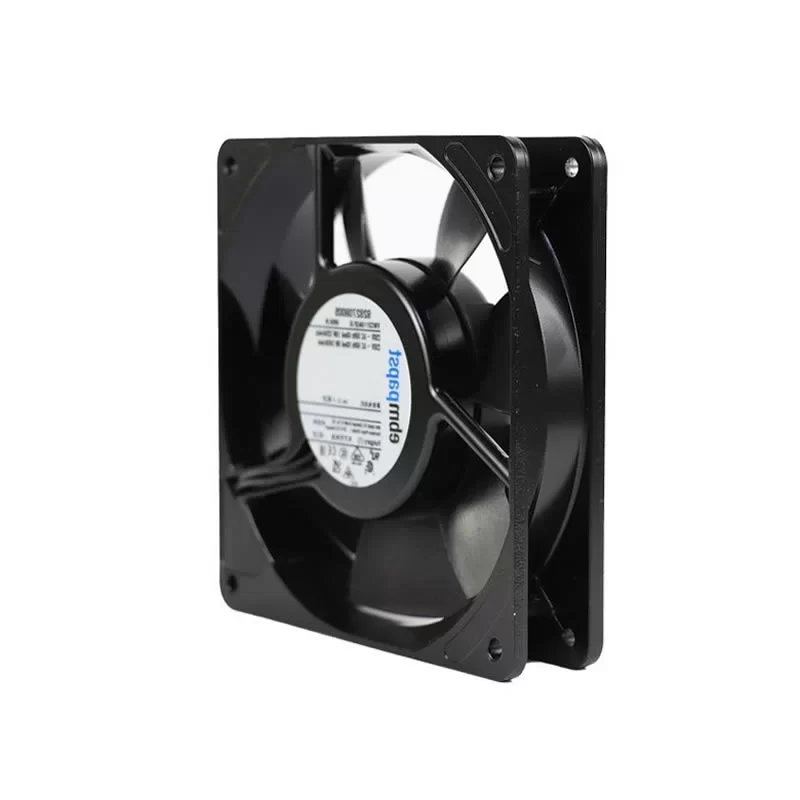

The ebmpapst 9956M is a high-reliability 230VAC axial compact fan with dimensions of 119 x 119 x 25 mm, designed for efficient thermal management in industrial and commercial applications. Part of the 9900 series, this fan features a rugged die-cast aluminum housing and a mineral-reinforced PA plastic impeller with a specialized 7-blade aerodynamic profile to optimize pneumatic efficiency. It operates at a rated speed of 2,250 RPM, delivering a maximum air flow of 61.2 CFM (104 m³/h) while maintaining a low noise emission profile of 35 dB(A). Equipped with a precision ball bearing system, the 9956M is built for continuous duty, offering a service life of 57,500 hours at 40°C. Its slim 25 mm profile and impedance-protected motor make it an ideal choice for space-limited enclosures, power supplies, and HVAC equipment requiring dependable cooling under diverse ambient conditions.
9956M Fan Parameters
Manufacturer: ebmpapst
Model Number: 9956M

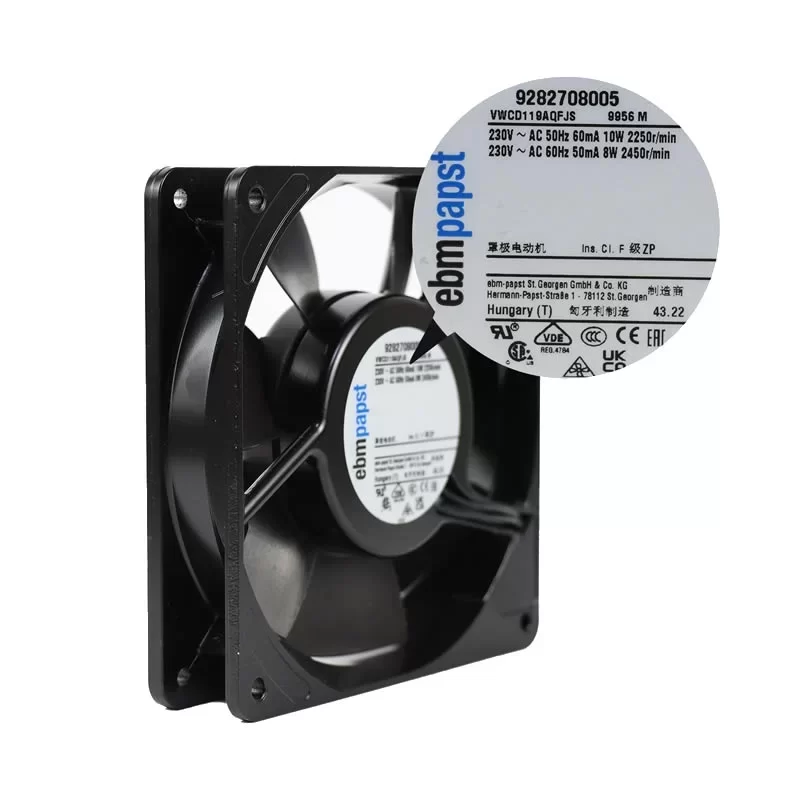

Parts Number: 9282708005
Series: 9900 Series
Dimensions: 119 x 119 x 25 mm
Weight: 325 g
Housing Material: Die-cast Aluminum
Impeller Material: Mineral-reinforced PA Plastic
Bearing Type: Ball Bearing
Number of Blades: 7
Rated Voltage: 230 VAC
Frequency: 50 / 60 Hz
Rated Current: 60 / 50 mA
Rated Input Power: 10 / 8 W
Rated Speed: 2,250 / 2,450 RPM
Max. Air Flow: 61.2 CFM (104 m³/h / 1.73 m³/min)
Max. Static Pressure: 0.16 inH₂O (40 Pa / 4.1 mmH₂O)
Sound Pressure Level: 35 dB(A)
Sound Power Level: 4.7 Bel
Termination: 2 Flat Plugs (2.8 x 0.5 mm)
Direction of Rotation: Counter-clockwise (viewed toward rotor)
Airflow Direction: Exhaust over struts
Operating Temperature: -40 – +80 °C
Storage Temperature: -40 – +80 °C
Expected Life: 57,500 h (at 40 °C) / 22,500 h (at 80 °C)
Motor Protection: Impedance Protected
Safety Approvals: VDE, CSA, UL, CE, RoHS
Application
This industrial AC axial fan is specifically designed for cooling electronic cabinets, switching power supplies, ventilation in household appliances, and laboratory equipment where a compact form factor and high operational reliability are required.
