Description

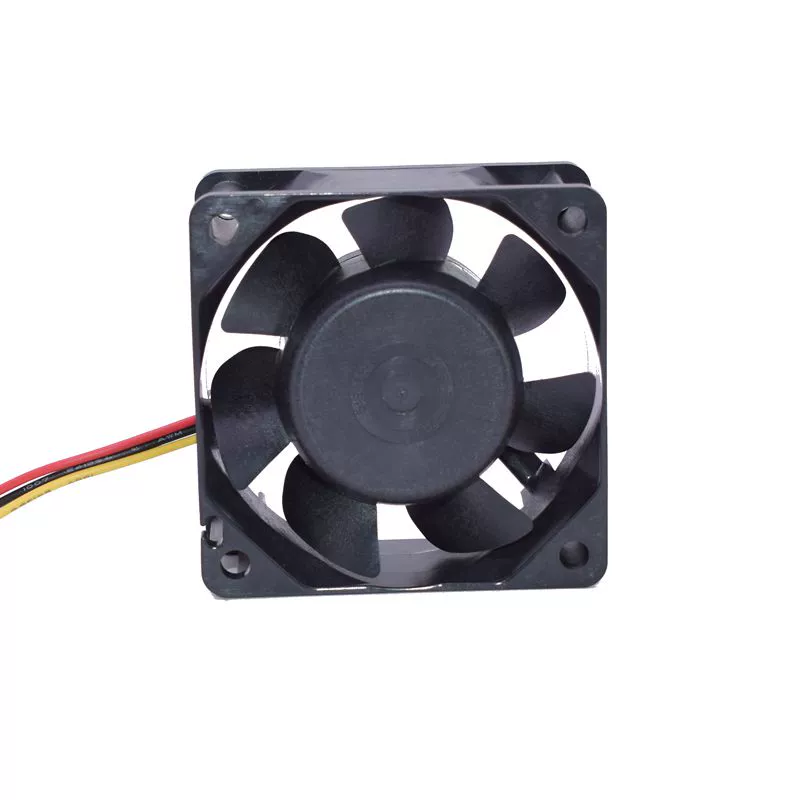

The Sanyo Denki 9A0624G401 is a compact 60x60x25mm DC axial fan designed for efficient thermal management in electronic devices and systems. Operating on a 24V DC power supply, this fan precisely draws 0.13A of current, consuming 3.12W of power. Equipped with 3-wire leads, this model offers reliable cooling performance in various applications.
9A0624G401 Fan Parameters
Model Number: 9A0624G401
Manufacturer: Sanyo Denki
Series: San Ace 60
Type: DC Axial Fan
Dimensions: 60mm x 60mm x 25mm
Rated Voltage: 24 VDC
Voltage Range: 14 VDC to 27.6 VDC
Rated Current: 0.13A
Rated Power: 3.12 W
Bearing Type: Ball Bearing
Life Expectancy: 40,000 hours (at 60°C, rated voltage, continuous operation in free air)
Frame Material: Plastic (UL 94V-0 flammability rating)
Blade Material: Plastic (UL 94V-0 flammability rating)
Termination: 3 Wire Leads (with pulse sensor/tachometer output)
Features: Locked Rotor Burnout Protection
Operating Temperature: -10°C to +70°C
Safety Standards: UL, TUV, CSA
Application: Servers, networking equipment, power supplies, industrial PCs, control panels, compact electronic enclosures.
