Description

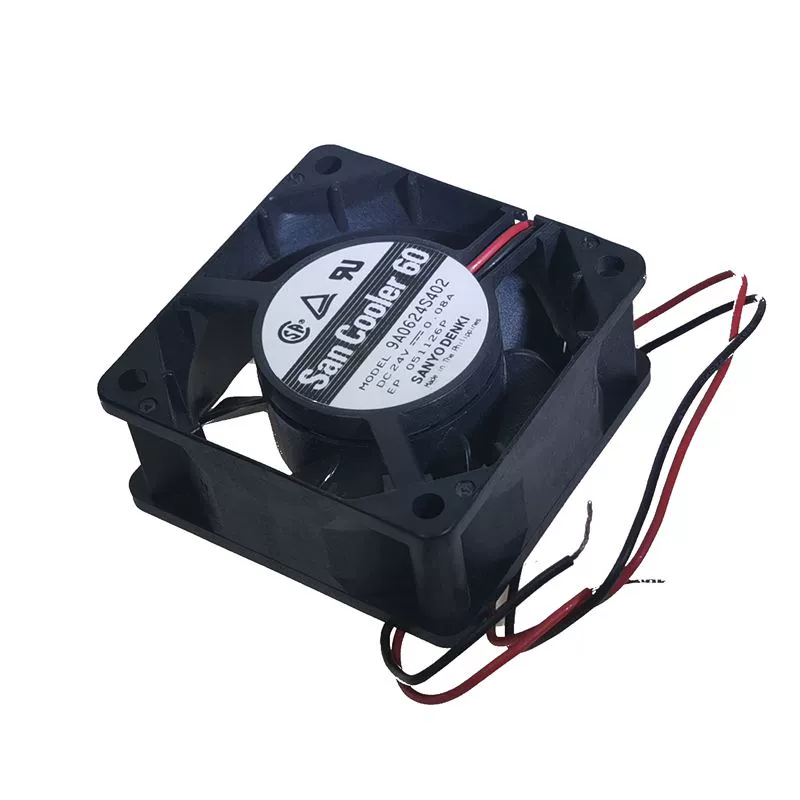

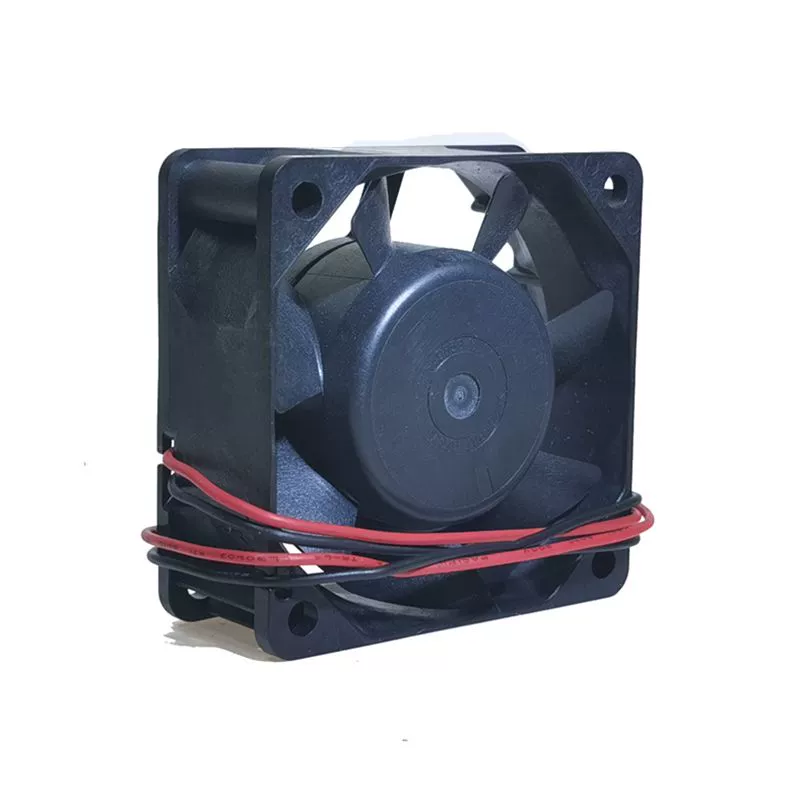

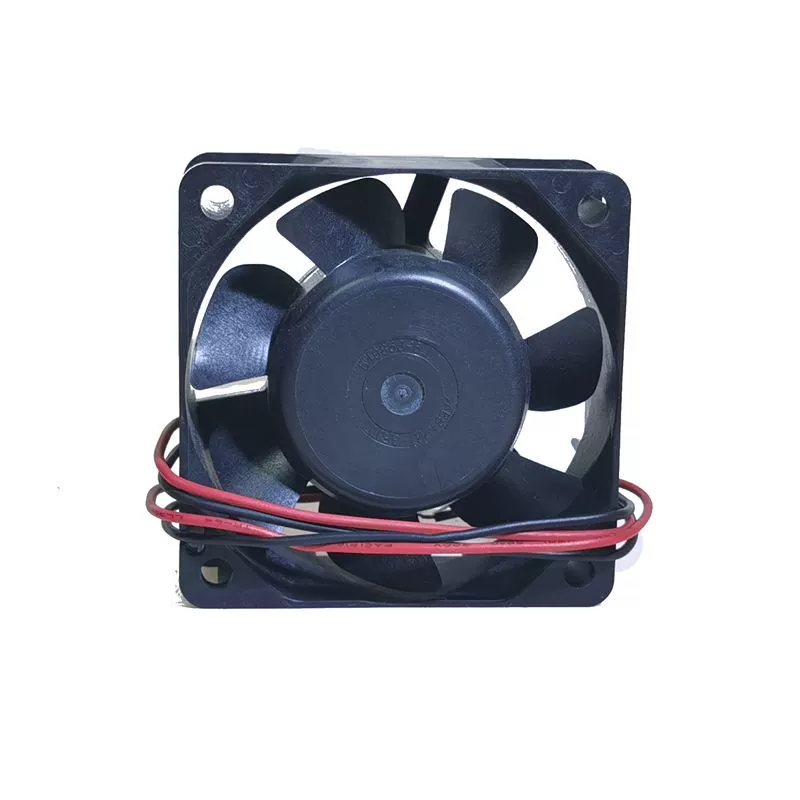

The Sanyo Denki 9A0624S402 is a 60x60x25mm DC axial fan designed for effective heat dissipation in compact electronic devices and equipment. Operating on 24 VDC within a voltage range of 12–27.6 VDC, this fan draws 0.080A of current, consuming 1.92 W of power. It achieves a rotational speed of 4600 RPM, delivering an airflow of 0.644 m³/min (23.0 CFM or 38.64 m³/h). With a low noise level of 33.0 dB(A) and utilizing ball bearings, it ensures reliable and quiet operation with an expected life of 40,000 hours at 60°C. This model features 2-wire leads for connection and includes locked rotor protection. It is compliant with UL, CSA, and TUV certifications, making it suitable for a wide array of applications in servers, power supplies, and general electronic cooling.
9A0624S402 Fan Parameters
Model Number: 9A0624S402
Manufacturer: Sanyo Denki
Series: San Ace 60
Type: DC Axial Fan (Tubeaxial)
Dimensions: 60mm x 60mm x 25mm
Rated Voltage: 24 VDC
Operating Voltage Range: 12–27.6 VDC
Rated Current: 0.080A
Power Consumption: 1.92 W
Speed: 4600 RPM
Airflow: 0.644 m³/min (23.0 CFM or 38.64 m³/h)
Static Pressure: 56.8 Pa (0.228 in H2O)
Noise Level: 33.0 dB(A)
Bearing Type: Ball Bearing
Housing Material: Plastic
Blade Material: Plastic
Termination: 2-Wire Leads
Expected Life: 40,000 hours @ 60°C
Operating Temperature: -20°C to +70°C
Weight: 80 g
Protection Features: Locked Rotor Protection
Certifications: CSA, TUV, UL
Application: Servers, ICT equipment, power supplies, industrial control systems, general electronics cooling.
