Description

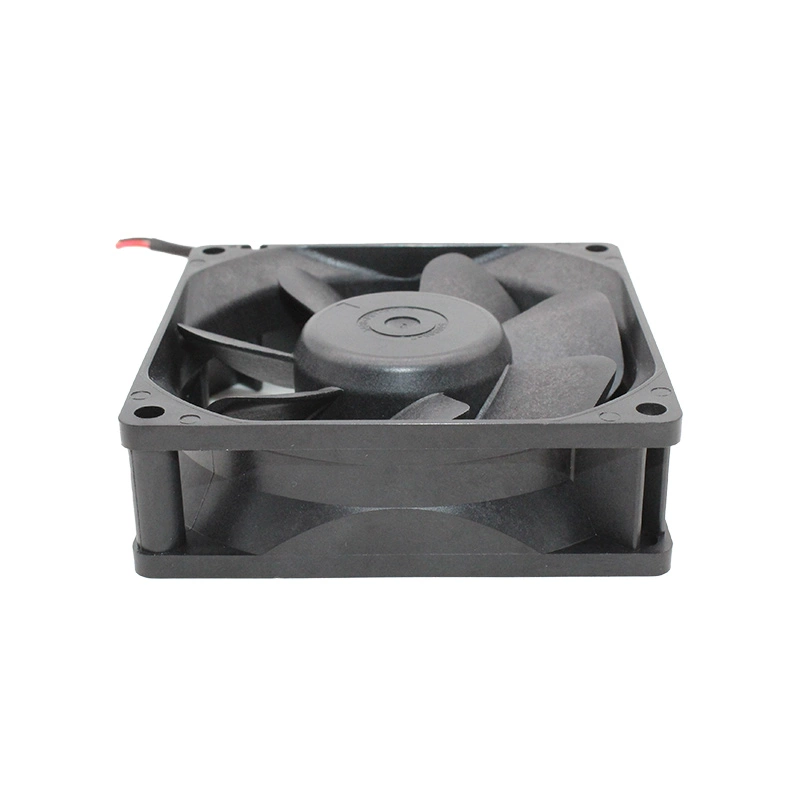

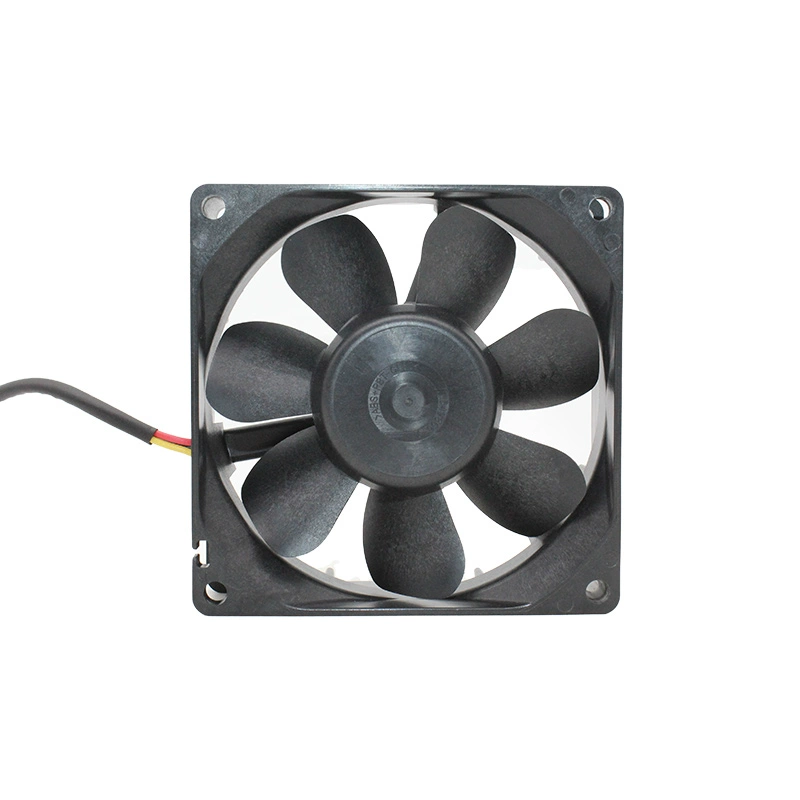

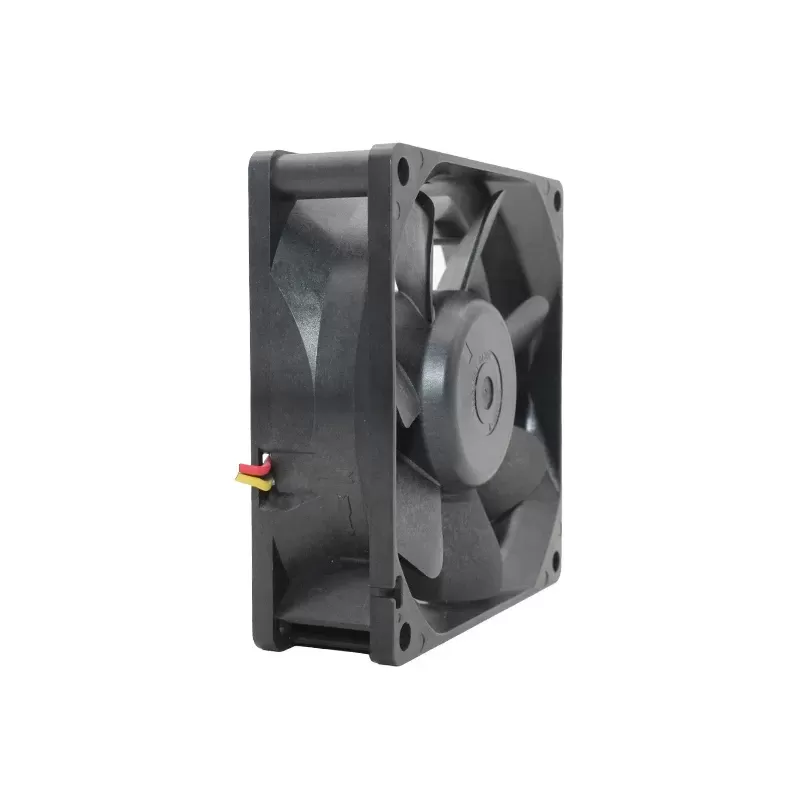

9A0812S401 Sanyo 8025 fan 12V 0.18A San Cooler 80 switching frequency converter fan
Model Number: 9A0812S401
Manufacturer: Sanyo Denki
Series: San Ace 80
Fan Type: DC Brushless Axial Fan
Dimensions L x H x W: 80 mm x 80 mm x 25 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 6 VDC to 13.8 VDC
Rated Current: 0.18 A
Input Power: 2.16 W
Wiring: 3 Wire Leads (Red: +, Black: -, Yellow: Pulse Sensor)
Bearing Type: Ball Bearing
Rotational Speed RPM: 3400 RPM
Maximum Airflow: 42.4 CFM or 1.2 m³/min
Maximum Static Pressure: 0.193 in H2O or 48 Pa
Noise Level: 34 dB
Frame Material: Plastic
Impeller Blade Material: Plastic
Sensor Type: Pulse Sensor
Motor Protection: Locked Rotor Burnout Protection, Reverse Polarity Protection
Operating Temperature Range: -20°C to +70°C
Expected Life L10: 40,000 Hours at 60°C or 70,000 Hours at 40°C
Mass: 90 g
The Sanyo Denki 9A0812S401 is a reliable 80x80x25mm DC axial fan from the San Ace 80 series. Operating on 12VDC, it consumes 2.16W of power with a current draw of 0.18A. This fan utilizes durable ball bearings for a long operational life of 40,000 hours at 60°C. It delivers 42.4 CFM of airflow at 3400 RPM, generating a static pressure of 0.193 in H2O, with a moderate noise level of 34 dB. The 3-wire connection provides a pulse sensor for real-time speed monitoring. With essential locked rotor and reverse polarity protection, this fan is a versatile and effective thermal management solution for a wide range of applications, including desktop PCs, small server cases, power supplies, and various industrial electronics.
