Description

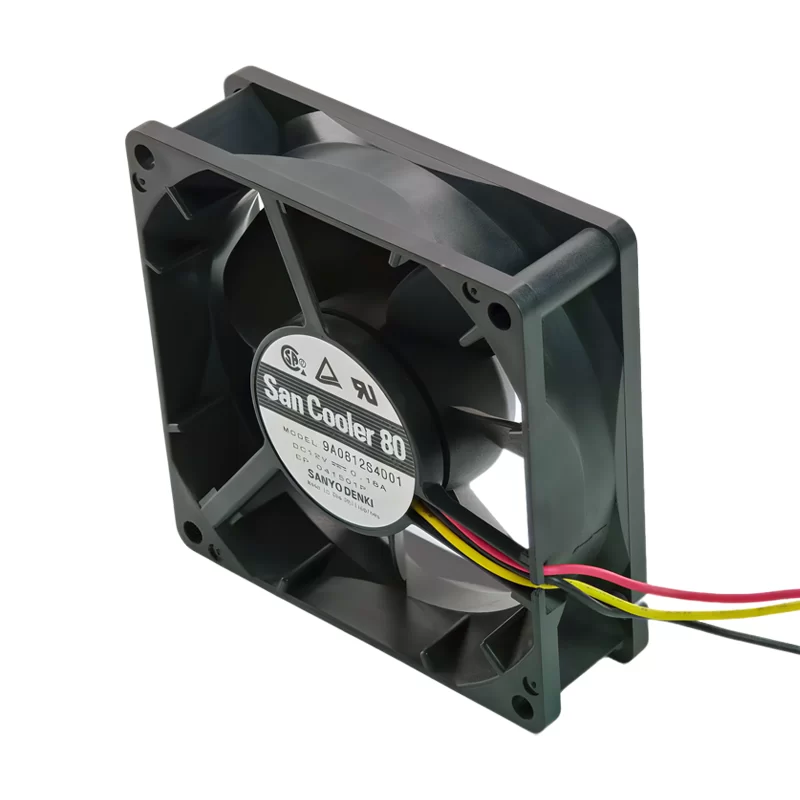

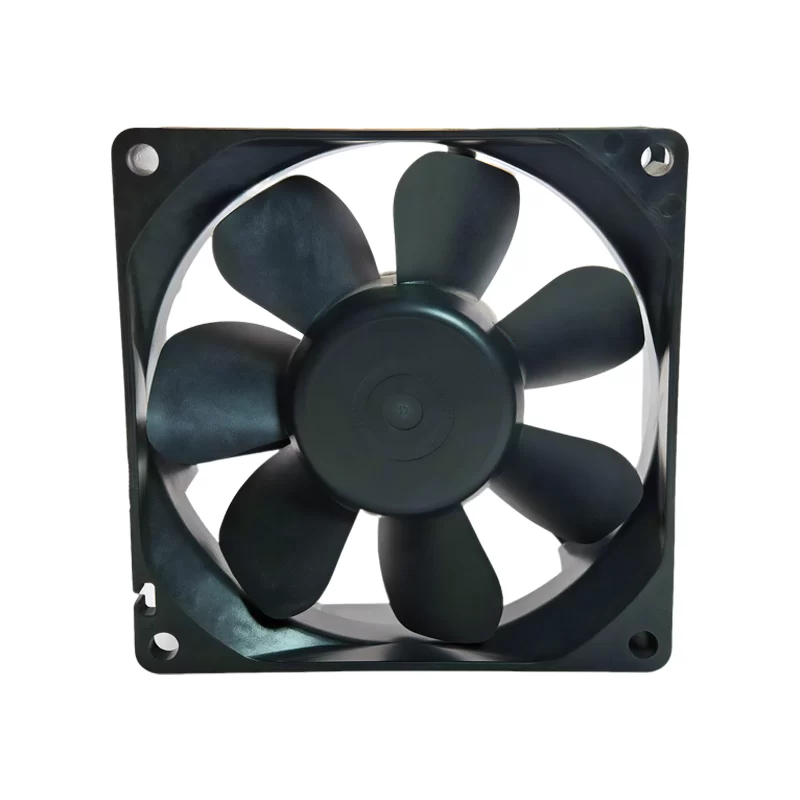

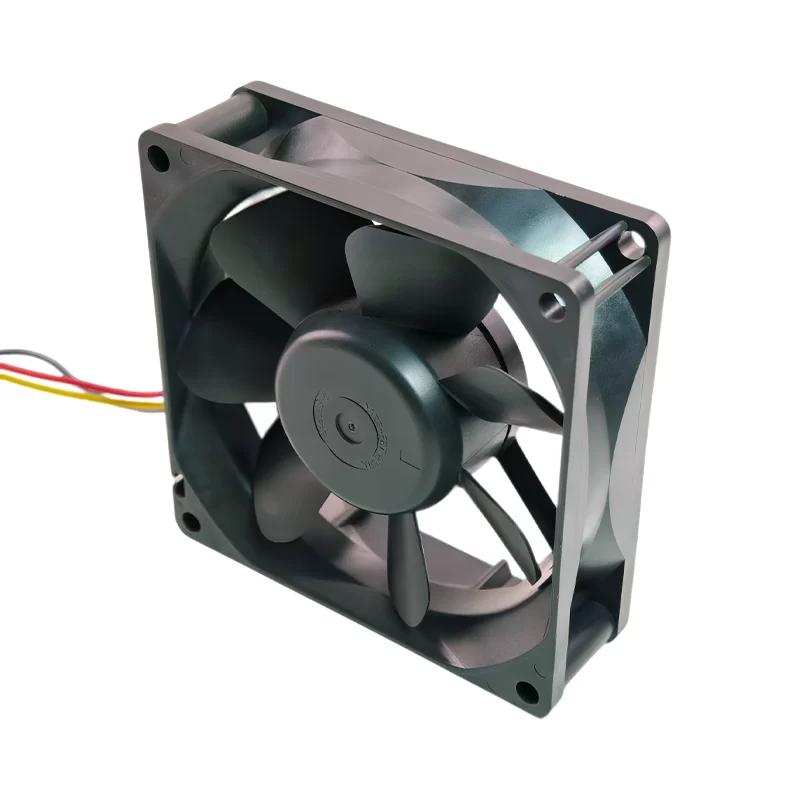

The Sanyo Denki SanCooler80 9A0812S4D01 is a standard 12VDC axial fan with dimensions of 80x80x25mm. It is designed for general-purpose cooling, providing 42.4 CFM (72 m³/h) of airflow and generating 4.8 mmH₂O (47.1 Pa) of static pressure. Operating at 3400 RPM, the fan consumes 2.16 W of power and is built with durable plastic materials. It uses ball bearings for a long and reliable lifespan. Its 3-wire termination provides a dedicated tachometer signal for monitoring fan speed. It is commonly used for cooling power supplies, industrial control systems, and electronics enclosures.
9A0812S4D01 Fan Parameters
Manufacturer: Sanyo Denki
Series: SanCooler80
Model: 9A0812S4D01
Fan Type: DC Axial Fan
Dimensions: 80 x 80 x 25 mm
Rated Voltage: 12 VDC
Current Rating: 0.18 A
Power Consumption: 2.16 W
Airflow: 42.4 CFM (72 m³/h)
Static Pressure: 4.8 mmH₂O (47.1 Pa)
Speed: 3400 RPM
Noise Level: 34 dB(A)
Bearing Type: Ball Bearing
Termination: 3 Wire Leads
Features: Speed Sensor (Tachometer/FG signal)
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -20 °C ~ 70 °C
Weight: 90 g
Application: This Sanyo Denki DC axial fan is suitable for cooling power supplies, industrial control systems, and electronics enclosures.
