Description

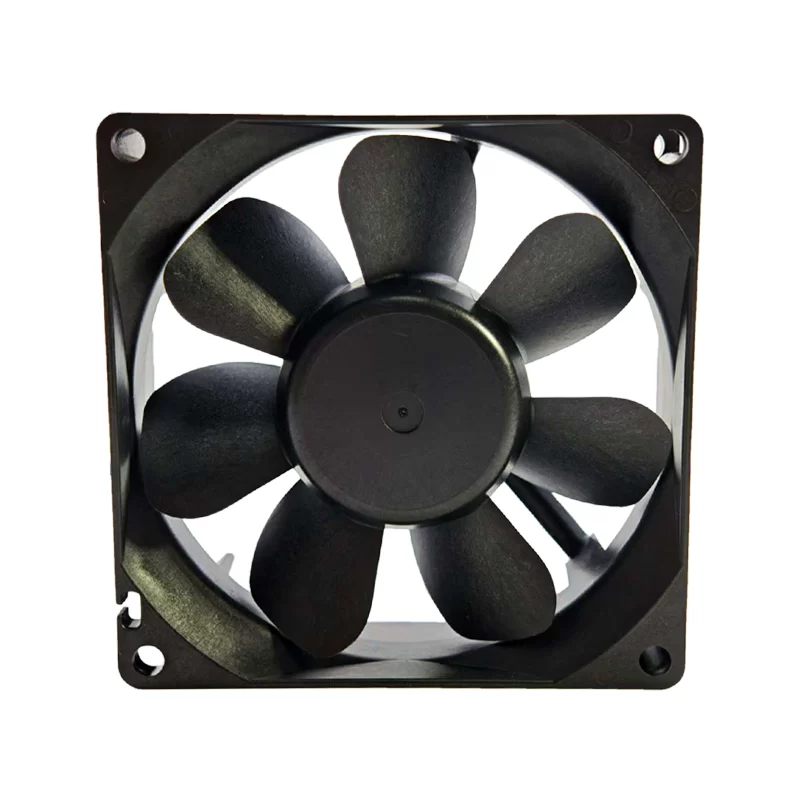

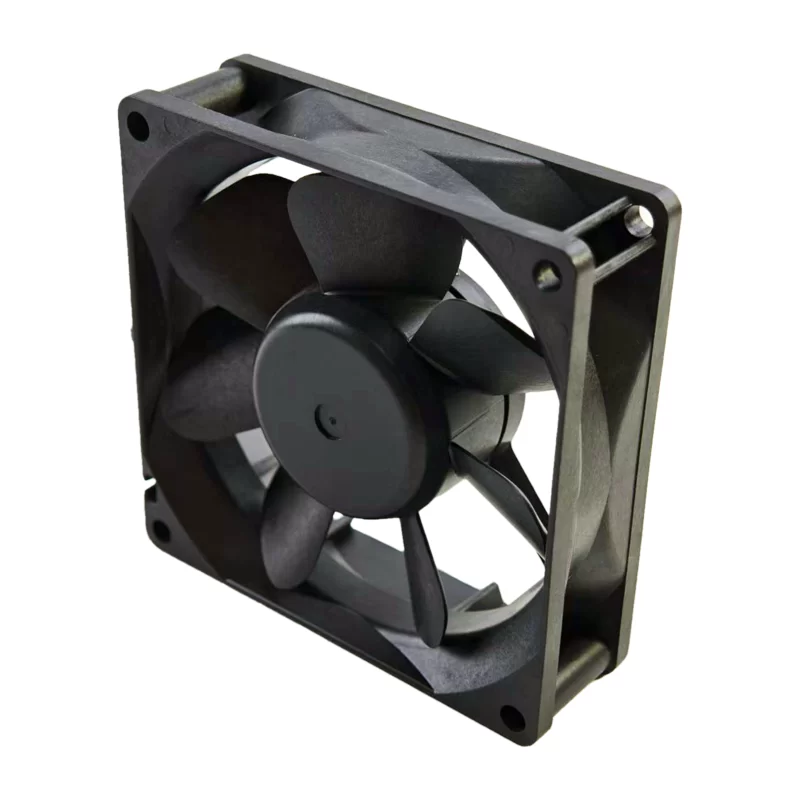

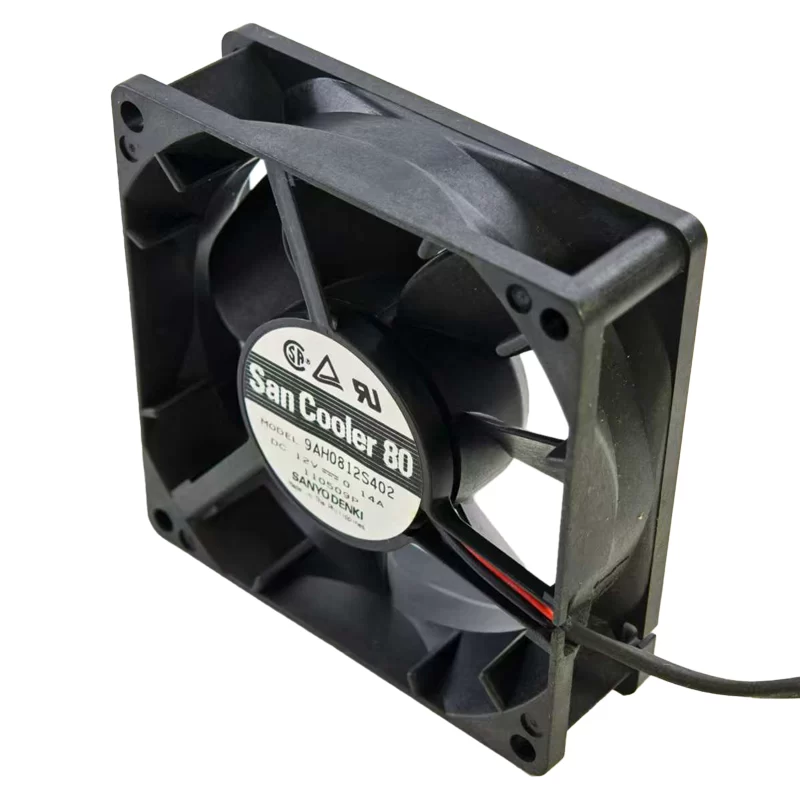

The Sanyo Denki 9AH0812S402 is a standard 12VDC axial fan with dimensions of 80 x 80 x 25 mm. It is designed to provide effective cooling with a balanced performance profile. Operating at 2900 RPM, the fan provides 36.37 CFM (61.8 m³/h) of airflow and has a low noise level of 29 dB(A). It is built with plastic materials and connects via two wire leads.
9AH0812S402 Fan Parameters
Manufacturer: Sanyo Denki
Model: 9AH0812S402
Fan Type: DC Axial Fan
Dimensions: 80 x 80 x 25 mm
Rated Voltage: 12 VDC
Current Rating: 0.14 A
Power Consumption: 1.68 W
Airflow: 36.37 CFM (61.8 m³/h)
Speed: 2900 RPM
Noise Level: 29 dB(A)
Termination: Two Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Application: The 9AH0812S402 DC axial fan is suitable for general-purpose cooling in electronic enclosures, small appliances, and consumer electronics.
