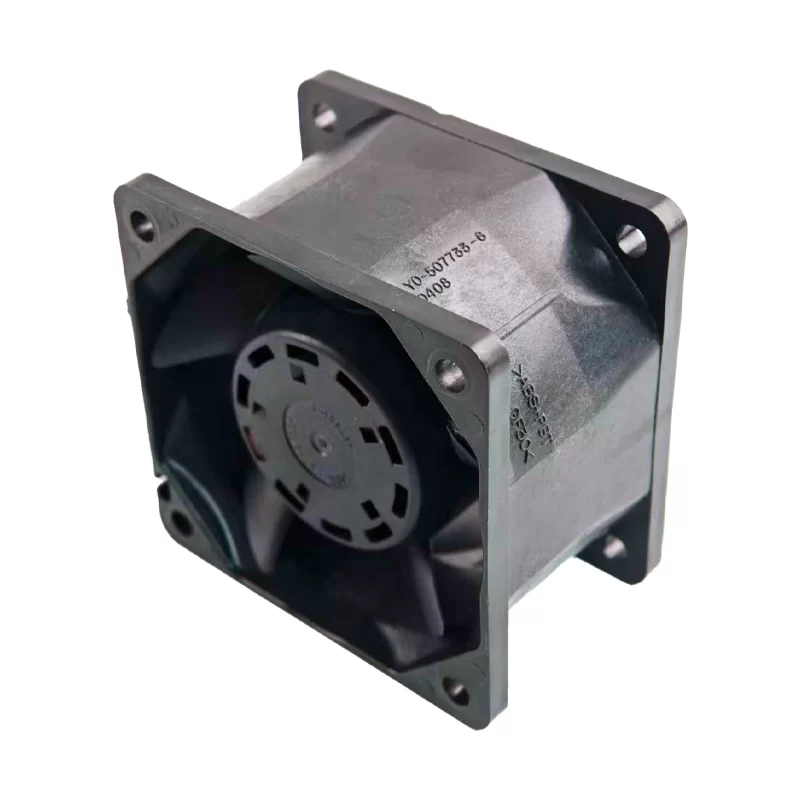

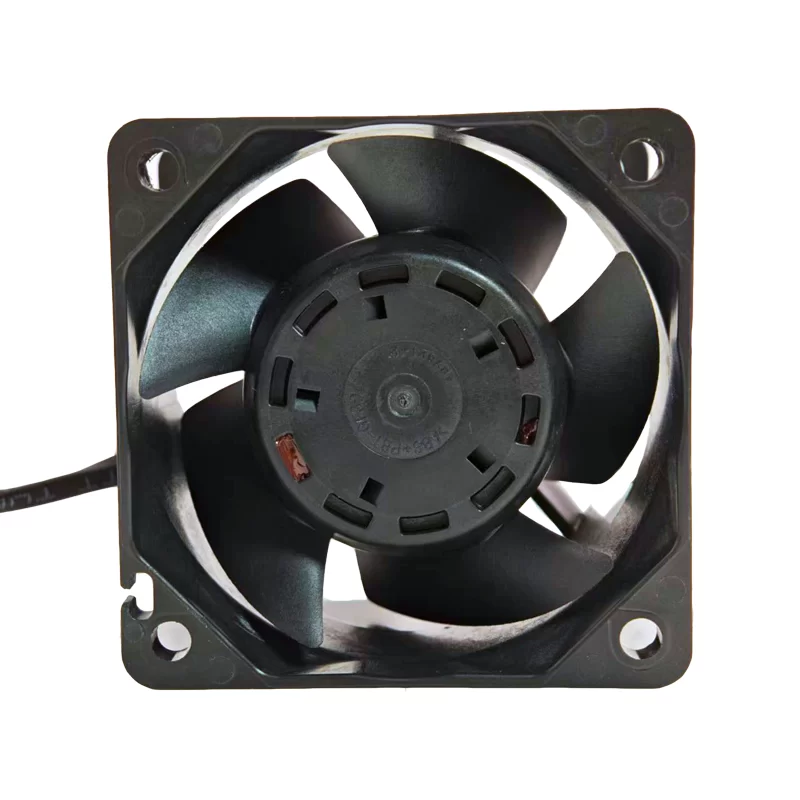

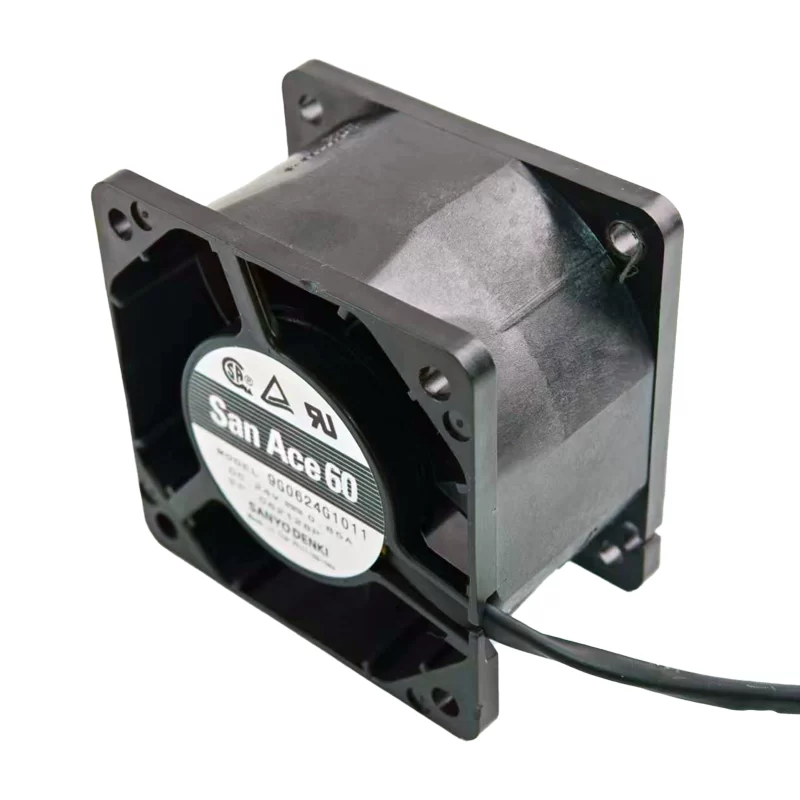

9G0624G1011 Sanyo Denki 24V 0.85A 60mm 6038 DC Axial Fan

Description

The Sanyo Denki 9G0624G1011 is a high-performance 24 VDC industrial DC axial fan with dimensions of 60 x 60 x 38 mm, purpose-built to deliver elite-level thermal cooling in high-resistance airflow paths. This unit features a heavy-duty brushless DC motor capable of sustaining a massive 20.4 W power output to drive its specialized 5-blade impeller at a consistent 11800 RPM. Engineered specifically to combat extreme backpressure, it generates a formidable 1.747 inH₂O static pressure, making it an ideal solution for pushing air through densely obstructed heatsinks and narrow chassis. The mechanical design relies on a precision-shielded dual ball bearing system and a fiberglass-reinforced PBT housing to ensure 40,000 hours of continuous operation at a 60 °C ambient temperature. Equipped with a standard 3-wire FG tachometer for real-time speed monitoring, this fan is a critical component for high-density blade servers, telecom rectifiers, and high-wattage industrial power supplies where maximum air density and reliability are non-negotiable.

9G0624G1011 Fan Parameters
Manufacturer: Sanyo Denki
Model Number: 9G0624G1011
Series: San Ace 60 (9G High Static Pressure)
Industry Size Code: 6038
Type: DC Axial Fan
Bearing Type: Dual Ball Bearing
Nominal Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Starting Voltage: 14.0 VDC
Dimensions: 60 x 60 x 38 mm
Weight: 110 g

[Electrical Data]
Input Power: 20.4 W
Nominal Current: 0.85 A
Max. Current: 1.10 A
Nominal Speed: 11800 RPM (Tolerance ±10%)
Motor Design: Brushless DC Motor
Signal Output: FG (Frequency Generator/Tachometer)
Motor Protection: Auto Restart, Polarity Protection, Locked Rotor Protection
Insulation Class: Class E
Insulation Resistance: >10M ohm at 500 VDC
Dielectric Strength: 500 VAC for 1 minute
Termination: 3-Lead wires

[Performance & Acoustics]
Max. Air Flow: 65.0 CFM (110.4 m³/h / 1.84 m³/min)
Max. Static Pressure: 44.4 mmH₂O (435.0 Pa / 1.747 inH₂O)
Sound Pressure Level: 58.0 dB(A) (Measured at 1 meter)
Number of Blades: 5
Direction of Rotation: Counter-clockwise (viewed toward impeller)
Airflow Direction: Intake over struts

[Materials & Construction]
Frame Material: Thermoplastic PBT (Black, UL94V-0)
Impeller Material: Thermoplastic PBT (Black, UL94V-0)
Installation Position: Any
Degree of Protection: IP54

[Reliability & Safety Standards]
Min. Ambient Temperature: -20 °C
Max. Ambient Temperature: 70 °C
Life Expectancy (L10): 40,000 hours at 60 °C (70,000 hours at 40 °C)
Standard Compliance: UL 507, CSA C22.2, EN 60950-1
Approval Agency: UL, TUV, CSA, CE, RoHS

Application
The Sanyo Denki 9G0624G1011 axial fan is used in high-density blade servers, cloud storage arrays, industrial power rectifiers, telecommunications base stations, and high-frequency medical equipment.
