Description

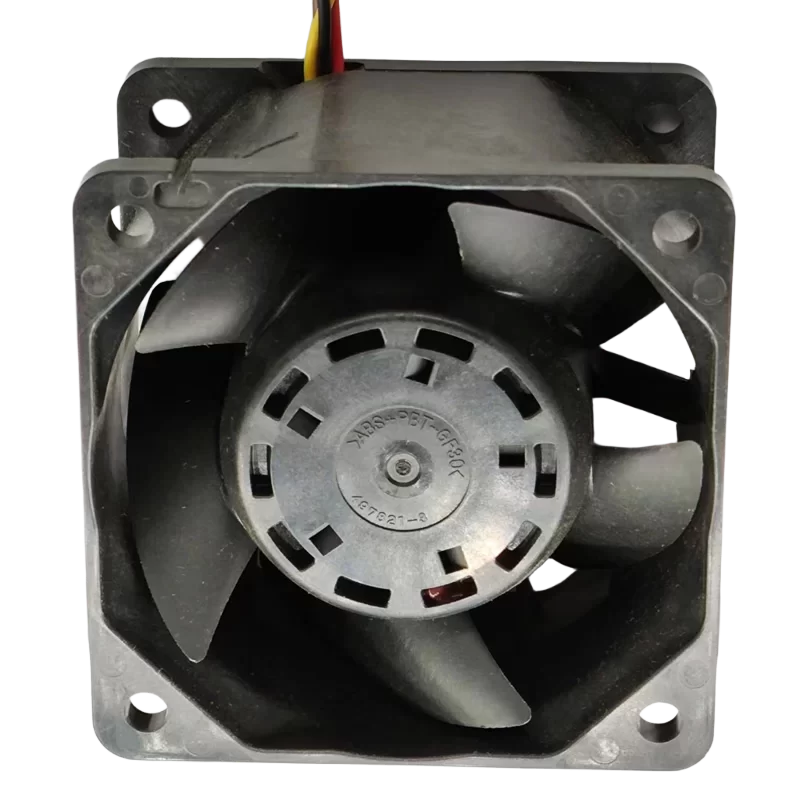

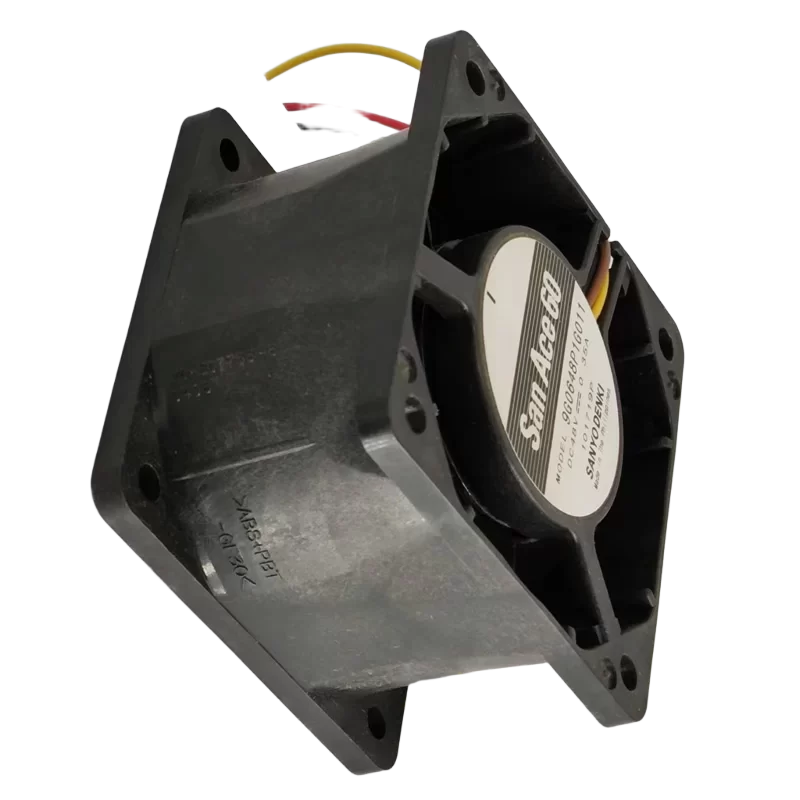

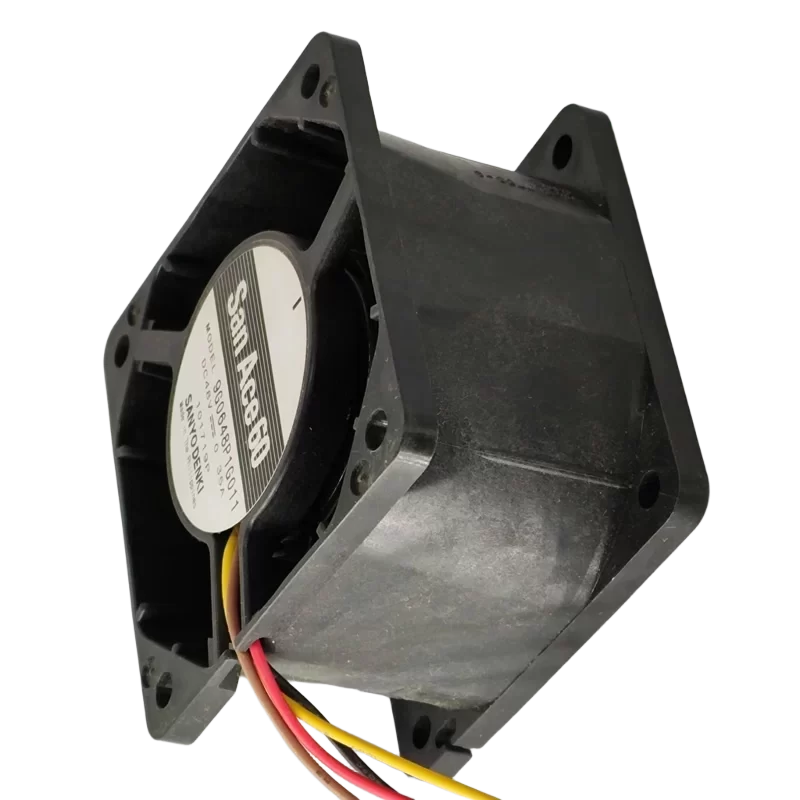

The Sanyo Denki 9G0648P1G011 is a high-performance 48 VDC DC Axial Fan measuring 60×60×38 mm. Operating within a wide voltage range of 28 to 55.2 VDC, this fan achieves an exceptional maximum airflow of 110.4 m3/h and a high static pressure of 435 Pa at a maximum speed of 11,800 RPM. Drawing a rated current of 0.35 A (16.8 W), it features a durable Ball Bearing system and a 4-wire output that includes both PWM speed control and a Tachometer (Pulse) signal for precise, controlled thermal management.
9G0648P1G011 Fan Parameters
Model: 9G0648P1G011
Manufacturer: Sanyo Denki
Fan Type: DC Axial Fan
Dimensions: 60×60×38 mm
Nominal Voltage: 48 VDC
Operating Voltage Range: 28 to 55.2 VDC
Rated Current: 0.35 A
Rated Power: 16.8 W
Rated Speed: 11,800 RPM
Airflow: 110.4 m3/h
Static Pressure: 435 Pa
Noise Level: 58 dBA
Bearing System: Ball Bearing
Frame Material: Plastic
Impeller Material: Plastic
Termination Type: 4 Wire Leads (PWM Control, Pulse Sensor)
Operating Temperature: −20∘C to +70∘C
Motor Protection: Locked Rotor Burnout Protection, Reverse Polarity Protection
Application
The 9G0648P1G011 is designed for high-end server equipment, telecommunications hardware, power supplies, and industrial systems where high static pressure and controlled, high-flow cooling are essential within a compact 60 mm form factor.
