Description

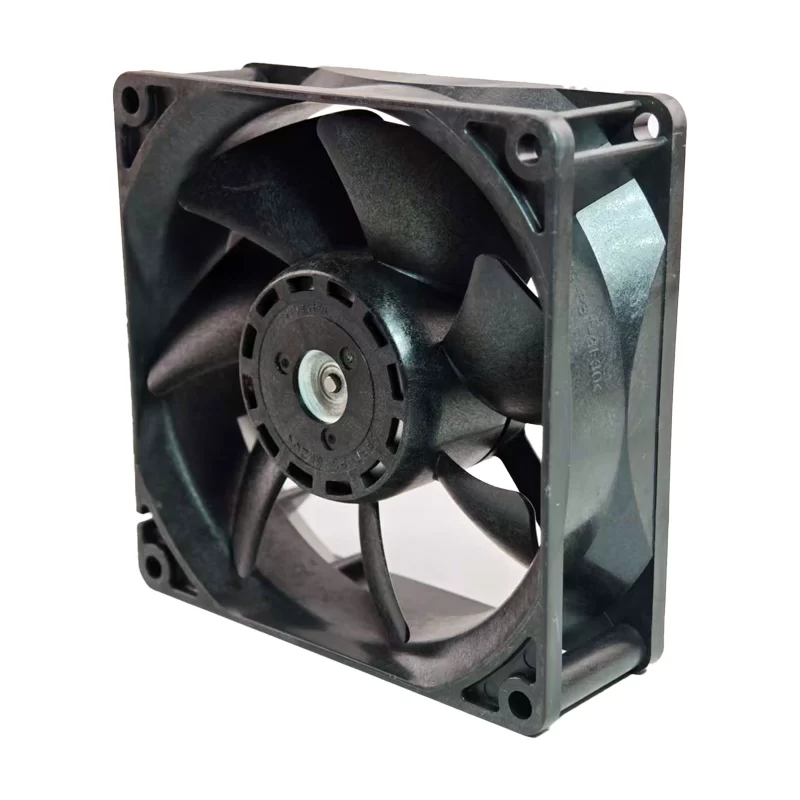

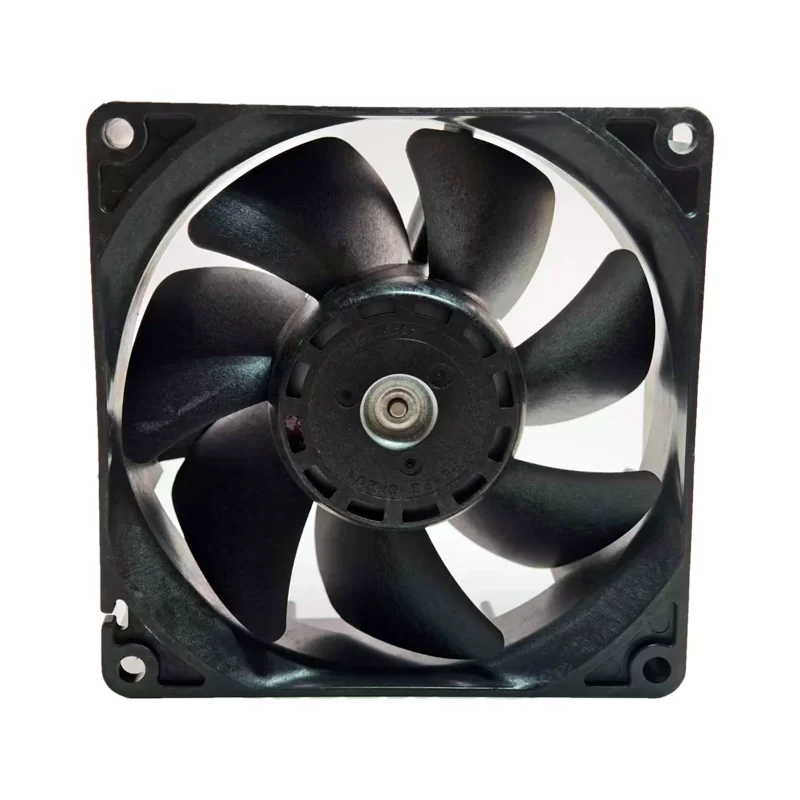

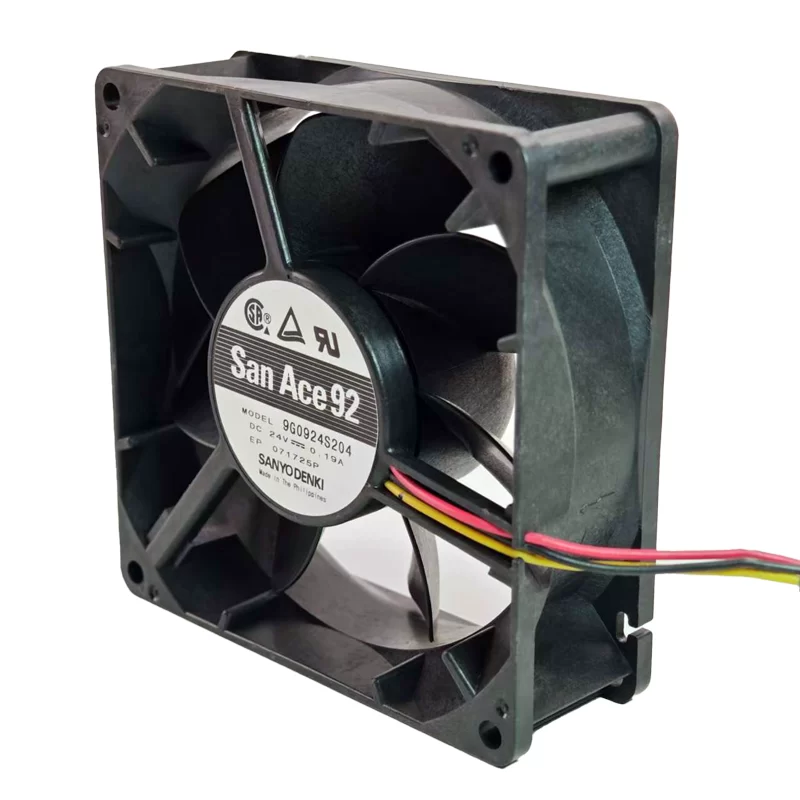

The Sanyo Denki San Ace 9G0924S204 is a reliable 24V DC axial cooling fan measuring 92mm x 92mm x 25mm. Operating at a rated current of 0.19A (4.56W), this fan is engineered for effective thermal management in electronic equipment. It achieves a rotational speed of 3200 RPM, delivering 63.5 CFM of airflow with a static pressure of 0.268 inch-H2O (66.7 Pa). Its noise output is 36.0 dBA, offering a good balance between performance and quiet operation. The fan is equipped with ball bearings for a long operational life of 60,000 hours at 60°C. Connectivity is typically via 3-wire leads, which include a pulse sensor for speed monitoring. Integrated features also include auto-restart and polarity protection, ensuring dependable performance.
Model Number: 9G0924S204
Manufacturer: Sanyo Denki
Series: San Ace92
Type: DC Axial Cooling Fan
Dimensions: 92mm x 92mm x 25mm
Rated Voltage: 24V DC
Operating Voltage: 14.0V to 27.6V DC
Rated Current: 0.19A
Rated Power: 4.56W
Speed: 3200 RPM
Airflow: 63.5 CFM / 1.80 m³/min
Static Pressure: 0.268 inch-H2O / 66.7 Pa
Noise Level: 36.0 dBA
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 60,000 hours at 60°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Pulse Sensor (Tachometer), Auto Restart, Polarity Protection
