Description

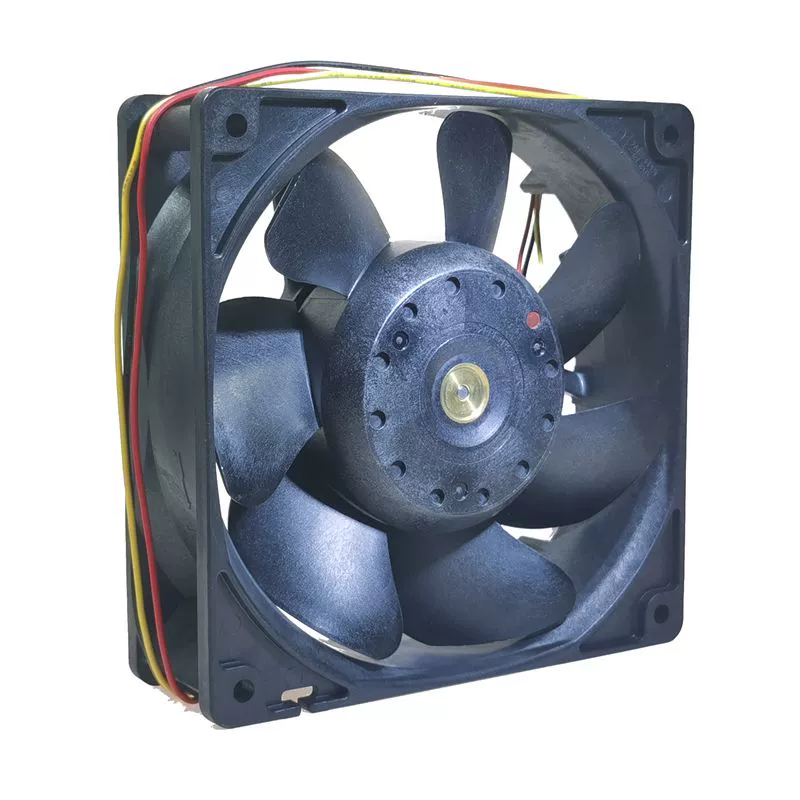

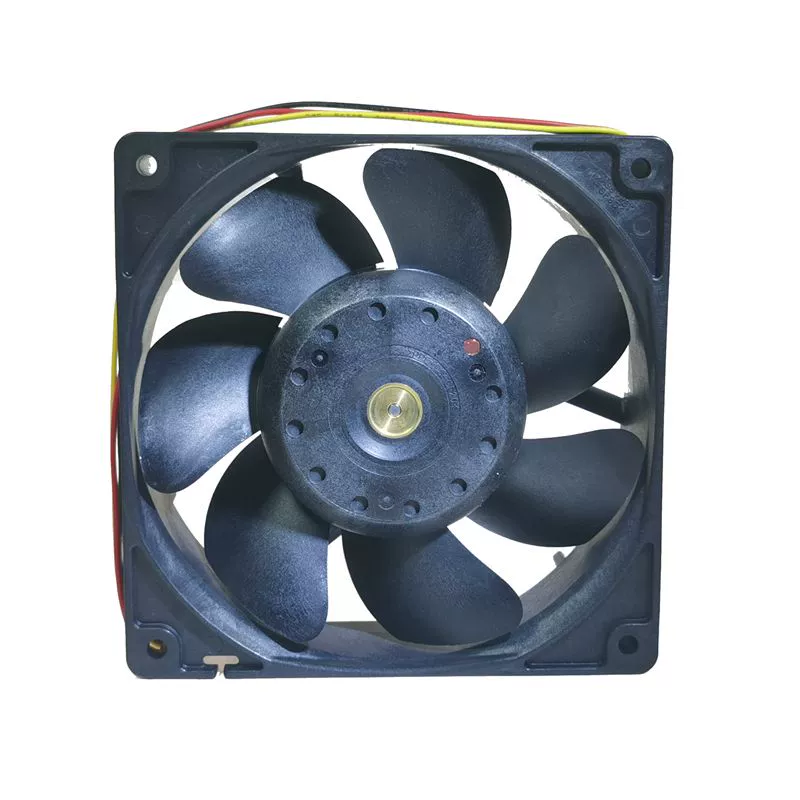

The Sanyo Denki 9G1224G101 is a powerful 120x120x38mm DC axial fan engineered for robust cooling performance in various electronic and industrial equipment. Operating on 24V DC within a voltage range of 20.4–27.6V DC, this fan draws 0.50A of current, consuming 12.0W of power. It achieves a high rotational speed of 3600min-1, delivering a substantial airflow of 137 CFM (equivalent to approximately 3.88 m³/min or 232.8 m³/h). With a noise level of 49 dB[A] and a weight of 370g, this model is designed for reliable and efficient operation in demanding environments.
9G1224G101 Fan Parameters
Model Number: 9G1224G101
Manufacturer: Sanyo Denki
Series: San Ace 120G
Type: DC Axial Fan
Dimensions: 120mm x 120mm x 38mm
Rated Voltage: 24 VDC
Operating Voltage Range: 20.4–27.6 VDC
Rated Current: 0.50A
Power Consumption: 12.0 W
Speed: 3600 min-1
Airflow: 137 CFM (3.88 m³/min or 232.8 m³/h)
Static Pressure: 135 Pa (0.542 in H2O)
Noise Level: 49 dB[A]
Weight: 370 g
Bearing Type: Ball Bearing
Housing Material: Plastic
Blade Material: Plastic
Termination: 3-Wire Leads (with Speed Sensor/Tachometer)
Expected Life: 40,000 hours @ 60°C (70,000 hours @ 40°C)
Operating Temperature: -20°C to +70°C
Certifications: UL, CSA, TUV
Application: Servers, ICT equipment, power supplies, industrial control systems, general electronics cooling.
