Description

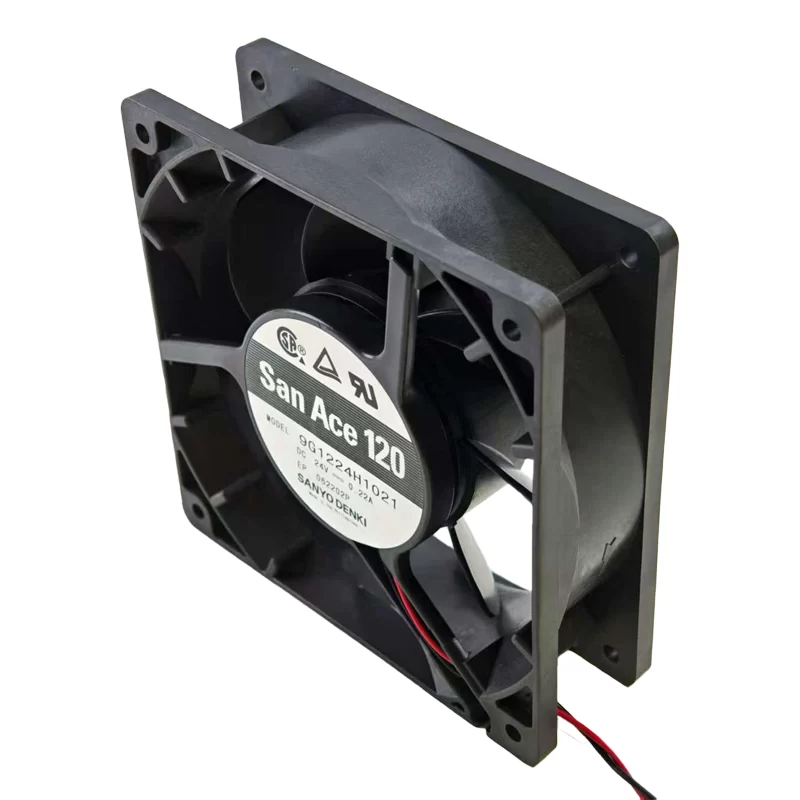

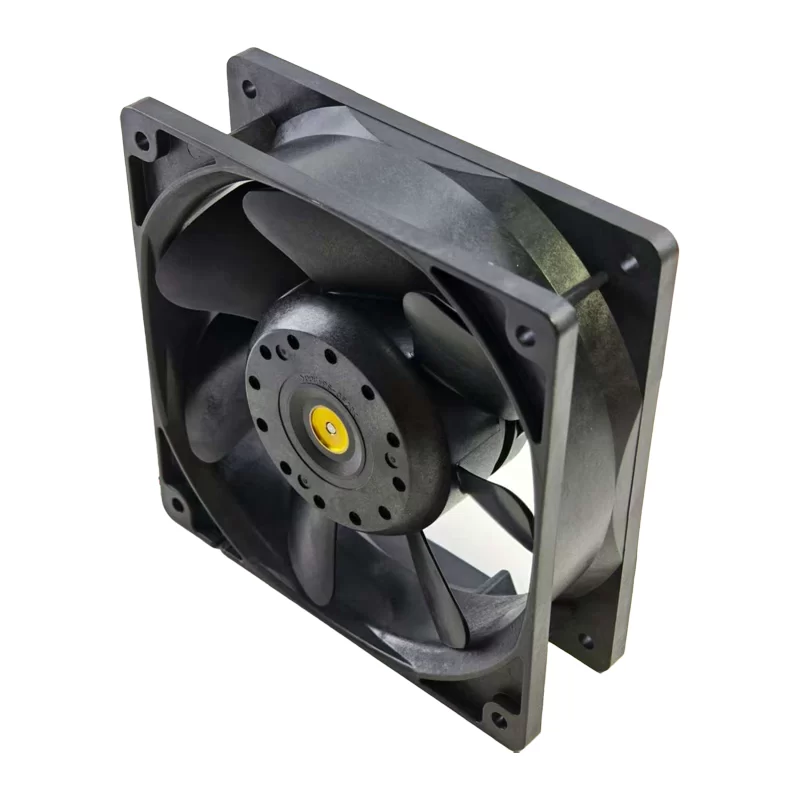

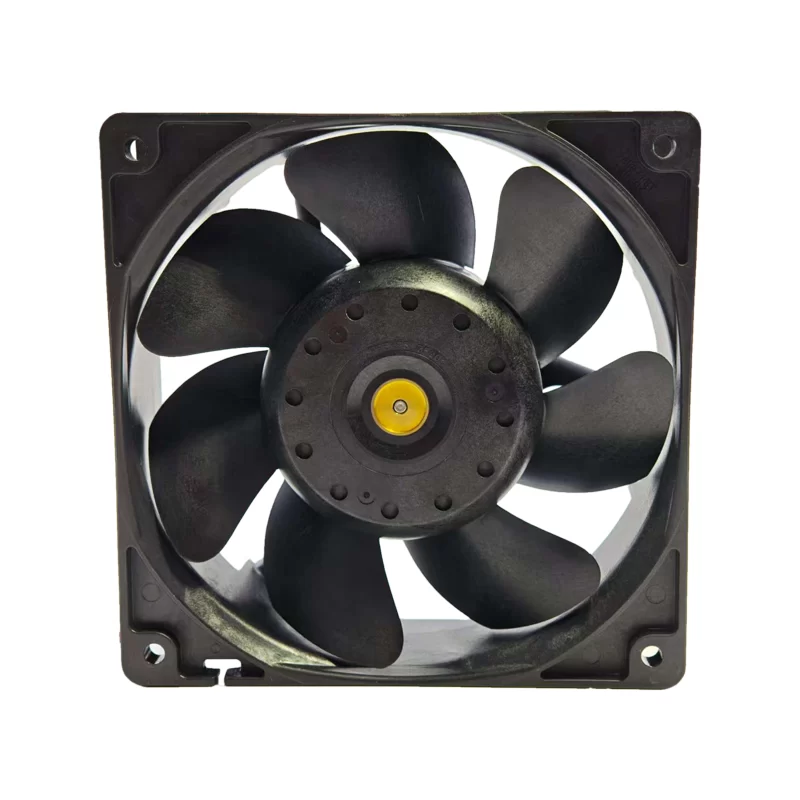

The Sanyo Denki 9G1224H1021 is a DC axial fan with dimensions of 120 x 120 x 38 mm. It operates on 24V DC, drawing 0.22 A of current and consuming 5.25 W of power. The fan delivers an airflow of 99 CFM (168.2 m³/h) and a static pressure of 0.283 inch H₂O (70.5 Pa). It runs at a speed of 2600 RPM with a low noise level of 38 dB(A). This fan is constructed with plastic and features two-wire leads. This fan is specifically used as an inverter fan for cooling.
9G1224H1021 Fan Parameters
Manufacturer: Sanyo Denki
Model: 9G1224H1021
Fan Type: DC Axial Fan
Dimensions: 120 x 120 x 38 mm
Rated Voltage: 24V DC
Current Rating: 0.22 A
Power Consumption: 5.25 W
Airflow: 99 CFM (168.2 m³/h)
Static Pressure: 0.283 inch H₂O (70.5 Pa)
Speed: 2600 RPM
Noise Level: 38 dB(A)
Weight: 330 g
Termination: Two Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Application: The 9G1224H1021 is a fan designed for cooling applications in inverters, ensuring reliable performance in variable frequency drives and other systems requiring consistent thermal management.
