Description

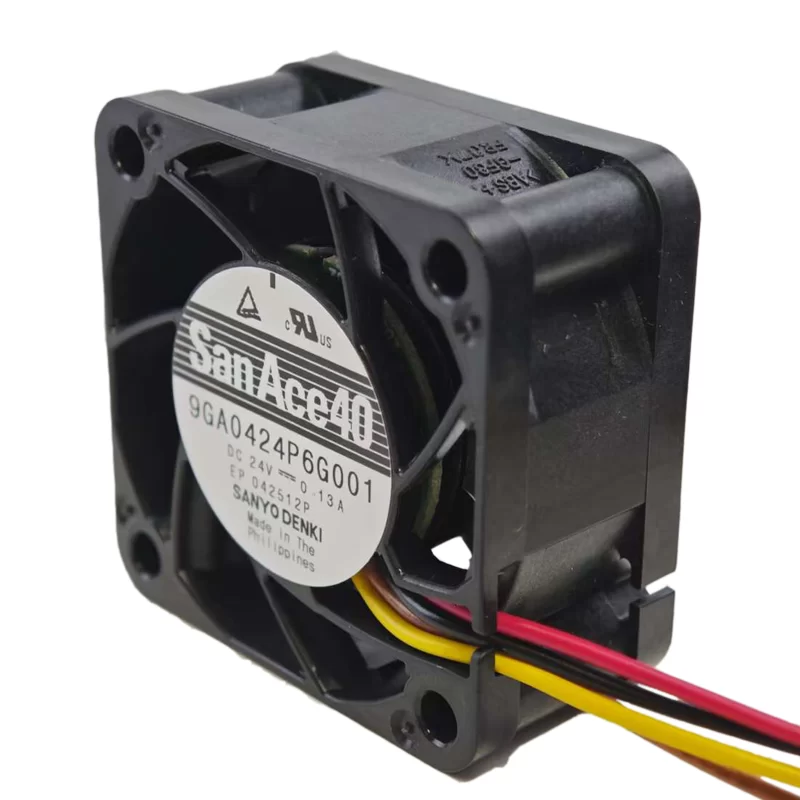

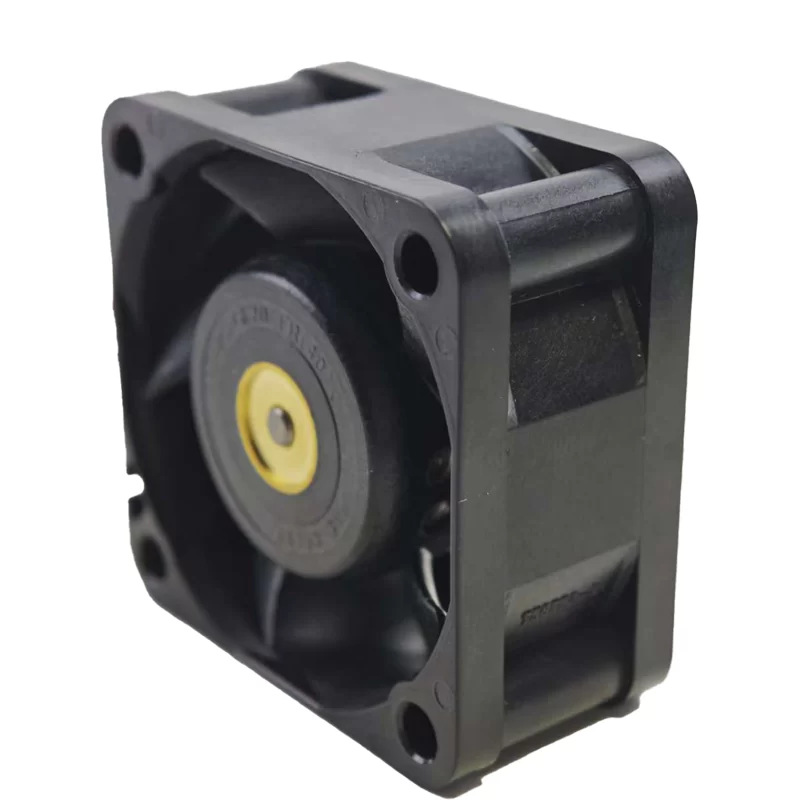

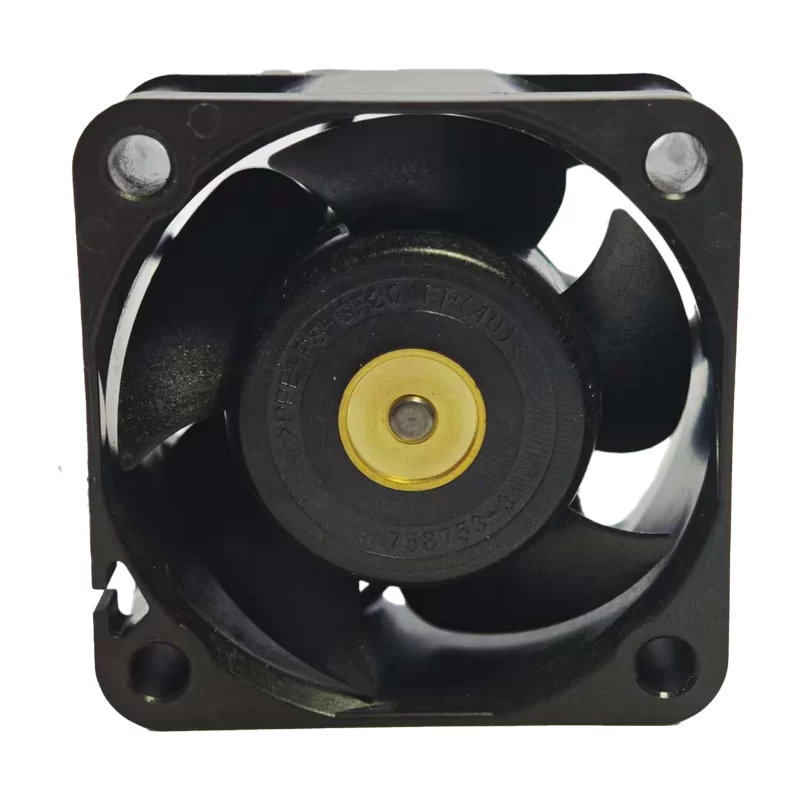

The Sanyo Denki 9GA0424P6G001 is a 40x40x20mm DC axial fan engineered for applications requiring significant airflow and static pressure in a small footprint. Operating on 24 VDC within a voltage range of 20.4–27.6 VDC, this fan draws 0.13A of current, consuming 3.12 W of power. It achieves a high rotational speed of 16000 min-1, delivering an airflow of 0.42 m³/min (14.8 CFM), along with a high static pressure of 318 Pa (1.28 inch H2O). With a noise level of 47 dB(A) and utilizing durable ball bearings, it provides robust and efficient cooling. This model features 4-wire leads for connection, including a pulse sensor (tachometer output) and PWM control for precise speed adjustment. It is built with a plastic frame and is certified by UL, CSA, and TUV, making it ideal for servers, telecommunications, and other high-performance ICT equipment.
9GA0424P6G001 Fan Parameters
Model Number: 9GA0424P6G001
Manufacturer: Sanyo Denki
Series: San Ace 40
Type: DC Axial Fan
Dimensions: 40mm x 40mm x 20mm
Rated Voltage: 24 VDC
Operating Voltage Range: 20.4–27.6 VDC
Rated Current: 0.13A
Power Consumption: 3.12 W
Speed: 16000 min-1
Airflow: 0.42 m³/min (14.8 CFM)
Static Pressure: 318 Pa (1.28 inch H2O)
Noise Level: 47 dB(A)
Bearing Type: Ball Bearing
Frame Material: Plastic
Blade Material: Plastic
Termination: 4-Wire Leads
Control Features: PWM control, Pulse sensor (Tachometer output)
Expected Life: 40,000 hours @ 60°C (70,000 hours @ 40°C)
Operating Temperature: -20°C to +70°C
Weight: 35 g
Certifications: UL, CSA, TUV
Application: Servers, ICT equipment, telecommunications equipment, power supplies, compact electronic devices, high-density cooling.
