Description

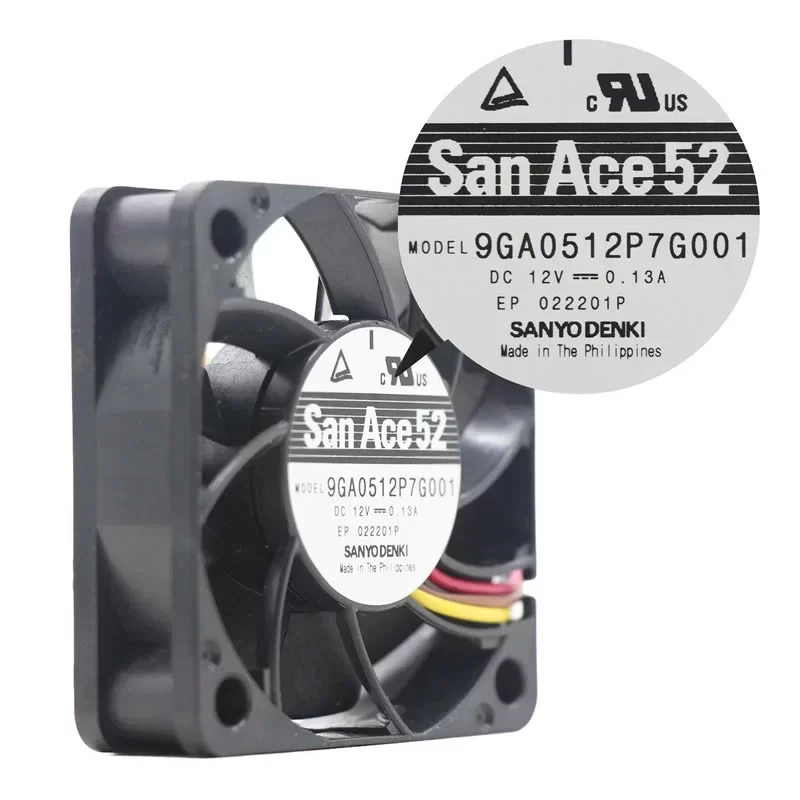

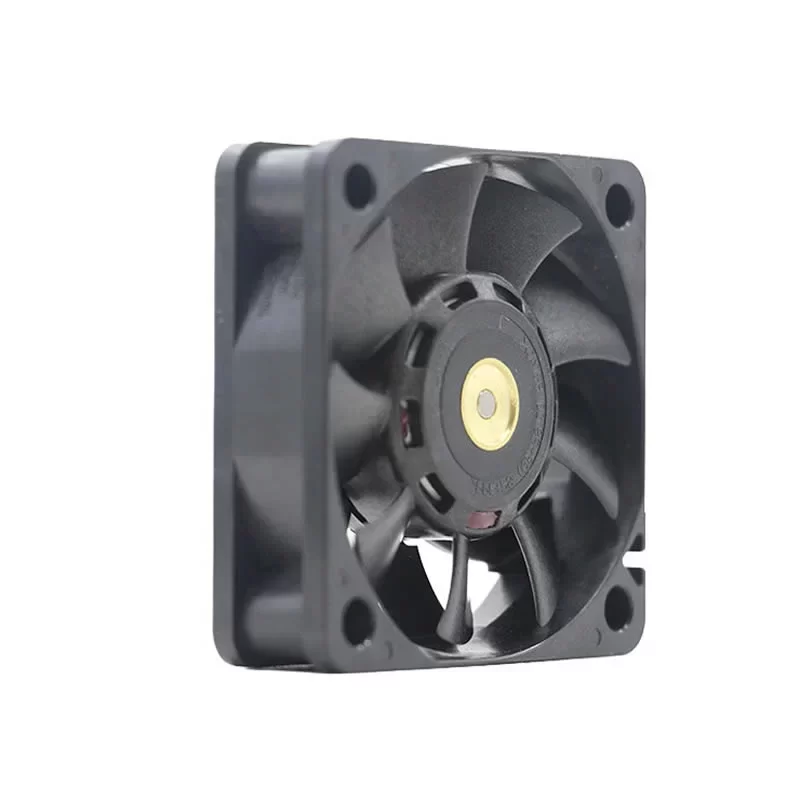

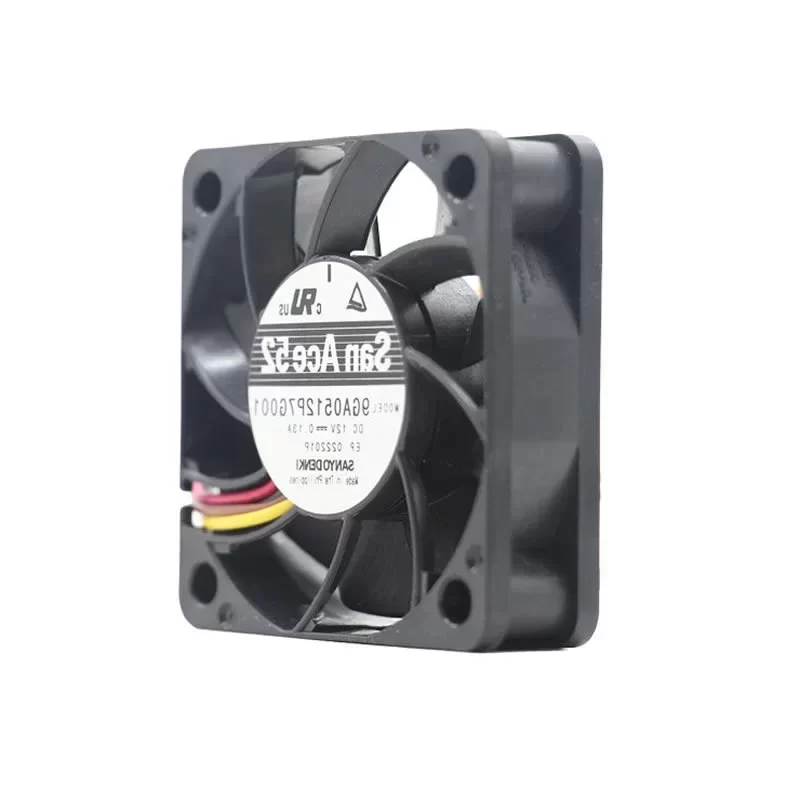

The Sanyo Denki 9GA0512P7G001 is a high-performance, low power consumption 12VDC axial fan with dimensions of 52 x 52 x 15 mm, specifically designed for high-density cooling in compact industrial and ICT equipment. As part of the San Ace 52 (9GA type) series, this cooling solution features a lightweight plastic frame and a high-efficiency 9-blade impeller (UL 94V-0), optimized for superior aerodynamic throughput and reduced energy usage. It operates at a rated speed of 7,800 RPM, delivering a maximum air flow of 17.7 CFM (30 m3/h) and a static pressure of 0.367 inH2O (91.5 Pa). Equipped with a precision dual ball bearing system and PWM control functionality, the 9GA0512P7G001 ensures a reliable service life of 70,000 hours at 40°C. This model is characterized by its compact form factor and integrated speed monitoring, making it an ideal choice for 1U server components, networking hardware, and portable medical devices.
9GA0512P7G001 Fan Parameters
Manufacturer: Sanyo Denki
Model Number: 9GA0512P7G001
Type: DC Axial Fan
Series: San Ace 52 (9GA type)
Dimensions: 52 x 52 x 15 mm
Weight: 40 g
Frame Material: Plastic
Impeller Material: Plastics (UL 94V-0)
Bearing Type: Dual Ball Bearing
Number of Blades: 9
Rated Voltage: 12 VDC
Operating Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.13 A
Rated Input Power: 1.56 W
Rated Speed: 7,800 RPM
Max. Air Flow: 17.7 CFM (30 m3/h / 0.5 m3/min)
Max. Static Pressure: 0.367 inH2O (91.5 Pa / 9.3 mmH2O)
Sound Pressure Level: 38 dB(A)
Termination: 4 Lead Wires (300 mm)
Wire Functions: Red (+), Black (-), Yellow (Tachometer), Brown (PWM)
Control Interface: PWM Control / Pulse Sensor
Operating Temperature: -20 – +70 °C
Storage Temperature: -30 – +70 °C
Expected Life: 70,000 h (at 40 °C) / 40,000 h (at 60 °C)
Locked Rotor Protection: Supported
Reverse Polarity Protection: Supported
Safety Approvals: UL, CSA, TUV, RoHS
Application
The Sanyo Denki 9GA0512P7G001 low-profile axial fan is specifically designed for cooling 1U server components, compact network switches, telecommunications modules, small-form-factor industrial PCs, and portable medical diagnostic equipment where space is limited and low power consumption is required.
