Description

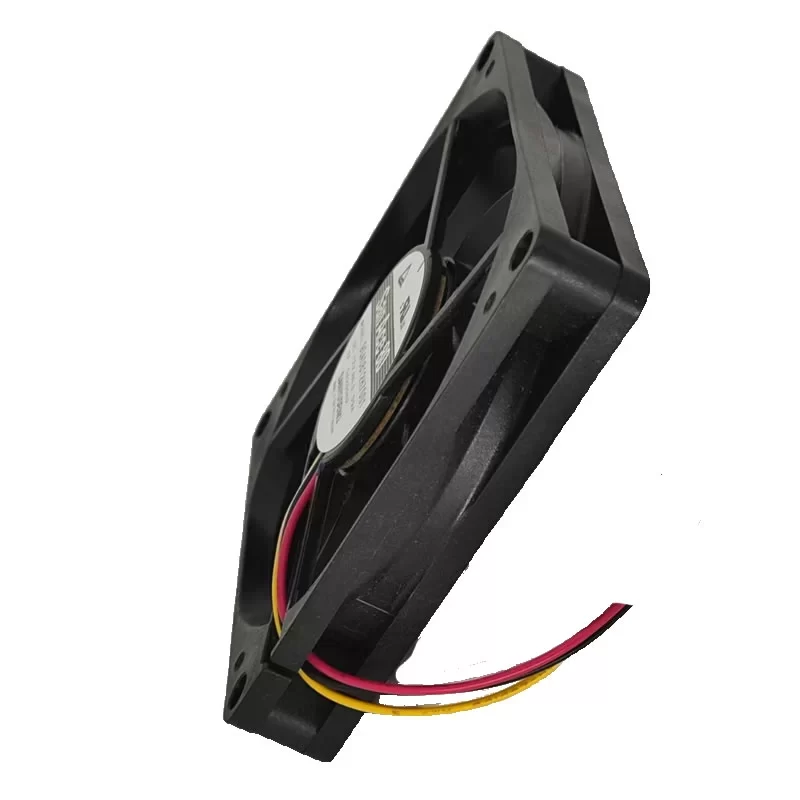

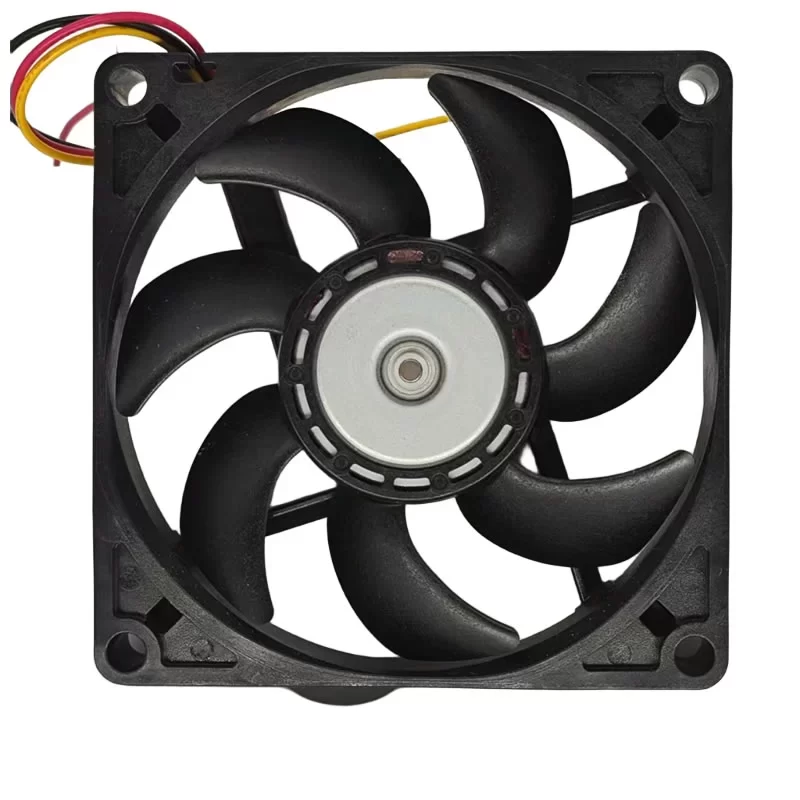

The Sanyo Denki 9GA0812H7001 is a high-performance DC Axial Fan with dimensions of 80×80×15 mm. This fan, part of the San Ace 80 series, operates at 12 VDC with a low power consumption of 1.08 W and a rated current of 0.09 A. It delivers a maximum airflow of 31.4 CFM (53.4 m3/h), a maximum static pressure of 32.6 Pa, and operates at 3800 RPM with a low noise level of 29 dBA. Featuring a durable Plastic (UL94V-0) frame and impeller, a Ball Bearing system, and a Pulse sensor for speed monitoring, this fan is ideal for cooling space-constrained 1U server equipment, networking gear, and sensitive electronic enclosures where low noise and thin profile are required.
9GA0812H7001 Fan Parameters
Model: 9GA0812H7001
Manufacturer: Sanyo Denki
Fan Type: DC Axial Fan
Dimensions: 80×80×15 mm
Nominal Voltage: 12 VDC
Operating Voltage Range: 6 VDC to 13.2 VDC
Rated Current: 0.09 A
Power Consumption: 1.08 W
Rated Speed: 3800 RPM
Airflow (Maximum): 53.4 m3/h
Static Pressure (Maximum): 32.6 Pa
Noise Rating: 29 dBA
Bearing System: Ball Bearing
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Number of blades: 7
Termination: 3 Wire Leads
Features: Pulse sensor
Expected Life (L10): 40000 h at 60 ∘C
Operating Temperature: −20 ∘C to +70 ∘C
Application
The 9GA0812H7001 is a low-profile and low-noise DC axial fan from the San Ace 80 series. Its 15 mm thickness and high airflow to noise ratio make it perfectly suited for compact 1U and 2U server enclosures, telecommunications switches, NAS devices, and other professional electronics that require efficient cooling with minimal acoustic output.
