Description

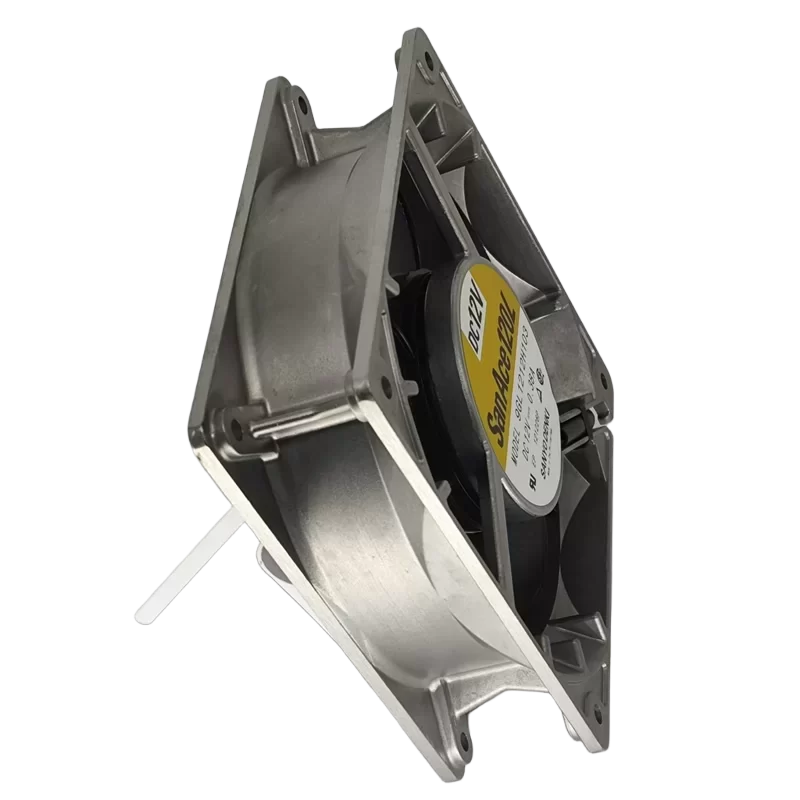

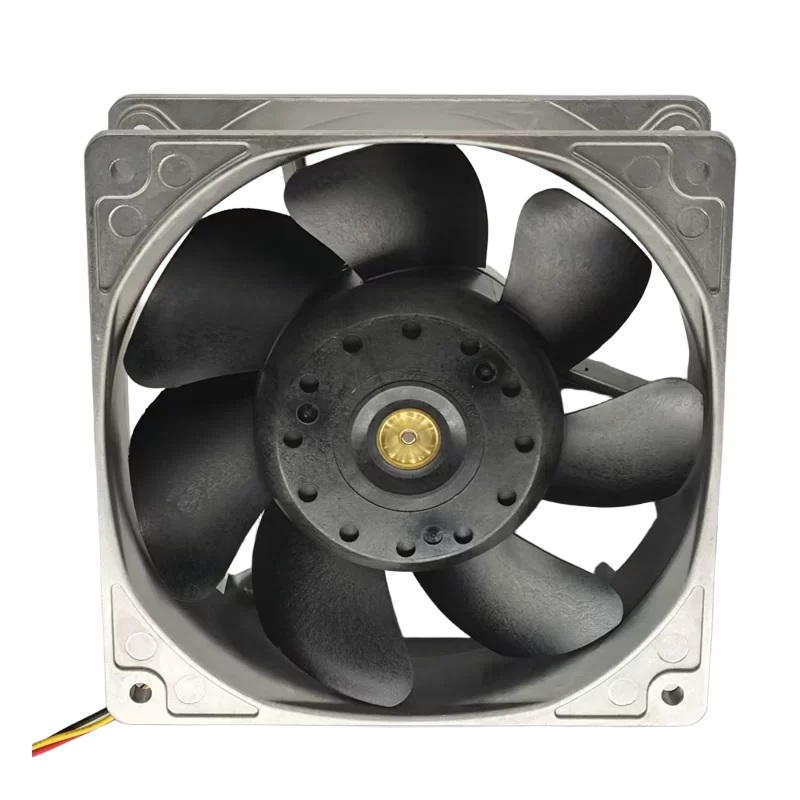

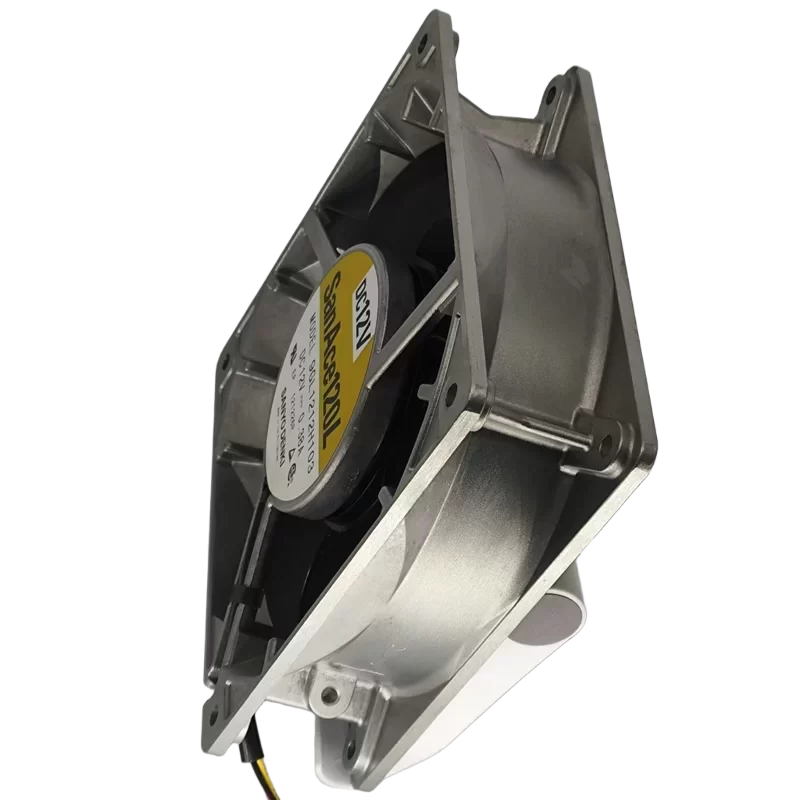

The Sanyo Denki 9GL1212H103 is a 12 VDC DC Axial Fan from the San Ace 120L Long-Life series, measuring 119×119×38 mm. It is engineered for high reliability, offering an expected life of 100000 hours at 60 ∘C. The fan operates at a rated speed of 2600 RPM, generating a maximum airflow of 168.36 m3/h (99.0 CFM) and a static pressure of 70.5 Pa. Constructed with an Aluminum frame and utilizing Ball Bearings, it features a Speed Sensor (Pulse/Tachometer output) and maintains a low noise level of 39.0 dBA with a power consumption of 4.56 W (0.380 A). This model is typically used for cooling servers, network hardware, and industrial automation equipment that requires dependable, long-term performance.
9GL1212H103 Fan Parameters
Model: 9GL1212H103
Manufacturer: Sanyo Denki
Fan Type: DC Axial Fan
Dimensions: 119×119×38 mm
Nominal Voltage: 12 VDC
Operating Voltage Range: 7 VDC to 13.8 VDC
Rated Current: 0.380 A
Power Consumption: 4.56 W
Rated Speed: 2600 RPM
Airflow (Maximum): 168.36 m3/h (99.0 CFM)
Static Pressure (Maximum): 70.5 Pa
Noise Rating: 39.0 dBA
Bearing System: Ball Bearing
Expected Life (L10): 100000 h at 60 ∘C
Operating Temperature: −20 ∘C to +70 ∘C
Frame Material: Aluminum
Features: Speed Sensor (Tachometer)
Termination: 3 Wire Leads
Approval Agency: CSA, TUV, UL
Mass: 370.13 g
Application
The 9GL1212H103 is a high-reliability fan from the San Ace 120L series. Its 12 VDC power and 120 mm size make it a standard choice for thermal management in servers, power supplies, telecommunication enclosures, and various industrial cooling systems where low noise and long service life are critical.
