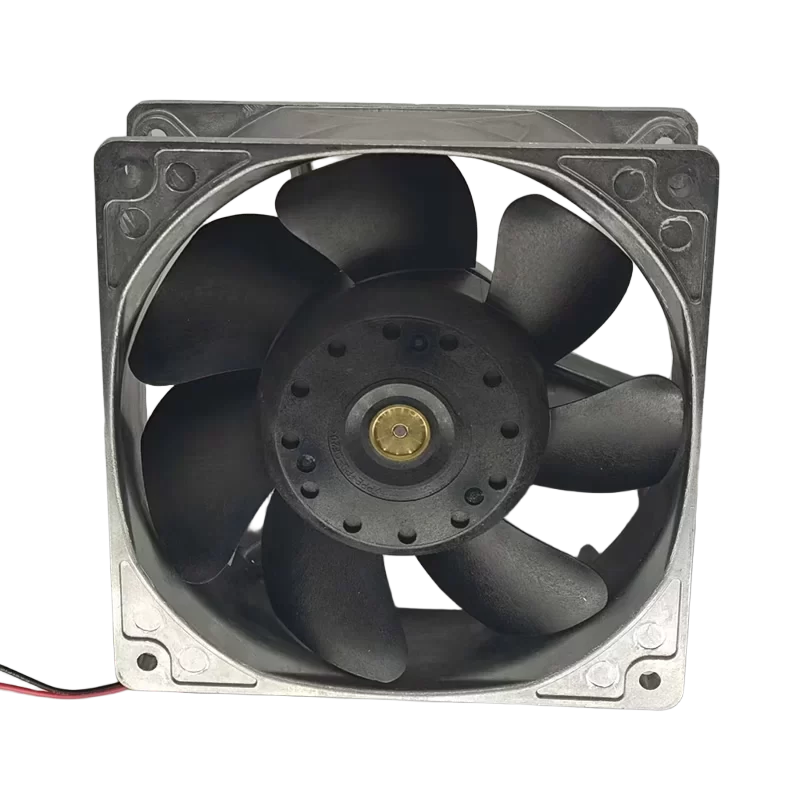

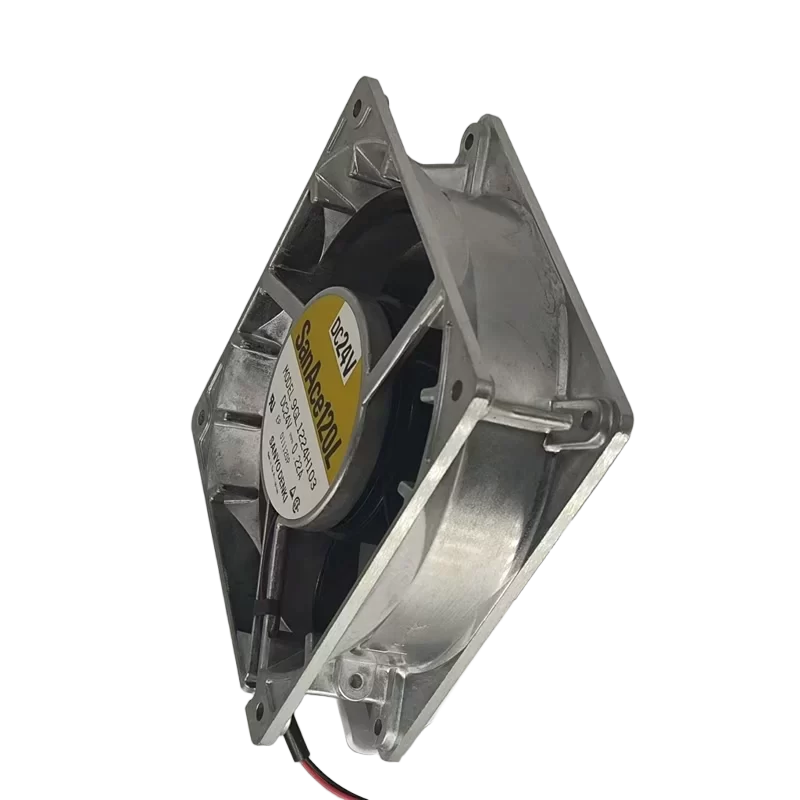

9GL1224H103 Sanyo Denki 24V DC Axial Fan

Description

The Sanyo Denki 9GL1224H103 is a 24 VDC DC Axial Fan in the San Ace 120L series, measuring 119×119×38 mm. It is a Long-Life Fan designed for high reliability, with an expected life of 100000 hours at 60 ∘C. Operating at a speed of 2600 RPM, it delivers a high maximum airflow of 168.36 m3/h (99.0 CFM) and a static pressure of 70.5 Pa. The fan features an Aluminum frame, Ball Bearings, and a Speed Sensor (Tachometer) output, while maintaining a moderate noise level of 39.0 dBA and consuming only 5.28 W (0.220 A). This fan is suitable for extended operation in telecom, server, and industrial equipment.

9GL1224H103 Fan Parameters
Model: 9GL1224H103
Manufacturer: Sanyo Denki
Fan Type: DC Axial Fan
Dimensions: 119×119×38 mm
Nominal Voltage: 24 VDC
Operating Voltage Range: 14 VDC to 27.6 VDC
Rated Current: 0.220 A
Power Consumption: 5.28 W
Rated Speed: 2600 RPM
Airflow (Maximum): 168.36 m3/h (99.0 CFM)
Static Pressure (Maximum): 70.5 Pa
Noise Rating: 39.0 dBA
Bearing System: Ball Bearing
Expected Life (L10): 100000 h at 60 ∘C
Operating Temperature: −20 ∘C to +70 ∘C
Frame Material: Aluminum
Termination: 2-Wire Leads
Approval Agency: CSA, TUV, UL
Mass: 370.13 g

Application
The 9GL1224H103 is specifically designed as a Long-Life Fan for applications requiring high reliability and continuous operation over many years. Its 120 mm size and robust performance make it an ideal choice for cooling Rackmount Servers, Storage Systems, Power Supplies, Telecommunication Equipment, and Industrial Control Cabinets.
