Description

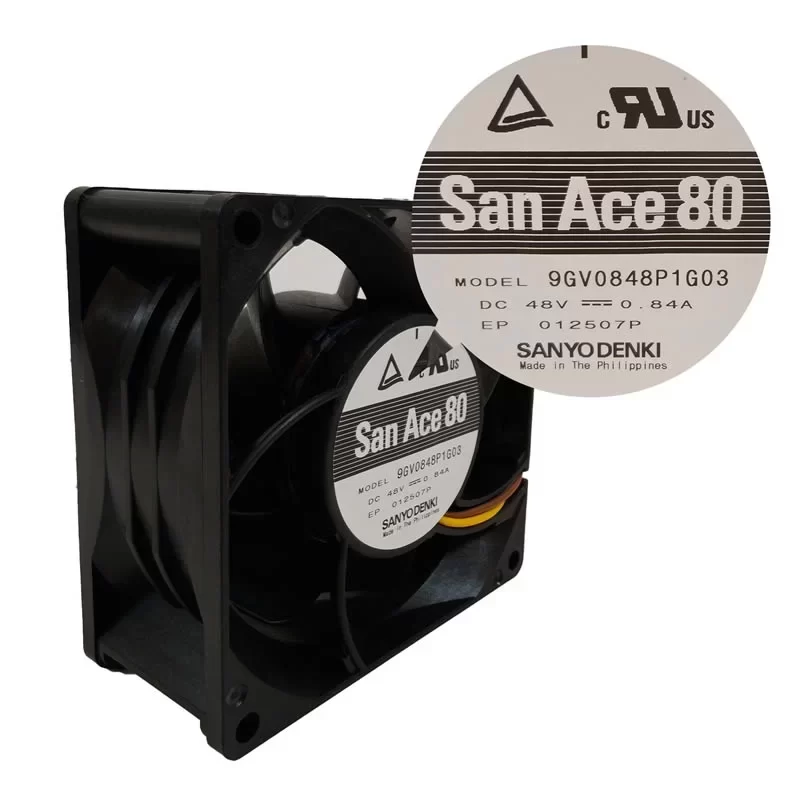

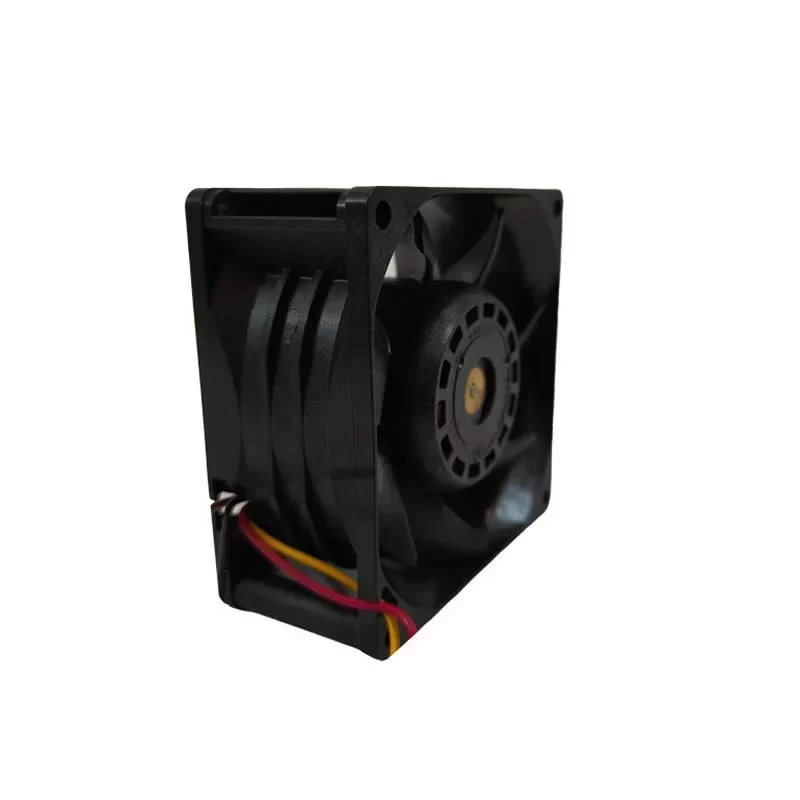

The Sanyo Denki 9GV0848P1G03 is a high-performance 48VDC axial fan featuring dimensions of 80 x 80 x 38 mm. Driven by a 0.84A motor with a rated power consumption of 40.32W, this 9GV series model achieves a 10200 RPM high-speed rotation, delivering an intensive 1.97 inH₂O (490.0 Pa) static pressure and 125.4 CFM airflow capacity. Its technical construction integrates a precision dual ball bearing system and a glass-fiber reinforced plastic impeller (UL 94V-0) to ensure structural integrity and a 40,000-hour expected life at 60 °C. The 4-wire PWM interface provides integrated speed regulation and tachometer monitoring, complemented by built-in locked rotor and reverse polarity protection for stable continuous S1 operation at the end.
9GV0848P1G03 Fan Parameters
Model Number: 9GV0848P1G03
Manufacturer: Sanyo Denki
Series: San Ace 80 (9GV Type)
Type: DC Axial Fan
Dimensions: 80 x 80 x 38 mm
Weight: 170 g
Bearing Type: Dual ball bearing
Nominal Voltage: 48 VDC
Operating Voltage Range: 36.0 – 54.0 VDC
Current Draw: 0.84 A
Power Consumption: 40.32 W
Rated Speed: 10200 RPM
Max. Air Flow: 125.4 CFM (213.0 m³/h / 3.55 m³/min)
Max. Static Pressure: 50.00 mmH₂O (490.0 Pa / 1.97 inH₂O)
Sound Pressure Level: 64 dB(A)
Control Interface: 4-wire PWM (
Sensor Output: Pulse sensor (Tachometer)
Impeller Material: Plastic (UL 94V-0), glass-fiber reinforced
Frame Material: Plastic (UL 94V-0), glass-fiber reinforced
Direction of Rotation: Counter-clockwise (viewed toward rotor)
Degree of Protection: IP00
Expected Life: 40000 hours at 60 °C (70000 hours at 40 °C)
Motor Protection: Locked rotor burnout protection / Reverse polarity protection
Installation Position: Any
Mode: S1 (Continuous operation)
Max. Ambient Temperature: 70 °C
Min. Ambient Temperature: -20 °C
Standard Compliance: UL; CSA; TÜV; CE; RoHS
Application
The Sanyo Denki 9GV0848P1G03 is a critical cooling component for server storage systems, high-density networking switches, and industrial power supplies where high-velocity airflow and extreme static pressure are required in an 80mm configuration.
