Description

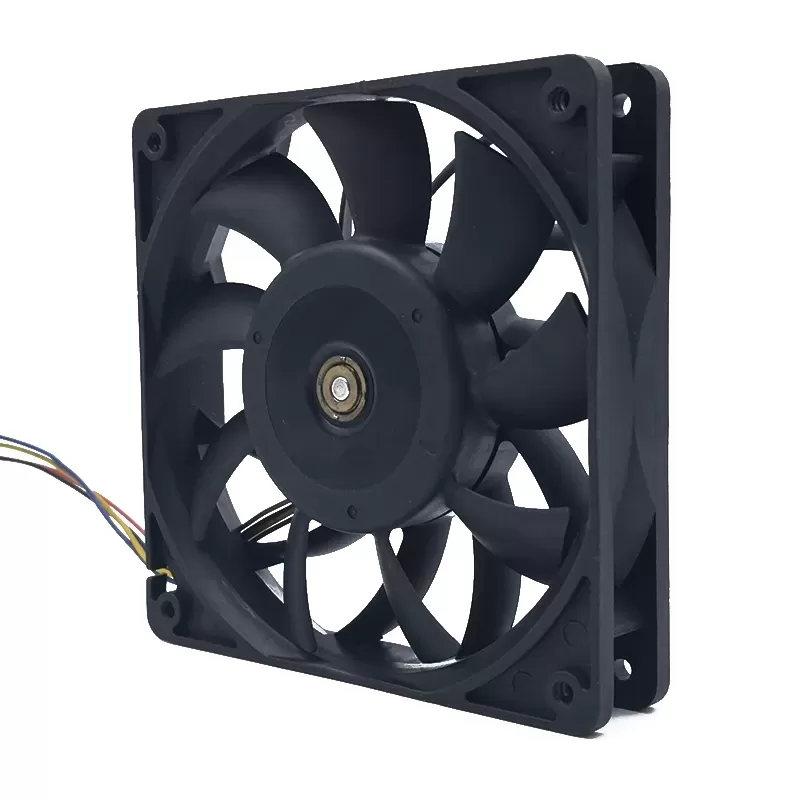

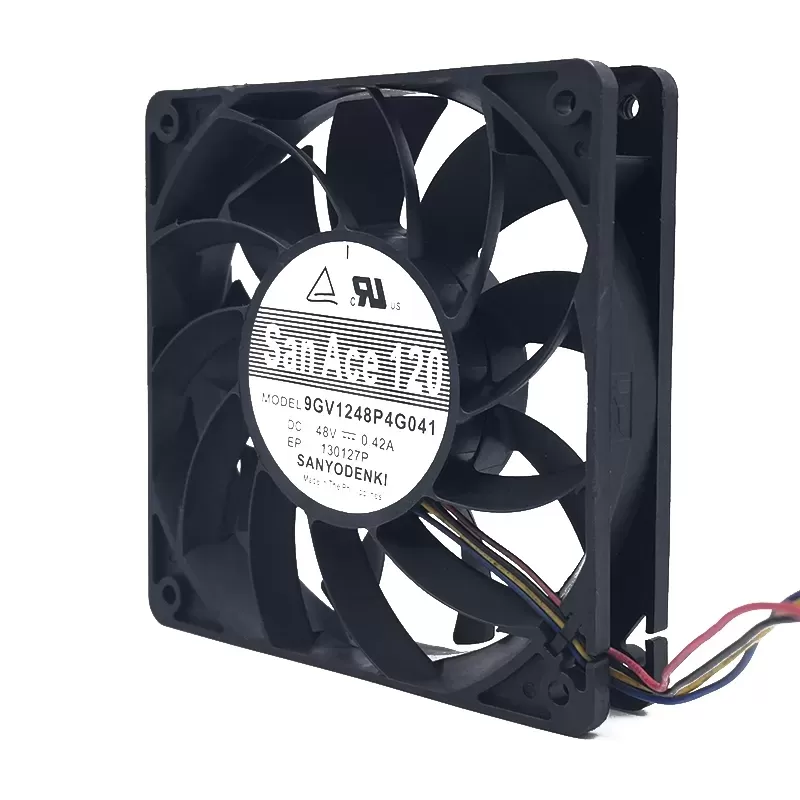

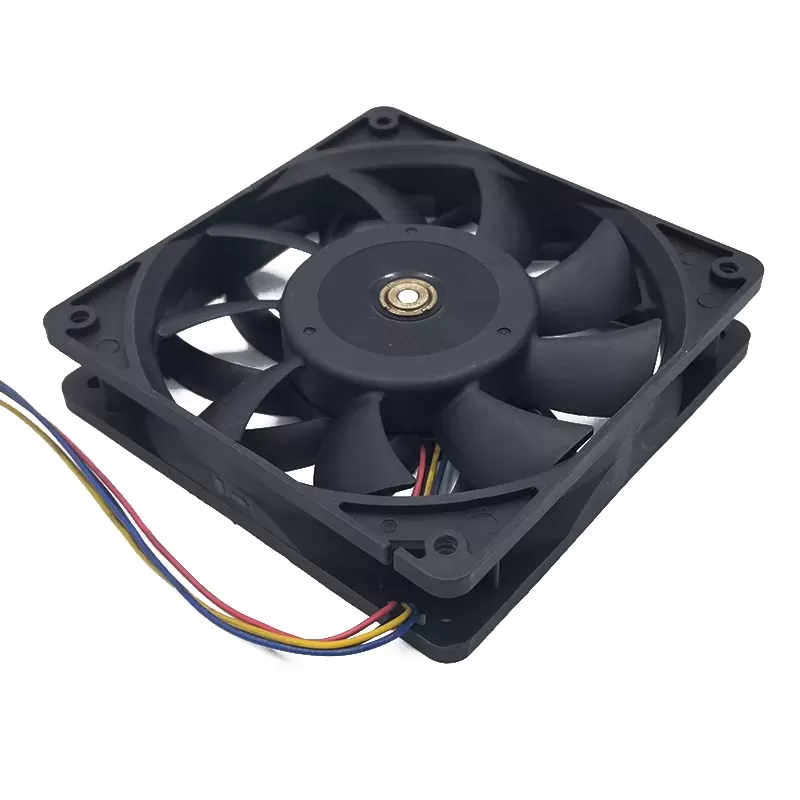

The Sanyo Denki 9GV1248P4G041 is a powerful 48V DC axial fan from the San Ace 120 series, measuring 120x120x25mm. Designed for demanding cooling applications, it operates at 48V DC, drawing 0.42 amps of current and consuming 20.16 watts of power. This fan achieves a high speed of 5100 RPM, delivering a strong airflow of approximately 171 CFM (4.83 m³/min) with a high static pressure of 224 Pa and a noise level of 58 dBA. Built with durable ball bearings and featuring PWM control and a speed sensor (tachometer) for precise control and monitoring, it also includes locked rotor protection for enhanced safety. This fan is well-suited for cooling servers, industrial control panels, telecommunications equipment, and high-performance power supplies.
9GV1248P4G041 Fan Parameters
Model Number: 9GV1248P4G041
Manufacturer: Sanyo Denki
Brand: San Ace 120
Type: DC Axial Fan
Dimensions: 120mm x 120mm x 25mm
Rated Voltage: 48 VDC
Operating Voltage Range: 40.8 – 60 VDC
Rated Current: 0.42A
Rated Power: 20.16 W
Speed: 5100 RPM
Airflow: 171 CFM (4.83 m³/min or 289.8 m³/h)
Static Pressure: 224 Pa (0.9 inchH2O)
Noise Level: 58 dBA
Bearing Type: Ball Bearing
Service Life: 40,000 hours at 60°C (70,000 hours at 40°C)
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Operating Temperature: -20°C to +70°C
Weight: 260 g (0.573 lb)
Connector: 4 Wire Leads
Features: PWM Control Function, Speed Sensor (Tachometer/Pulse), Locked Rotor Protection
Approvals/Certifications: UL, CSA, TUV
Key Application: Server cooling, Industrial control panels, Telecommunications equipment, Power supplies
