Description

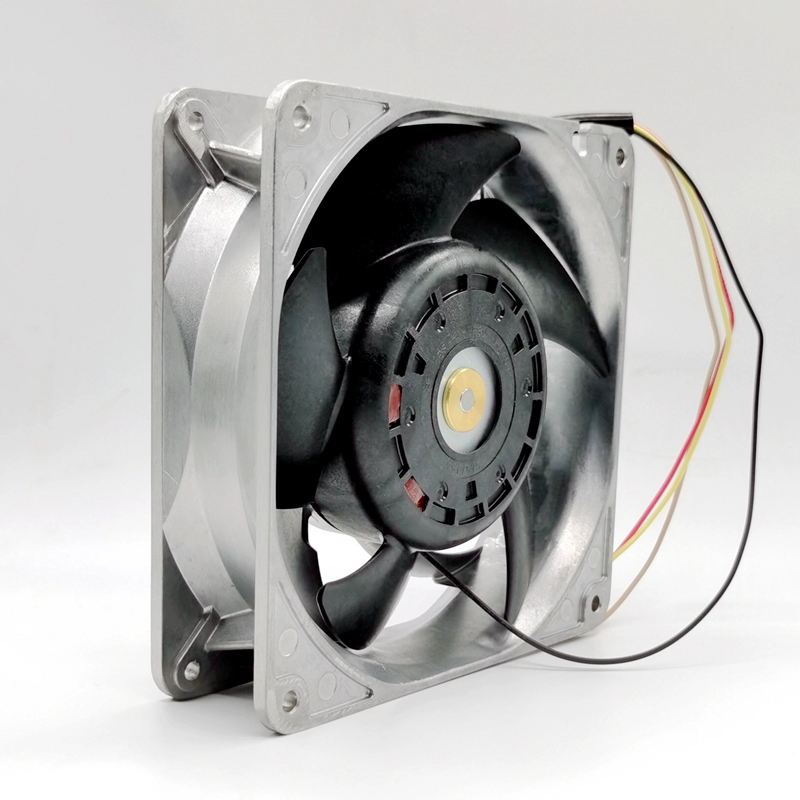

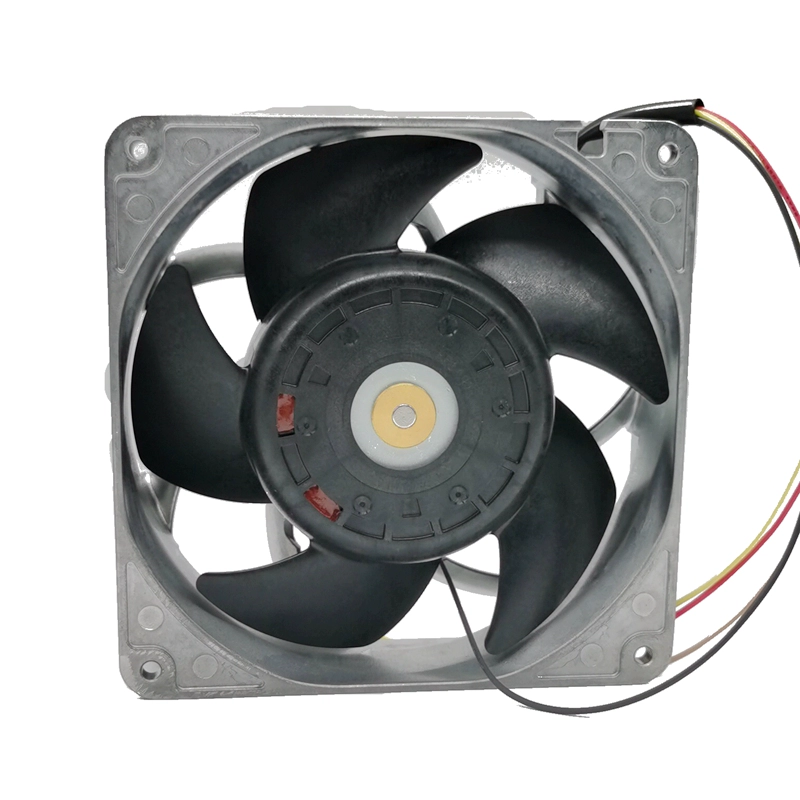

The Sanyo Denki 9GV1448P1G001 is an exceptionally powerful 140x140x38mm DC axial fan engineered for extreme airflow and high static pressure in the most demanding cooling applications. Operating on 48 VDC within a voltage range of 36–60 VDC, this fan draws 1.15A of current, consuming 55.2W of power. It achieves an ultra-high rotational speed of 7600 min-1, delivering a substantial airflow of 8.8 m³/min (310 CFM or 528 m³/h) and significant static pressure. With a noise level of 70 dB(A) and utilizing durable ball bearings, it ensures highly efficient air movement. This model features PWM control, a pulse sensor (tachometer output), and 4-wire leads for connection and precise speed regulation. Constructed with an aluminum frame, it offers robust protection features and is certified by UL, cUL, TUV, and CSA, making it suitable for critical applications like high-density servers, telecommunications equipment, and power supplies requiring aggressive cooling.
9GV1448P1G001 Fan Parameters
Model Number: 9GV1448P1G001
Manufacturer: Sanyo Denki
Series: San Ace 140
Type: DC Axial Fan
Dimensions: 140mm x 140mm x 38mm
Rated Voltage: 48 VDC
Operating Voltage Range: 36–60 VDC
Rated Current: 1.15A
Power Consumption: 55.2 W
Speed: 7600 min-1
Airflow: 8.8 m³/min (310 CFM or 528 m³/h)
Static Pressure: 640 Pa (2.57 in H2O)
Noise Level: 70 dB(A)
Bearing Type: Ball Bearing
Frame Material: Aluminum
Termination: 4-Wire Leads
Protection Features: Current cut method, Reverse connection protection
Control Features: PWM control, Pulse sensor (Tachometer output)
Expected Life: 40,000 hours @ 60°C (70,000 hours @ 40°C)
Operating Temperature: -20°C to +70°C
Weight: 630 g
Certifications: UL, cUL, TUV, CSA
Application: High-density servers, telecommunications equipment, power supplies, industrial machinery, data centers, high-performance electronics cooling, applications requiring aggressive thermal management.
