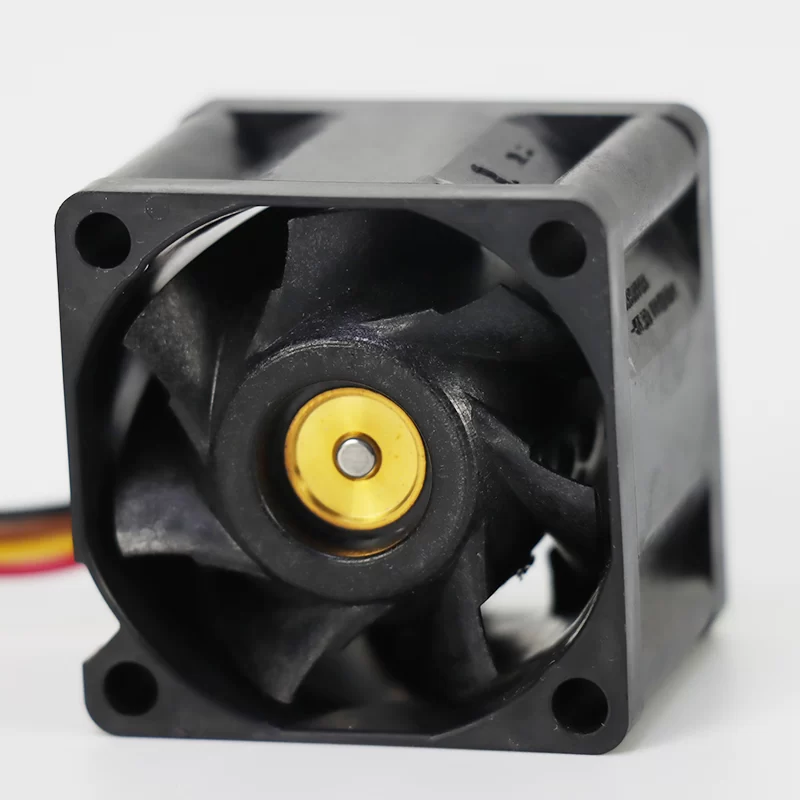

9GX3612P3K001 Sanyo Denki 12V 1.3A 36mm DC Axial Fan

Description

The Sanyo Denki 9GX3612P3K001 is a specialized ultra-high-speed 36 mm DC Axial Fan from the San Ace 36GX series, engineered for high-density thermal management in space-constrained 1U server modules and power supply units. Operating on a nominal 12 VDC supply (10.8 – 13.2 VDC range), this unit features a high-torque Brushless DC Motor that delivers 15.6 W of power at an exceptional rated speed of 24000 RPM. Within its compact 36 x 36 x 28 mm ribbed plastic housing, the fan utilizes a 7-blade impeller to move 41.4 m³/h (24.4 CFM) of air while generating a massive static pressure of 838 Pa (3.367 inAq). Equipped with a 4-wire interface for PWM speed control and a Pulse Sensor (Tacho) for monitoring, this 46 g lightweight powerhouse is designed for high-efficiency operation between -10 °C and +60 °C with an expected service life of up to 70000 h at 40 °C.

9GX3612P3K001 Fan Parameters
Manufacturer: Sanyo Denki
Model Number: 9GX3612P3K001
Motor Design: Brushless DC Motor
Type: DC Axial Fan
Nominal Voltage: 12 VDC
Nominal Voltage Range: 10.8 – 13.2 VDC
Dimensions: 36 x 36 x 28 mm
Impeller Size: 36 mm
Number of Blades: 7
Weight: 46 g

[Electrical Data]
Nominal Speed: 24000 RPM
Power Consumption: 15.6 W
Current Draw: 1.3 A
Termination: 4-wire (PWM control + Pulse sensor)
Motor Protection: Reverse polarity and locked-rotor protection
Insulation Class: E

[Performance & Acoustics]
Max. Air Flow: 41.4 m³/h (24.4 CFM)
Max. Static Pressure: 838 Pa (3.367 inAq)
Sound Pressure Level: 66 dB(A)
Direction of Rotation: Clockwise (looking at rotor)
Airflow Direction: Exhaust over struts

[Materials & Construction]
Housing Material: Plastic (Ribbed)
Impeller Material: Plastic (UL 94V-0)
Motor Bearing: Dual Ball Bearings
Mounting: 4 corner holes (Ø 2.8 mm)

[Reliability & Protection]
Degree of Protection: IP20
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 60 °C
Service Life (L10): 40000 h at 60 °C (70000 h at 40 °C)
Standard Compliance: UL, CSA, TÜV, CE
