Description

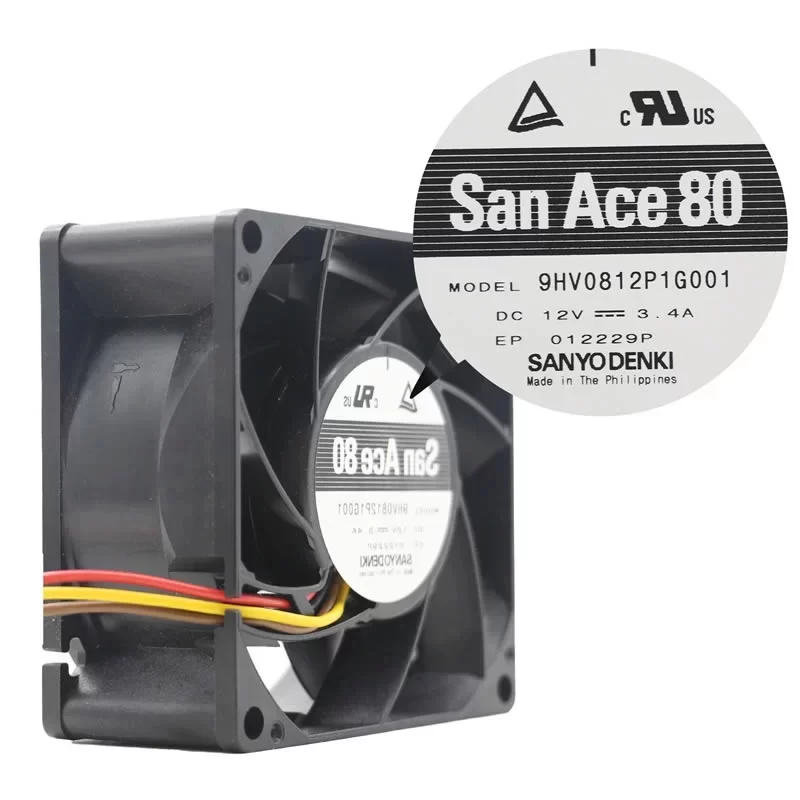

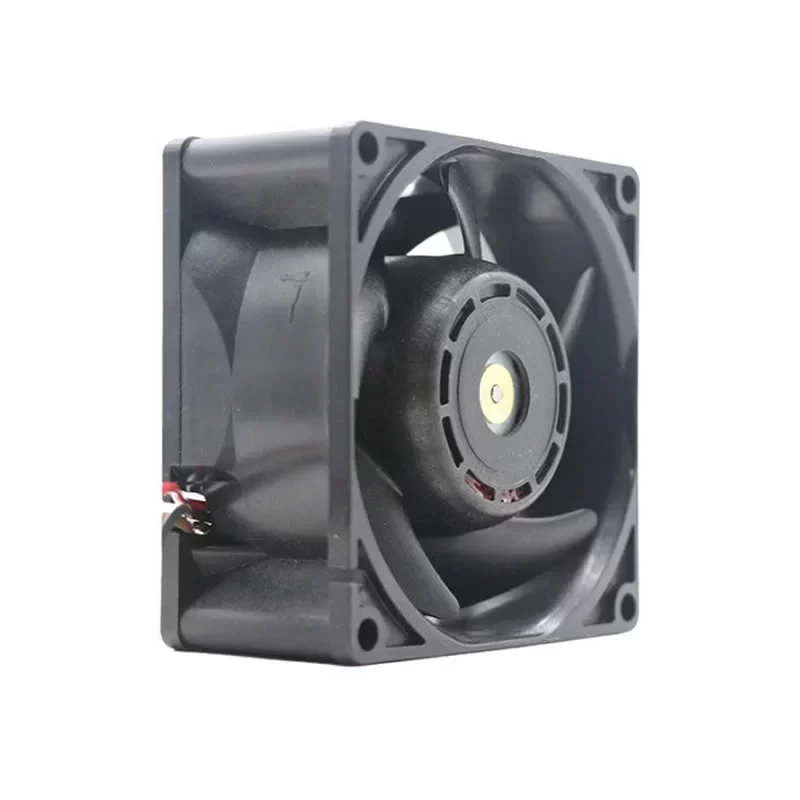

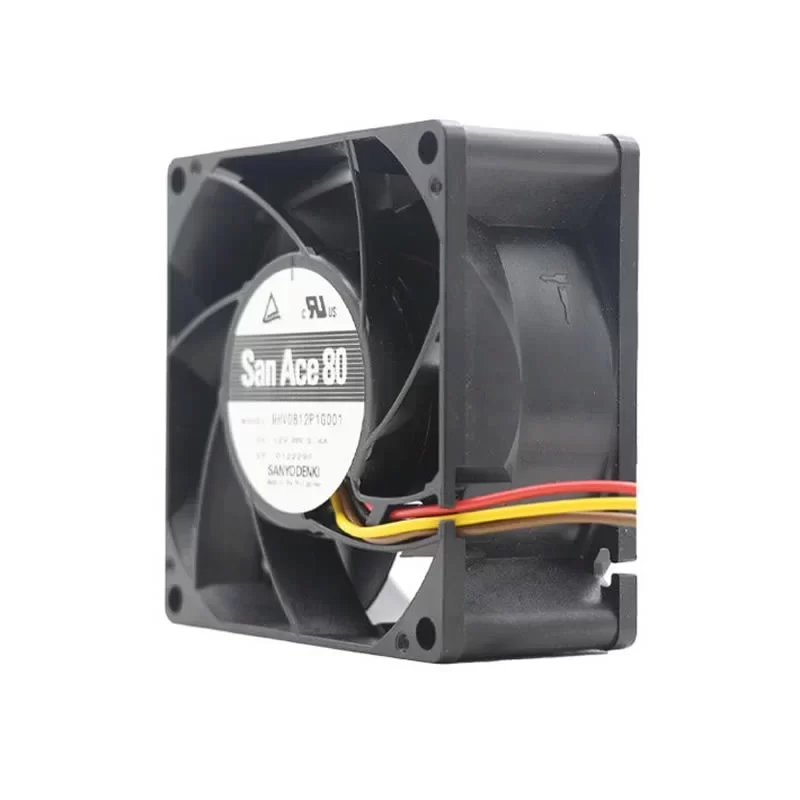

The Sanyo Denki 9HV0812P1G001 is a high-performance 12VDC axial fan with dimensions of 80 x 80 x 38 mm. This industrial-grade cooling solution is engineered for ultra-high static pressure and extreme speed operation, ensuring optimal thermal management in high-impedance electronic environments. It features a robust dual ball bearing system, a 5-blade high-efficiency impeller, and PWM speed control for precise airflow regulation and an extended service life. The unit is specifically designed for high-density servers, networking equipment, and industrial power supplies where space is limited but heat dissipation requirements are extreme.
9HV0812P1G001 Fan Parameters
Manufacturer: Sanyo Denki
Model Number: 9HV0812P1G001
Series: San Ace 80 9HV type
Dimensions: 80 x 80 x 38 mm
Impeller Size: 76 mm
Number of Blades: 5
Rated Voltage: 12 VDC
Operating Voltage Range: 10.8 – 13.2 VDC
Rated Current: 3.4 A
Rated Input Power: 40.8 W
Rated Speed: 14,900 RPM
Max. Air Flow: 123.6 CFM (210 m³/h / 3.5 m³/min)
Max. Static Pressure: 4.02 inAq (1000 Pa / 102 mmH₂O)
Sound Pressure Level: 70 dB(A)
Sound Power Level: 80 dB(A)
Bearing Type: Dual Ball Bearing
Weight: 210 g
Control Interface: PWM Control / Tachometer Sensor
PWM Control Frequency: 25 kHz
PWM Duty Cycle: 0 – 100%
Operating Temperature: -20 – +70 °C
Storage Temperature: -30 – +70 °C
Expected Life: 40,000 h (at 60 °C) / 70,000 h (at 40 °C)
Material Frame: Plastics (UL 94V-0)
Material Impeller: Plastics (UL 94V-0)
Locked Rotor Protection: Supported
Reverse Polarity Protection: Supported
Dielectric Strength: 50/60 Hz, 500 VAC, for 1 minute
Insulation Resistance: 10 MΩ or more (500 VDC)
Application
This high-performance axial fan is specifically designed for cooling high-density equipment such as 2U servers, communication base stations, high-end workstations, and industrial frequency converters where overcoming high impedance and maintaining consistent airflow is critical.
