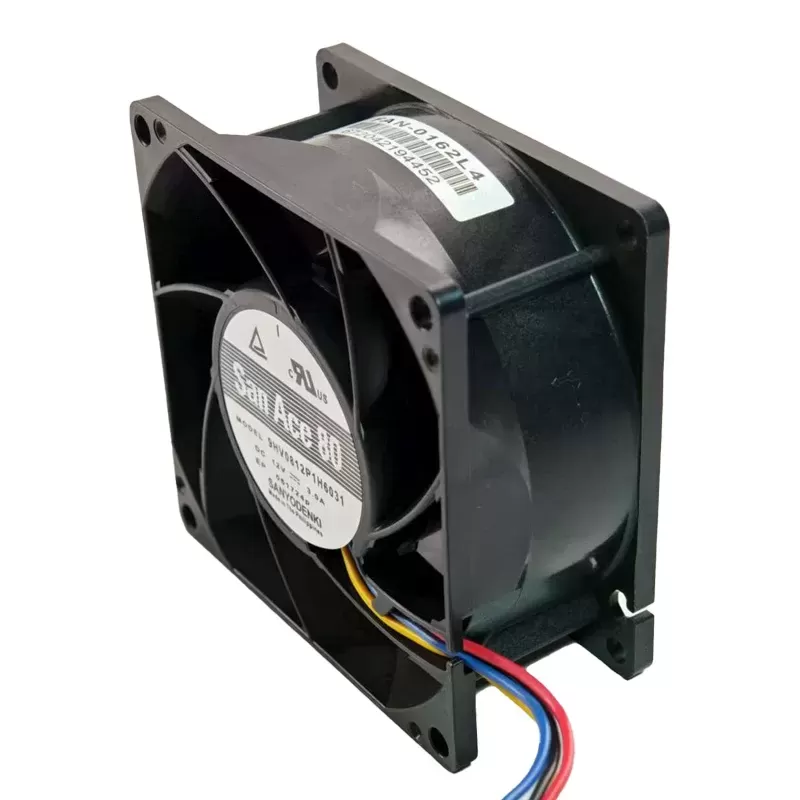

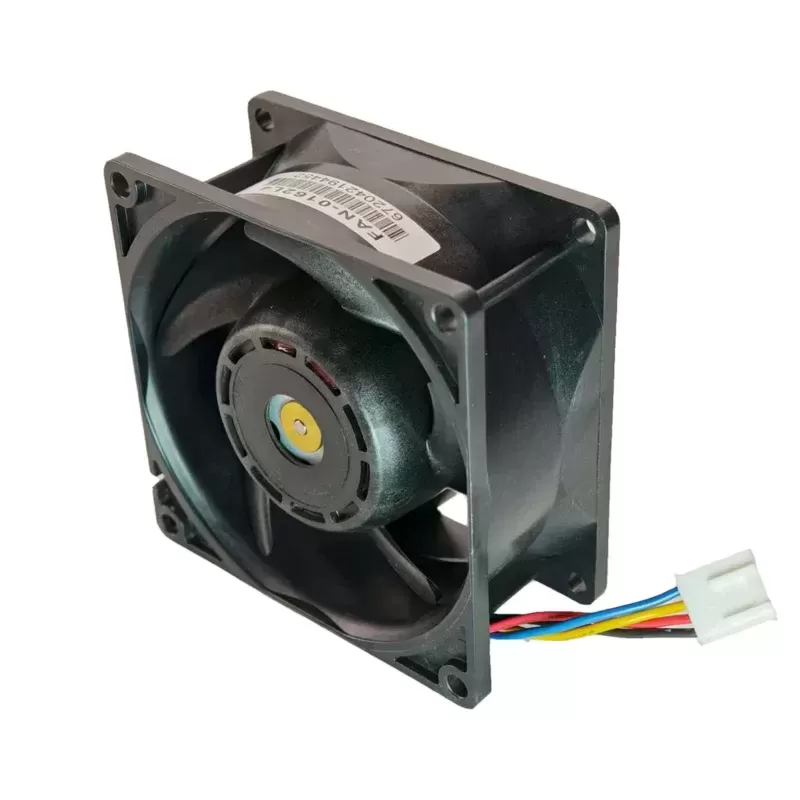

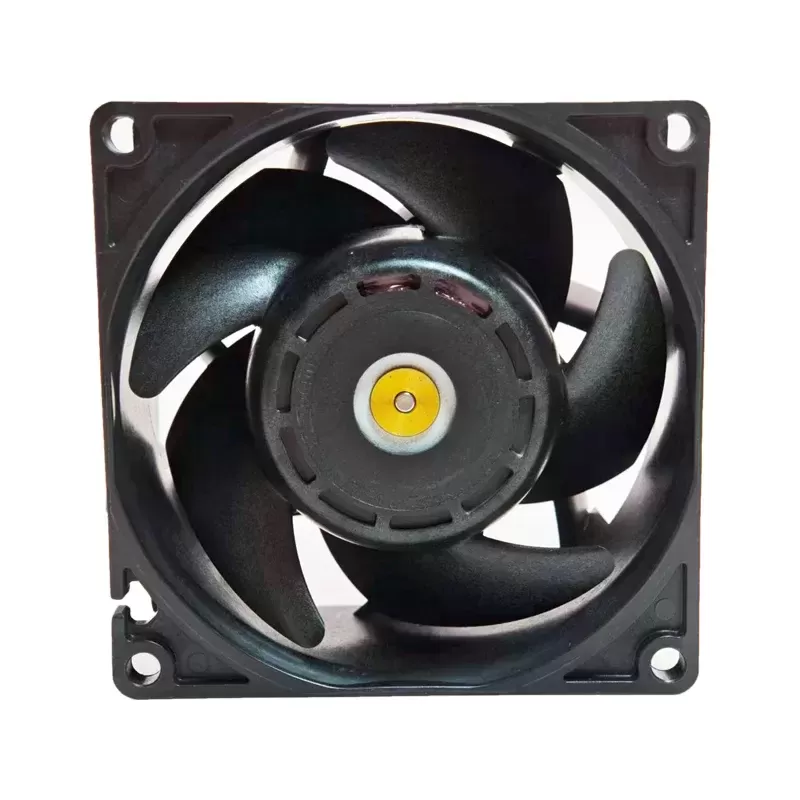

9HV0812P1H6031 Sanyo DC12V 3.0A axial fan

Description

The Sanyo 9HV0812P1H6031 is a high-performance DC axial fan measuring 80x80x38mm. It operates on 12 VDC, drawing 3.0 A of current, with a power consumption of 36 W. This fan achieves a very high speed of 13500 RPM, providing a substantial airflow of 118.2 CFM (3.35 m³/min). It generates a static pressure of approximately 3.49 inch H2O (870 Pa). The noise level is 67 dB(A). It features ball bearings for exceptional durability and often includes features like PWM control and a speed sensor (tachometer). The frame material is plastic. This fan is specifically designed for demanding applications requiring high static pressure, such as cooling densely packed server equipment, storage devices, and telecommunications equipment. It typically connects via 4-wire Leads.

9HV0812P1H6031 Fan Parameters
Model: 9HV0812P1H6031
Manufacturer: Sanyo Denki
Type: DC Axial Fan
Dimensions: 80x80x38 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 10.8-13.2 VDC
Rated Current: 3.0 A
Power Consumption: 36 W
Speed: 13500 RPM
Airflow: 118.2 CFM (3.35 m³/min)
Static Pressure: 3.49 inch H2O (870 Pa)
Noise Level: 67 dB(A)
Bearing Type: Ball Bearing
Termination: 4-wire Leads
Weight: 230 g
Material Frame: Plastic
Material Blade: Plastic
Operating Temperature: -20 to 70°C
Expected Life: 40000 Hrs at 60°C (70000 Hrs at 40°C)
Features: PWM Control, Speed Sensor (Tachometer), Locked Rotor Protection
Application: Servers, storage devices, telecommunications equipment, high-density equipment requiring high static pressure.
