Description

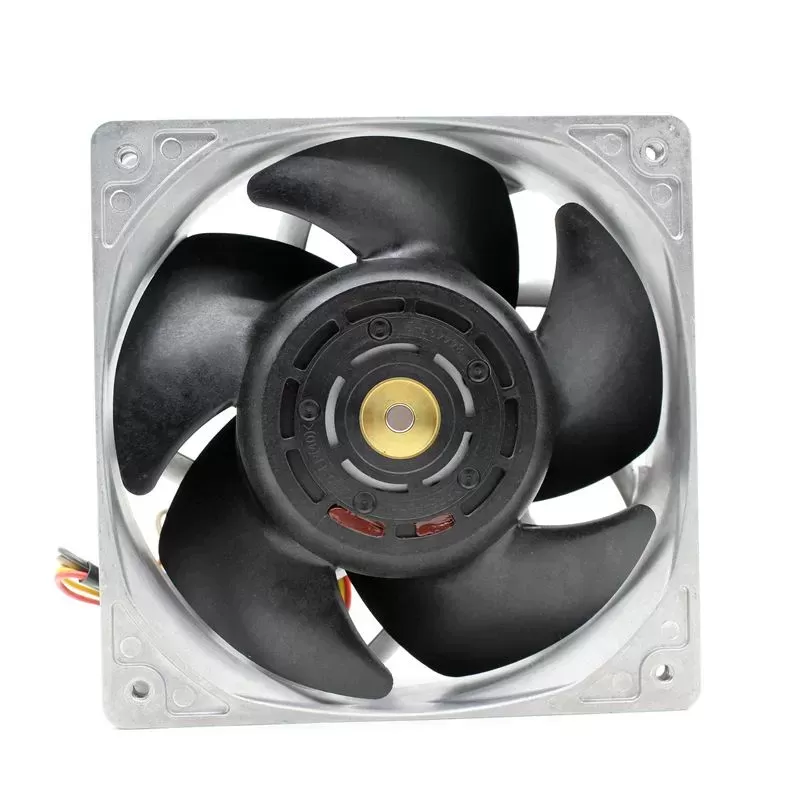

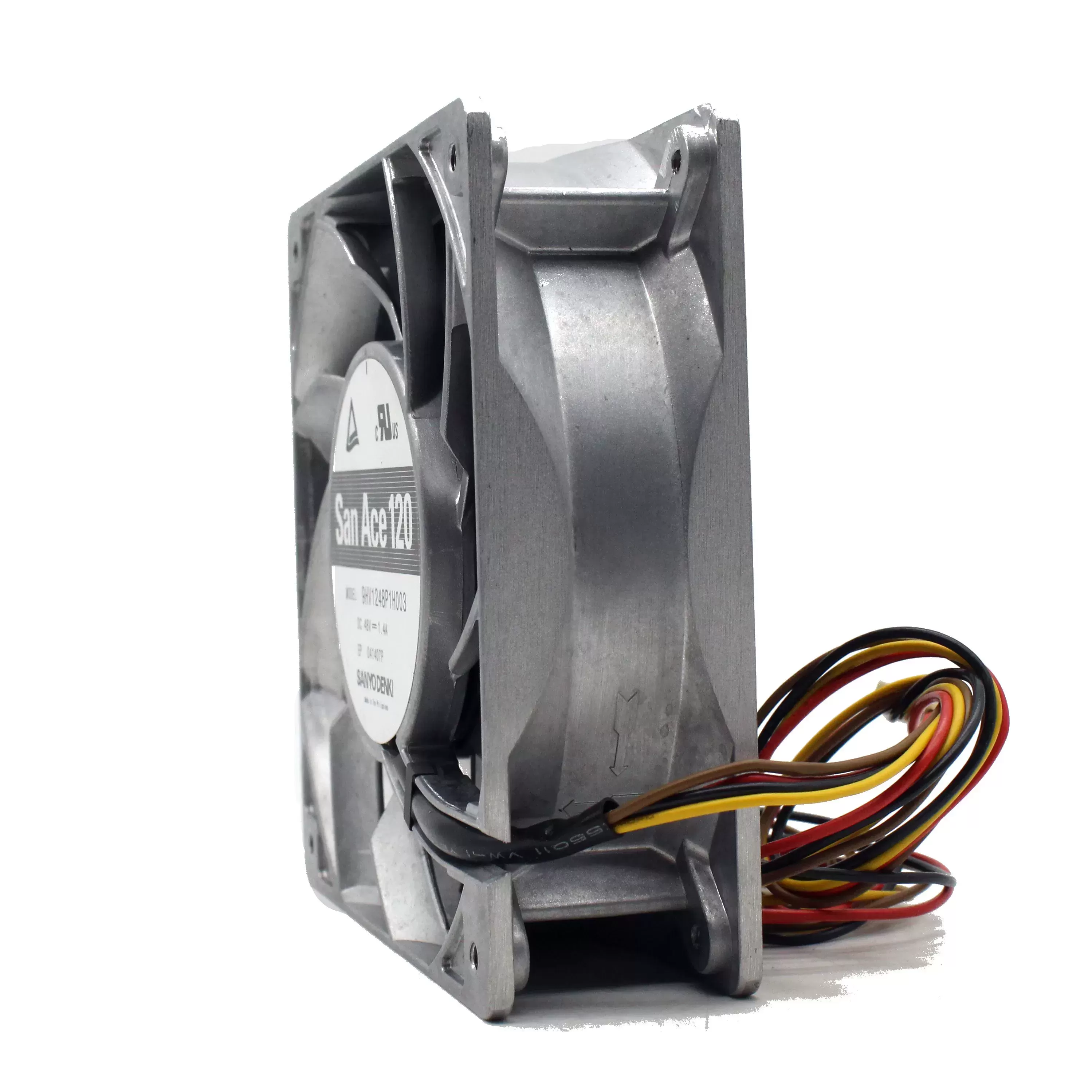

The Sanyo Denki 9HV1248P1H003 is a powerful 120x120x38mm DC axial fan engineered for ultra-high static pressure applications, making it ideal for demanding thermal management in servers, storage systems, telecommunications equipment, and power supplies. Operating on a 48V DC power supply, this fan typically draws 1.4A of current, consuming 67W of power. It achieves an impressive rotational speed of 10000 RPM, delivering a very high airflow of 7.2 m³/min (254 CFM) and a static pressure of 1050 Pa (4.22 in H₂O). With a noise level of 72 dB(A) and utilizing durable ball bearings, this model offers a long operational life of 40,000 hours at 60°C. It includes advanced features like PWM control for speed regulation and a pulse sensor (tachometer output) for monitoring, ensuring precise and reliable cooling in critical environments.
9HV1248P1H003 Fan Parameters
Model Number: 9HV1248P1H003
Manufacturer: Sanyo Denki
Series: San Ace 120
Type: DC Axial Fan
Dimensions: 120mm x 120mm x 38mm
Rated Voltage: 48 VDC
Operating Voltage Range: 36 VDC to 60 VDC
Rated Current: 1.4 A
Rated Power: 67 W
Speed: 10000 RPM
Airflow: 7.2 m³/min (254 CFM)
Static Pressure: 1050 Pa (4.22 in H₂O)
Noise Level: 72 dB(A)
Bearing Type: Ball Bearing
Life Expectancy: 40,000 hours (at 60°C, rated voltage, continuous operation in free air)
Frame Material: Aluminum
Blade Material: Plastic (UL 94V-0 flammability rating)
Termination: 4 Wire Leads
Features: PWM Control Function, Pulse Sensor (Tachometer Output), Locked Rotor Burnout Protection
Operating Temperature: -20°C to +70°C
Safety Standards: UL, TUV, CSA
Application: Servers, storage systems, telecommunications equipment, power supplies, air purification, and other ultra-high static pressure cooling applications.
