Description

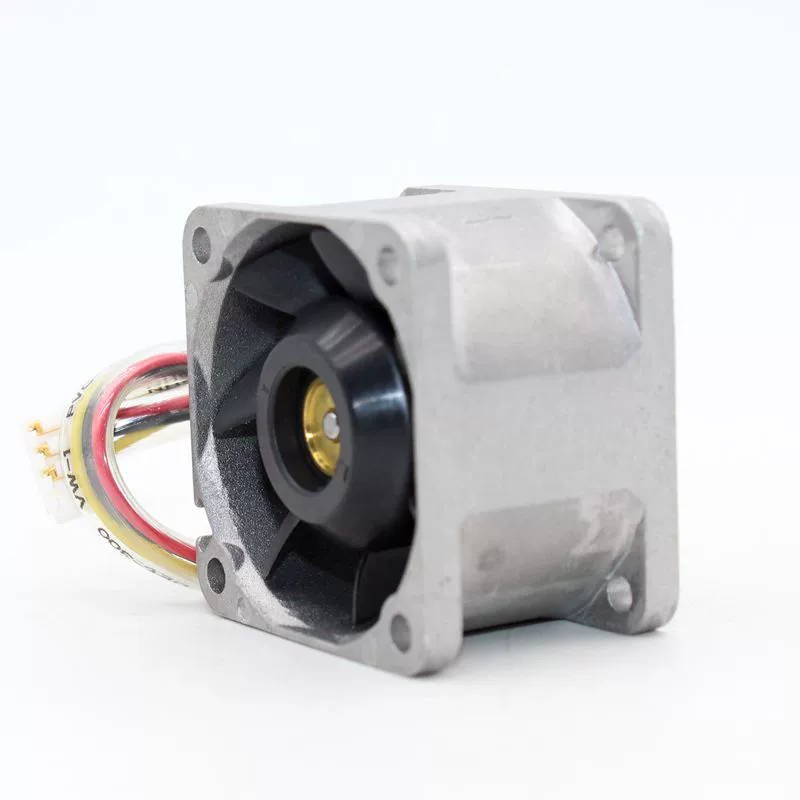

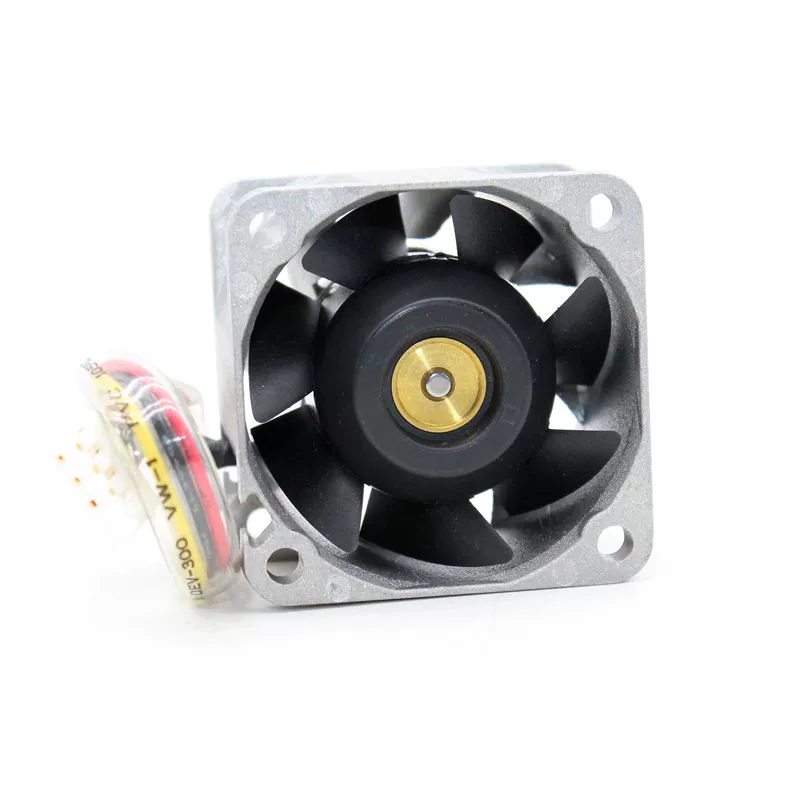

The Sanyo Denki 9L0412H301 is a compact 40x40x28mm DC axial fan designed for effective thermal management in space-constrained electronic devices and equipment. Operating on a 12V DC power supply, this fan precisely draws 0.15A of current, consuming 1.8W of power. Equipped with 3-wire leads, this model is a reliable solution for various cooling applications in small electronics.
9L0412H301 Fan Parameters
Model Number: 9L0412H301
Manufacturer: Sanyo Denki
Series: San Ace 40
Type: DC Axial Fan
Dimensions: 40mm x 40mm x 28mm
Rated Voltage: 12 VDC
Voltage Range: 6 VDC to 13.8 VDC
Rated Current: 0.15A
Rated Power: 1.8 W
Bearing Type: Ball Bearing
Life Expectancy: 60,000 hours (at 60°C, rated voltage, continuous operation in free air)
Frame Material: Plastic (UL 94V-0 flammability rating)
Blade Material: Plastic (UL 94V-0 flammability rating)
Termination: 3 Wire Leads (with pulse sensor/tachometer output)
Features: Locked Rotor Protection
Operating Temperature: -10°C to +70°C
Safety Standards: UL, TUV, CSA
Application: Small electronic devices, networking equipment, servers, industrial control systems, medical equipment, 1U rack-mount units.
