9WF0424F6D04 Sanyo Denki 24V DC Axial Fan

Description

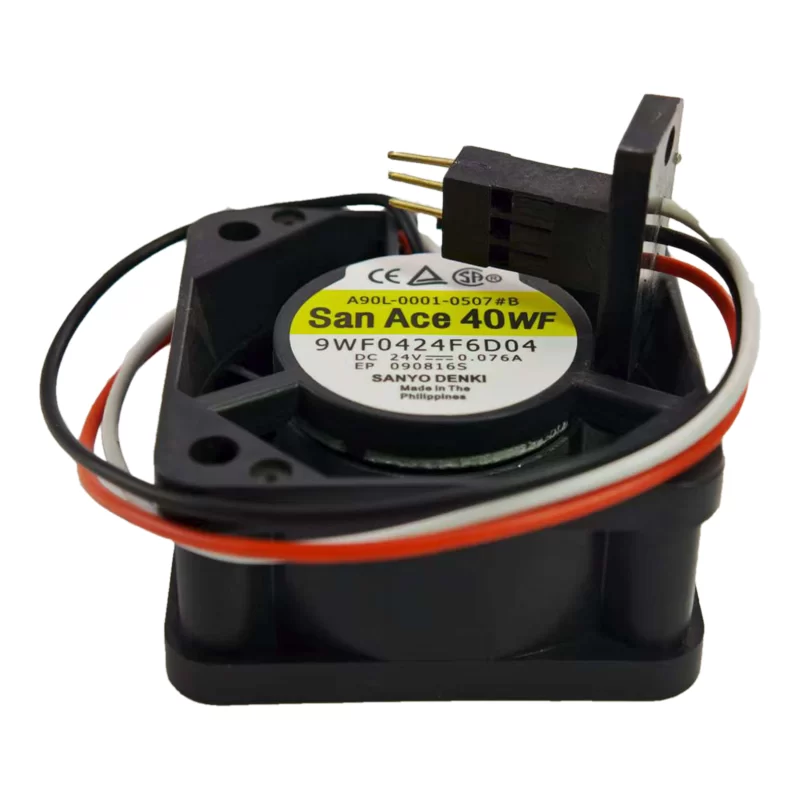

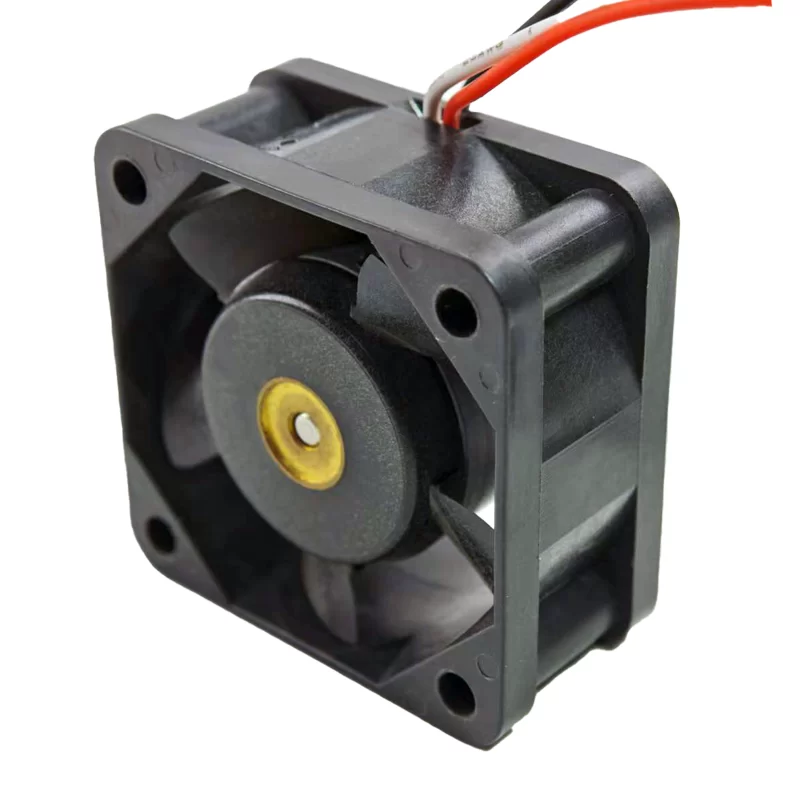

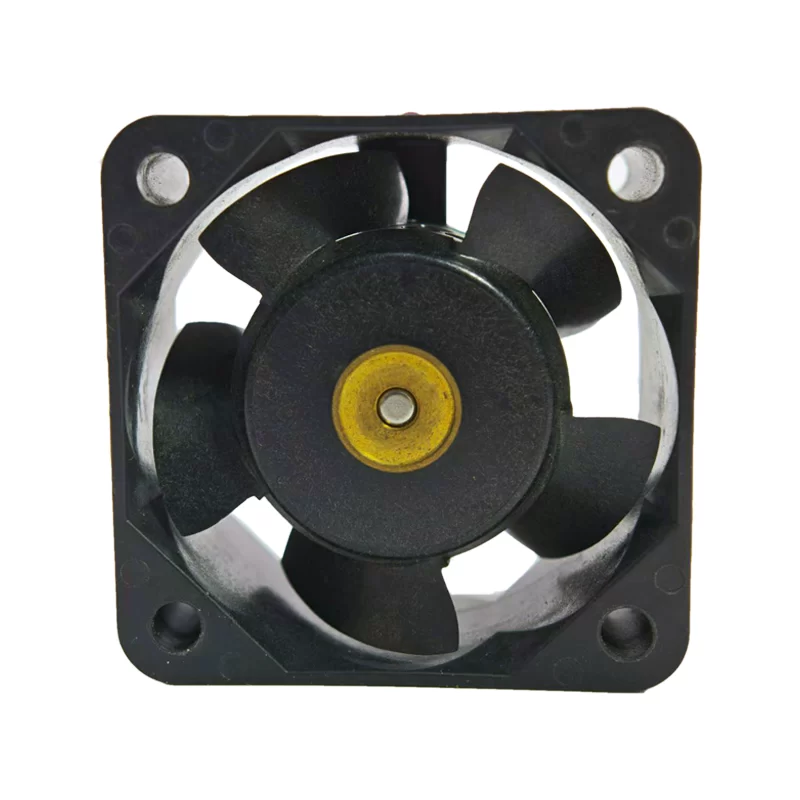

The Sanyo Denki 9WF0424F6D04 is a 24V DC Axial Fan with dimensions of 40x40x20mm, belonging to the SanAce40WF series. It draws 0.076A. This fan features durable ball bearings, and its frame and impeller are constructed from plastic. It includes motor protection against locked rotor and reverse polarity, and comes with a 3-wire termination that provides a pulse sensor output for speed monitoring. This model is specifically applied in Fanuc machines, such as the Fanuc model A90L-0001-0507#B, making it suitable for compact industrial electronics, automation systems, and other critical cooling applications.

9WF0424F6D04 Fan Parameters
Model: 9WF0424F6D04
Manufacturer: Sanyo Denki
Type: DC Axial Fan
Dimensions: 40 x 40 x 20 mm
Nominal Voltage: 24 V DC
Operating Voltage Range: 10.2 .. 27.6 V DC
Rated Current: 0.076 A
Bearing Type: Ball Bearing
Frame Material: Plastic (UL94V-0 PBT)
Impeller Material: Plastic (UL94V-0 PBT)
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 70 °C
Life Expectancy: 40000 h at 60°C
Series: SanAce40WF
Termination: 3-wire leads
Motor Protection: Locked Rotor Burnout Protection, Reverse Polarity Protection
Features: Pulse Sensor
Approval: UL, CSA, TUV, CE
Application: Fanuc machines (model A90L-0001-0507#B), compact industrial electronics, automation systems, and other critical cooling solutions.
