Description

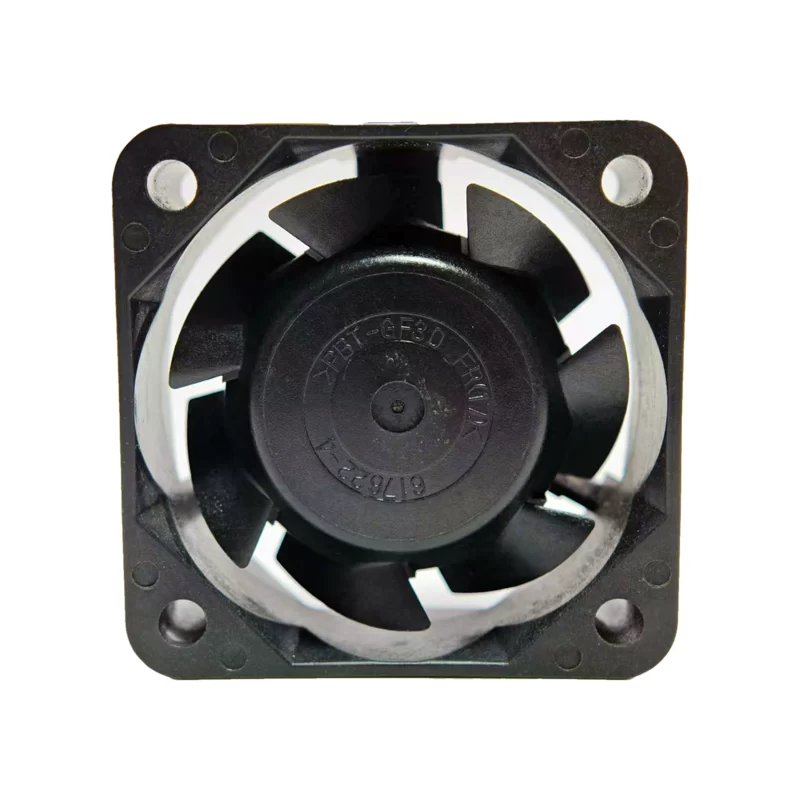

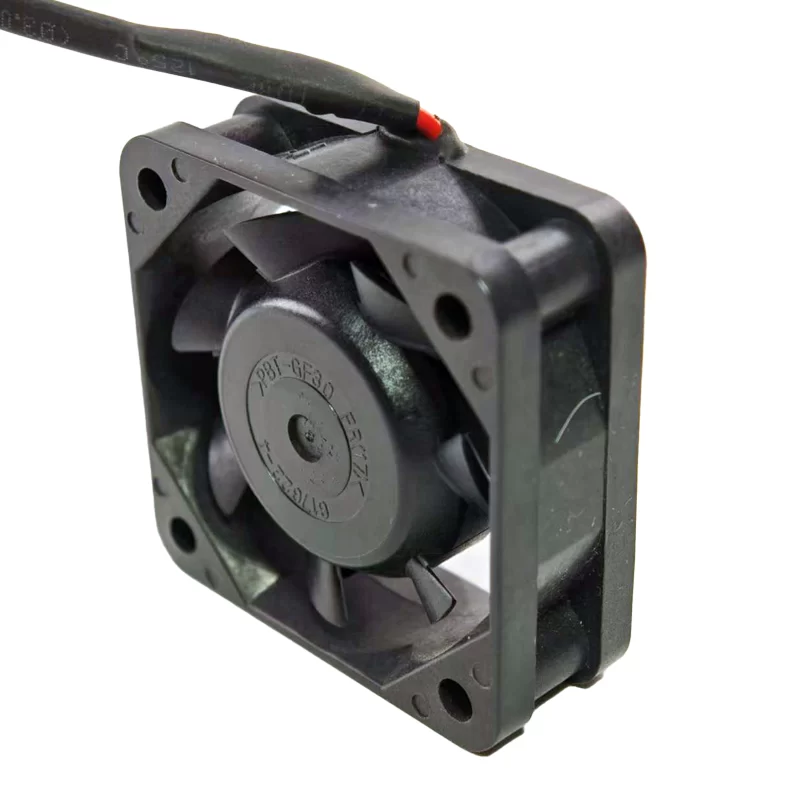

The Sanyo Denki 9WF0424H701 is a compact, high-performance 24V DC Axial Fan with dimensions of 40x40x15mm. It operates on 24V, drawing 0.085A of current and consuming 2.04W of power, within a versatile voltage range of 10.0 to 27.6V. This fan achieves a high speed of 11300RPM, delivering a robust airflow of 11.40m³/h (6.71CFM) with an impressive static pressure of 79.43Pa (8.1MMAQ), and operates with a noise level of 38dB(A). Featuring durable ball bearings and integrated locked rotor burnout with reverse polarity protection, it is engineered for reliable and efficient thermal management in demanding, space-constrained applications like compact servers, advanced networking devices, and other high-density electronic equipment. This version comes with 3-wire leads for connection.
9WF0424H701 Fan Parameters
Model: 9WF0424H701
Manufacturer: Sanyo Denki
Type: DC Axial Fan
Dimensions: 40 x 40 x 15 mm
Nominal Voltage: 24 V
Operating Voltage Range: 10.0 to 27.6 V
Rated Current: 0.085 A
Power Consumption: 2.04 W
Speed: 11300 RPM
Airflow: 11.40 m³/h (6.71 CFM)
Static Pressure: 8.1 MMAQ (79.43 Pa / 0.319 IN H2O)
Noise Level: 38 dB(A)
Weight: 35 g
Bearing Type: Ball Bearing
Frame Material: Plastic (PBT)
Impeller Material: Plastic (PBT)
Min. Ambient Temperature: -20 °C
Max. Ambient Temperature: 70 °C
Life Expectancy: 40000 h at 60°C

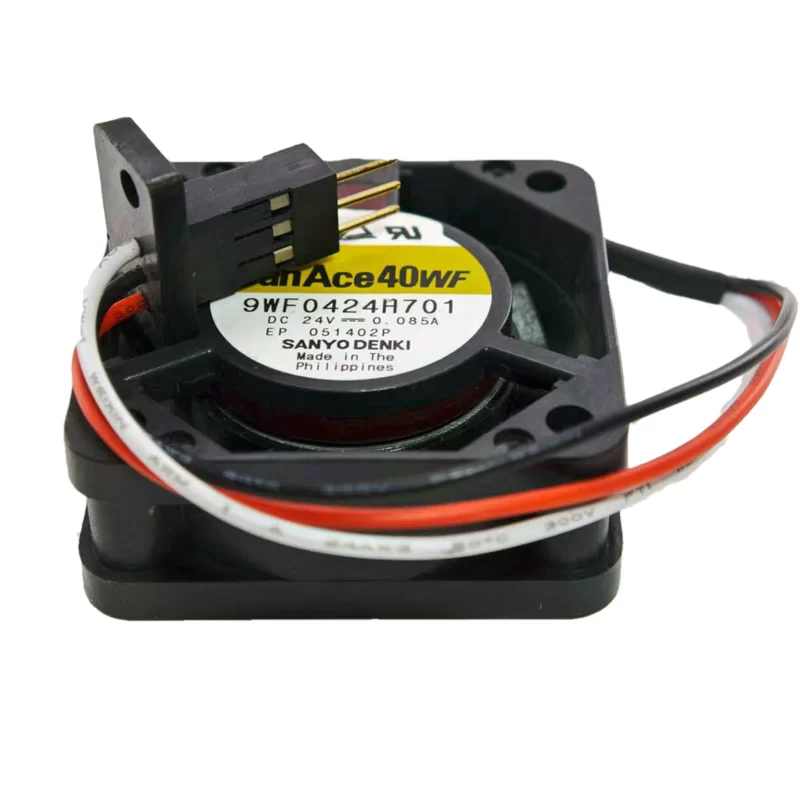

Termination: 3-wire leads
Motor Protection: Locked rotor burnout protection, Reverse polarity protection
Approval: CE, RoHS
Application: Compact servers, networking devices, and other applications requiring high-performance cooling solutions.
