Description

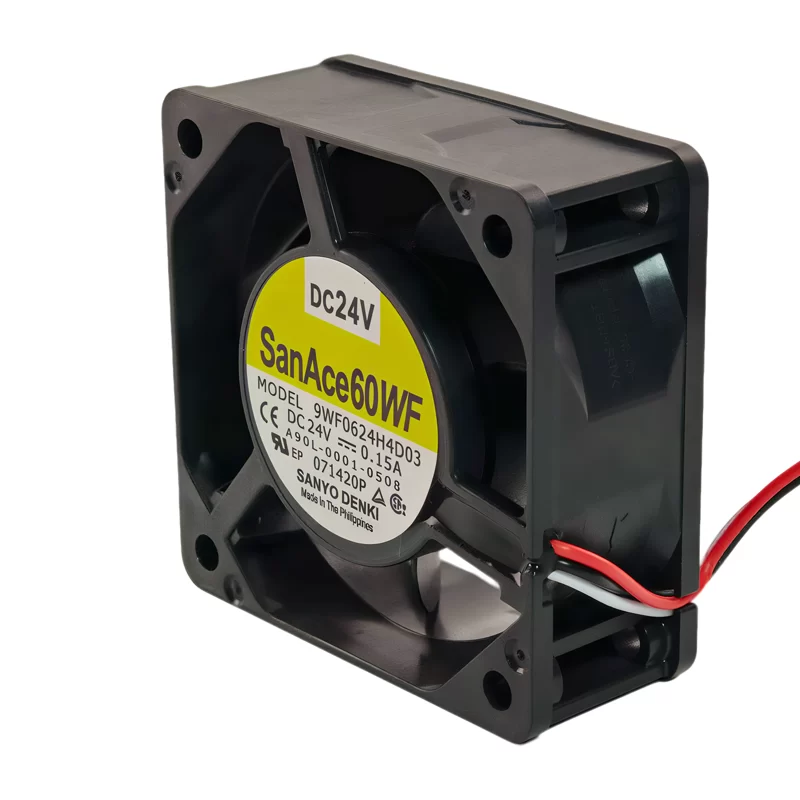

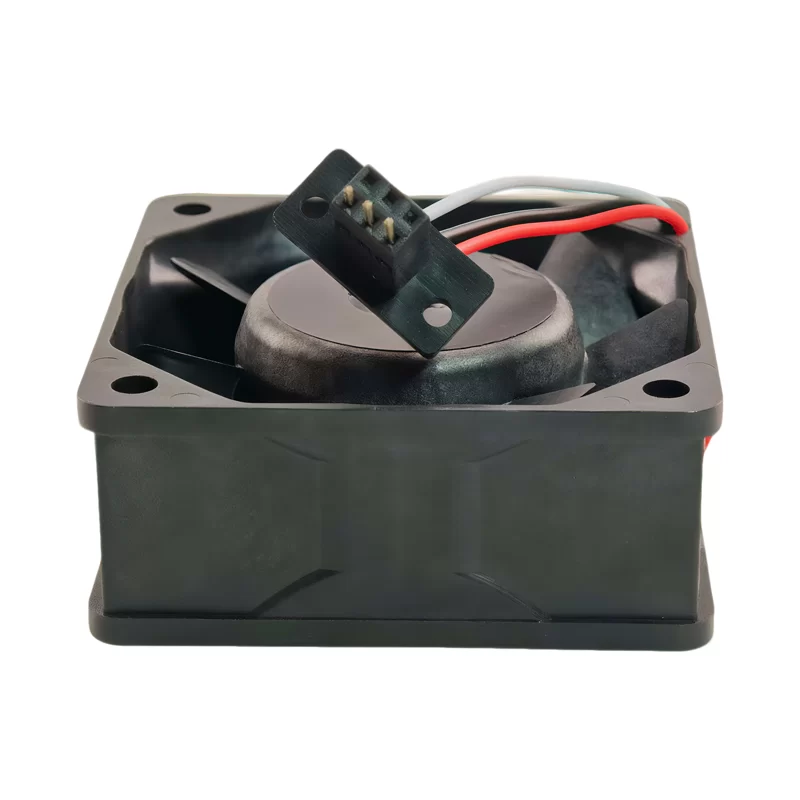

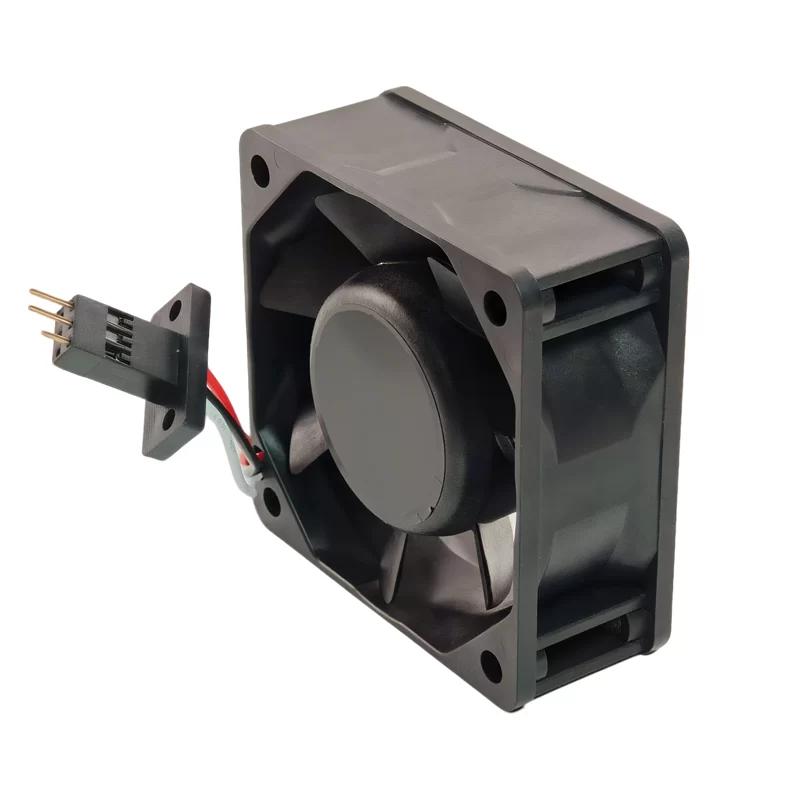

The Sanyo Denki 9WF0624H4D03, an equivalent to the Fanuc model A90L-0001-0508, is a high-performance 24VDC axial fan with dimensions of 60x60x25mm. It is designed for efficient cooling in compact electronic devices, providing 23.6CFM (40.1m³/h) of airflow and generating 0.38inchH₂O (94.7Pa) of static pressure. Operating at 6500RPM, the fan consumes 3.6W of power and is built with durable plastic materials. It is equipped with ball bearings for a long and reliable lifespan. Its 3-wire termination provides a tachometer signal for speed monitoring. It is commonly used for cooling server components, telecommunications equipment, and industrial controls.
9WF0624H4D03 Fan Parameters
Manufacturer: Sanyo Denki
Model: 9WF0624H4D03
Fanuc Model: A90L-0001-0508
Fan Type: DC Axial Fan
Dimensions: 60 x 60 x 25 mm
Rated Voltage: 24 VDC
Current Rating: 0.15 A
Power Consumption: 3.6 W
Airflow: 23.6 CFM (40.1 m³/h)
Static Pressure: 0.38 inch H₂O (94.7 Pa)
Speed: 6500 RPM
Noise Level: 41 dB(A)
Bearing Type: Ball Bearing
Termination: 3 Wire Leads
Features: Speed Sensor (Tachometer/FG signal)
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -20 °C ~ 60 °C
Weight: 110 g
Application: This Sanyo Denki DC axial fan is suitable for cooling server components, telecommunications equipment, and industrial controls.
