Description

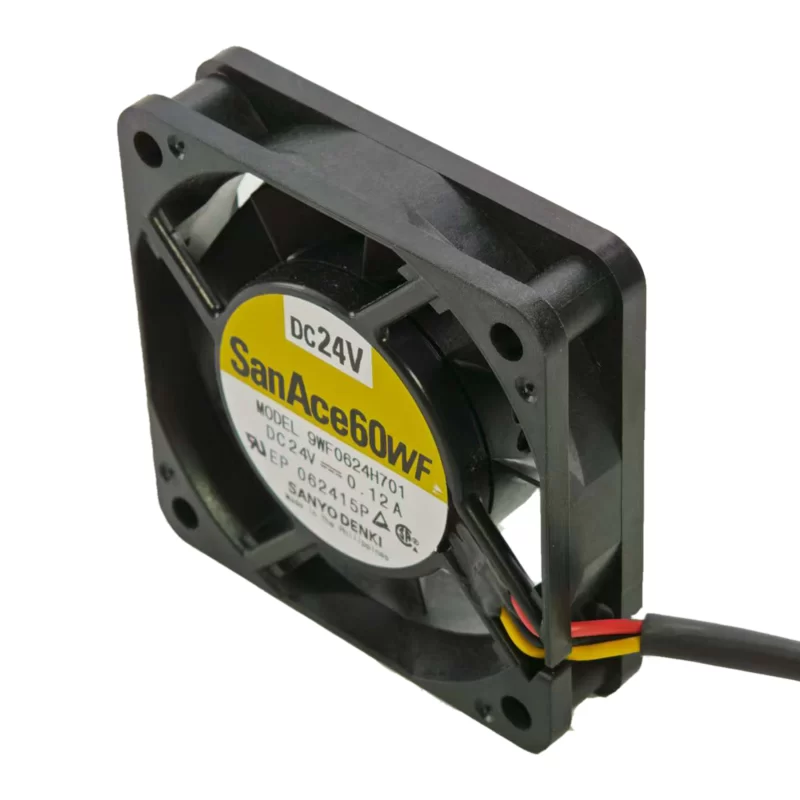

The Sanyo Denki 9WF0624H701 is a DC Axial Fan with dimensions of 60x60x25mm, operating on 24VDC. It draws 0.12A of current and consumes 2.88W of power. This fan achieves a high speed of 6800 RPM, generating an airflow of 18.3 CFM and a static pressure of 0.38 Inch-H2O. Featuring a durable ball bearing system and a 3-wire lead with a pulse sensor, this fan offers a long life expectancy of 40,000 hours at 60°C, making it a reliable solution for electronics cooling in various industrial and telecommunications applications.
9WF0624H701 Fan Parameters
Model: 9WF0624H701
Manufacturer: Sanyo Denki
Type: DC Axial Fan
Dimensions: 60 x 60 x 25 mm
Weight: 60 g
Rated Voltage: 24 VDC
Current Draw: 0.12 A
Power Input: 2.88 W
Fan Speed: 6800 RPM
Airflow: 18.3 CFM
Static Pressure: 0.38 Inch-H2O
Noise Level: 44 dB(A)
Bearing Type: Ball Bearing
Termination: 3-wire lead
Life Expectancy: 40,000 hours at 60°C
Application: Industrial machinery, Telecommunications equipment, Electronics cooling in harsh environments
