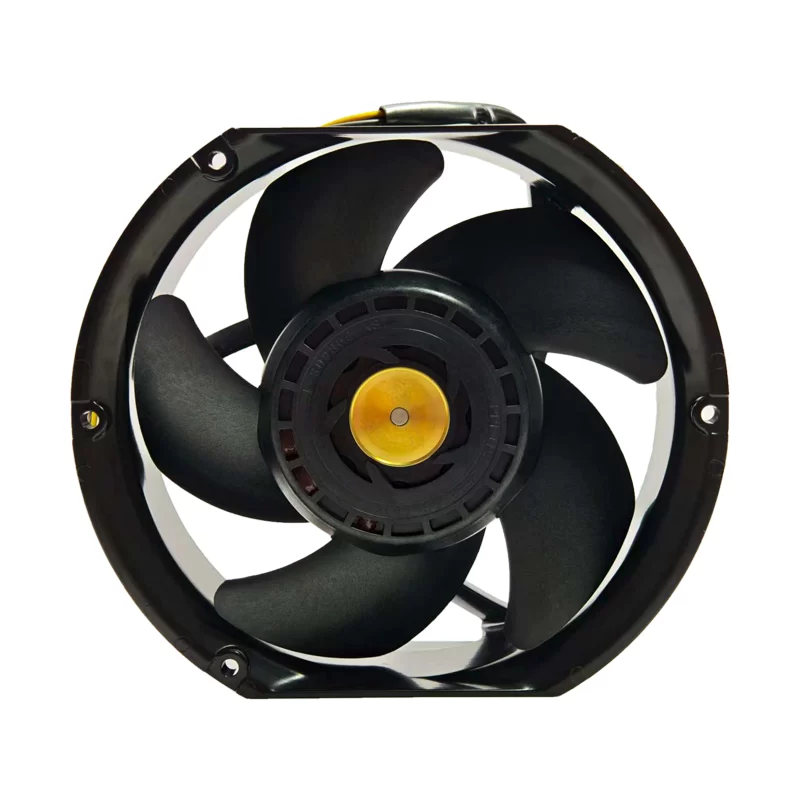

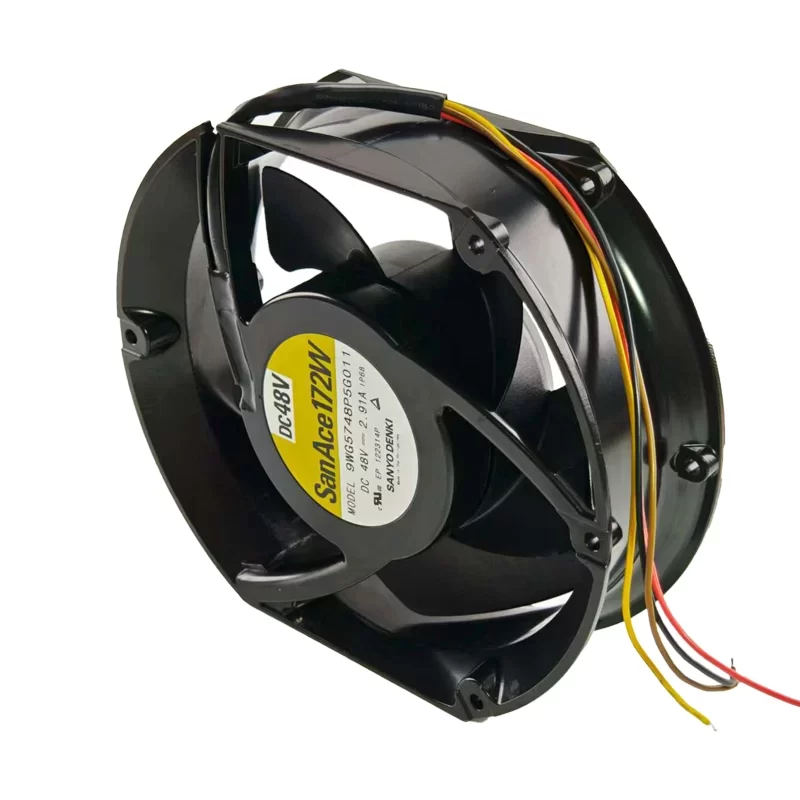

9WG5748P5G011 Sanyo Denki 48V DC Axial Fan

Description

The Sanyo Denki 9WG5748P5G011 is a robust and powerful DC axial fan with dimensions of 172 x 150 x 60 mm, designed for demanding cooling applications. From the SanAce172W series, this fan operates at 48V DC, drawing 2.91 A and consuming 140 W of power. It delivers an impressive airflow of 546 CFM with a significant static pressure of 4.02 inchH2O at a high speed of 8600 RPM. Its construction includes a sealed IP68 rating, making it suitable for harsh environments, and it is terminated with four-wire leads for standard functionality.

9WG5748P5G011 Fan Parameters
Manufacturer: Sanyo Denki
Model: 9WG5748P5G011
Fan Type: DC Axial Fan
Series: SanAce172W
Dimensions: 172 x 150 x 60 mm
Rated Voltage: 48V DC
Current Rating: 2.91 A
Power Consumption: 140 W
Airflow: 546 CFM
Static Pressure: 4.02 inchH2O
Speed: 8600 RPM
Noise Level: 78 dB(A)
IP Rating: IP68
Termination: 4-Wire Leads
Housing Material: Metal (Die-cast aluminum likely, typical for this series)
Impeller Material: Plastic
Weight: 860 g

Application
The 9WG5748P5G011 fan is ideal for applications requiring high airflow and static pressure in challenging environments, such as in industrial equipment, server cooling, telecommunications, high-performance computing, and specialized machinery where dust and water ingress protection is critical.
