9WG5748P5H003 SANYO DENKI 48VDC Axial Fan IP68

Description

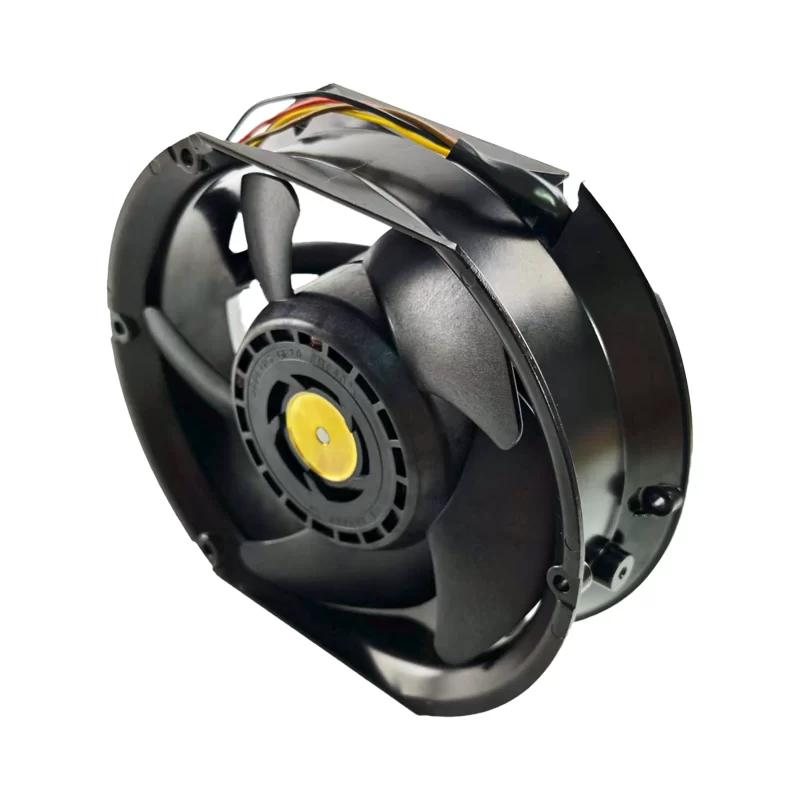

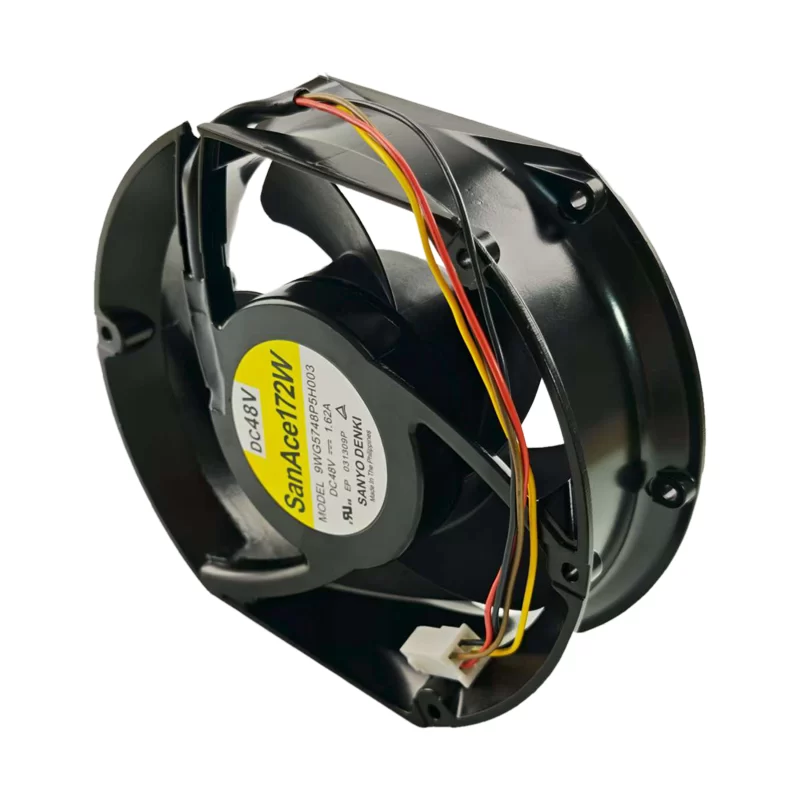

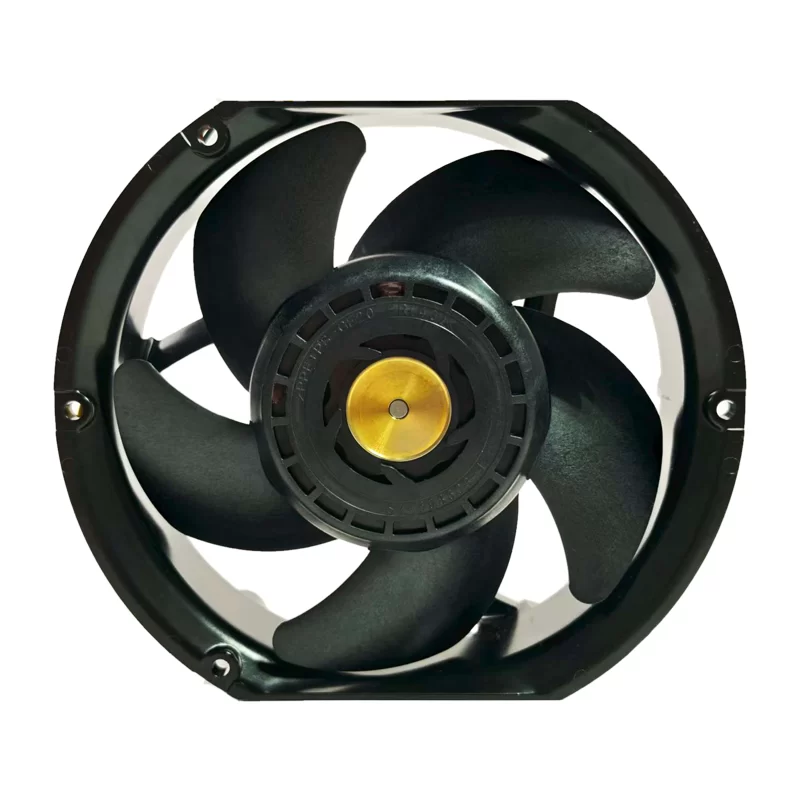

The SANYO DENKI 9WG5748P5H003 is a robust and powerful DC Axial Fan designed for demanding environments and high thermal loads. Measuring 172 x 150 x 51 mm (Sidecut type), this model operates at a nominal voltage of 48 V DC with a rated current of 1.62 A and input power of 78 W. The fan utilizes a reliable Ball Bearing system to achieve a high speed of 6500 RPM, producing a maximum airflow of approximately 410 CFM (11.6 m3/min) and a high static pressure of 3.09 inH2O (770 Pa). Key features include Splash Proof (IP68) protection against dust and water, PWM control for speed regulation, and a Pulse Sensor (Tachometer) output for monitoring. It is equipped with four wire leads and generates a noise level of 71 dB(A).

9WG5748P5H003 Fan Parameters
Manufacturer: SANYO DENKI
Model: 9WG5748P5H003
Series: SanAce172W
Fan Type: DC Axial Fan
Dimensions: 172 x 150 x 51 mm
Rated Voltage: 48 V DC
Operating Voltage Range: 40.8 V to 55.2 V DC
Rated Current: 1.62 A
Input Power: 78 W
Rated Speed: 6500 RPM
Airflow: 410 CFM
Static Pressure: 3.09 inH2O
Noise Level: 71 dB(A)
Bearing Type: Ball Bearing
Termination: 4 Wire Leads
Features: PWM Control, Pulse Sensor (Tachometer), Locked Rotor Protection, Splash Proof (IP68)
Frame Material: Aluminum
Mass: 860 g
Expected Life: 40000 hours/60 °C

Application
The 9WG5748P5H003 fan’s extreme performance, high static pressure, and robust IP68 rating make it ideal for cooling equipment in harsh or outdoor conditions. Typical applications include telecom power supplies, high-density server equipment, inverter fans (for variable frequency drives), industrial control cabinets, and other systems requiring superior thermal management with environmental protection.
