Description
The Sanyo Denki 9WL0412P3J001 is a high-performance DC Axial Fan with measuring dimensions of 40 x 40 x 28 mm. It operates on a 12 VDC rated voltage, delivering a maximum airflow of 37.8 m³/h (0.63 m³/min) and a high maximum static pressure of 400 Pa (1.61 inAq). The fan achieves a high speed of 17500 RPM with a rated input of 6.24 W and a noise level of 51 dB(A). A key feature is its IP68 ingress protection rating, making it highly resistant to dust and water splashes, suitable for outdoor equipment or applications exposed to harsh environments, such as PV inverters and base station cooling. It also includes both a Pulse sensor (Tachometer) and a PWM control function for speed management.
Fan Parameters
Model: 9WL0412P3J001
Manufacturer: Sanyo Denki
Type: DC Axial Fan (Splash Proof Fan)
Dimensions: 40 x 40 x 28 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 10.8 ~ 13.2 VDC
Rated Current: 0.52 A
Rated Input: 6.24 W
Rated Speed: 17500 RPM
Max. Airflow: 37.8 m³/h (0.63 m³/min)
Max. Static Pressure: 400 Pa (1.61 inAq)
Noise Level: 51 dB(A)
Bearing Type: Ball Bearing
Frame Material: Aluminum
Mass: 70 g
Expected Life: 150000 Hours @ 60°C (185000 Hours @ 40°C)
Operating Temperature: -20 ~ +70 °C
IP Rating: IP68 (Dust tight and protected against continuous immersion)
Control Function: PWM Control
Sensor Type: Pulse sensor (Tachometer)
Termination: 4 Wire Leads
Application
This fan is part of the San Ace 40W 9WL series and is specifically designed for use in harsh environments where protection against dust and water is essential. Typical applications include cooling PV (photovoltaic) inverters, base station equipment, outdoor cabinets, and other devices installed in exposed or outdoor locations that require high static pressure for effective cooling.

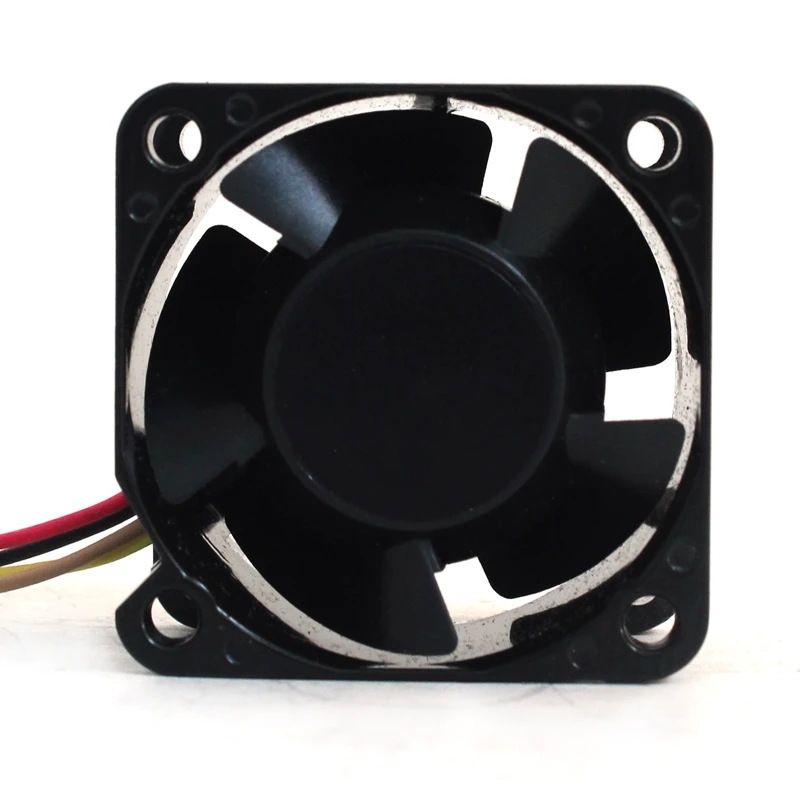

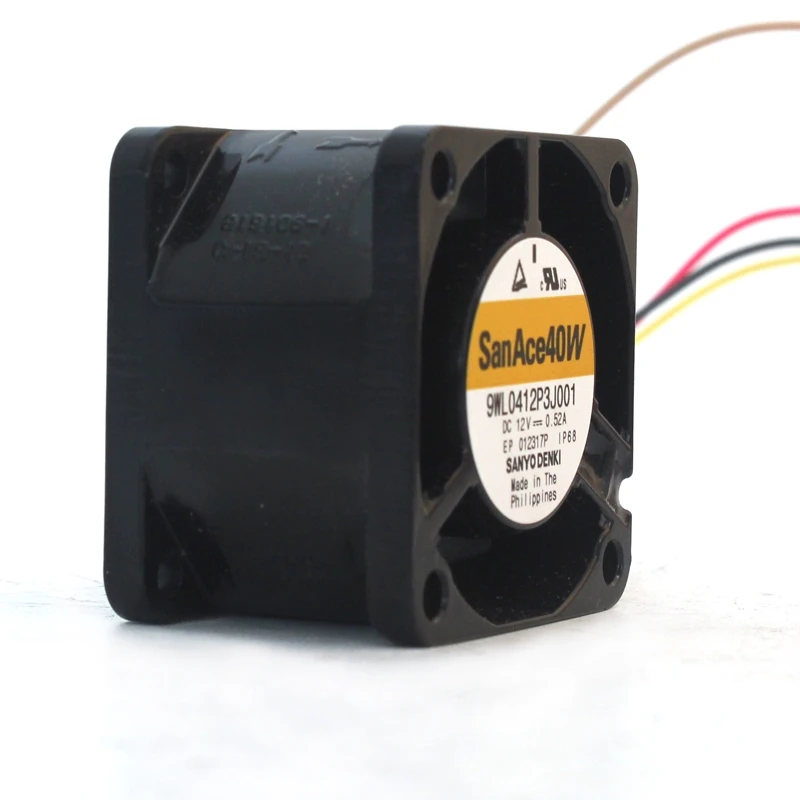

Genuine Sanyo 4028 IP68 waterproof 12V 9WL0412P3J001 4-wire metal frame cooling fan
