Description
Manufacturer: Sanyo Denki
Product Model: 9WP0812G401
Dimensions L x W x H: 80 x 80 x 25 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 10.8 V to 13.2 VDC
Rated Current: 0.38 A
Rated Power: 4.56 W
Rated Speed: 4,500 RPM
Max Airflow: 53 CFM
Max Static Pressure: 0.323 In H₂O
Noise Level: 40 dB(A)
Bearing Type: Ball Bearing
Life Expectancy L10: 40,000 hours @ 60°C
Weight: 130 g
Housing Material: Plastic UL 94V-0
Impeller Material: Plastic UL 94V-1
Termination Style: 3 Wire Leads
Motor Protection Functions: Locked Rotor Burnout Protection, Reverse Polarity Protection
Ingress Protection: IP68
Dielectric Strength: 50/60 Hz, 500 VAC for 1 minute
Insulation Resistance: 10 MΩ or more
Operating Temperature Range: -20°C to +60°C
Storage Temperature Range: -30°C to +70°C
Features: Speed Sensor, Splash Proof
Compliance: CSA, TUV, UL
9WP0812G401 Japanese Sanyo SANYO DC12V 0.38A SanAce three-wire 8025 waterproof fan

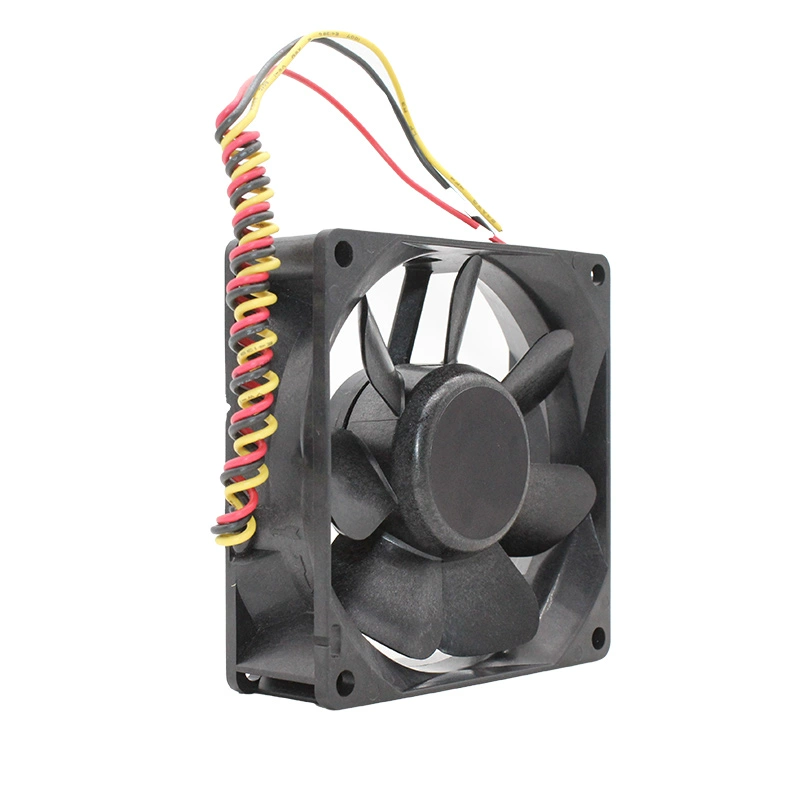

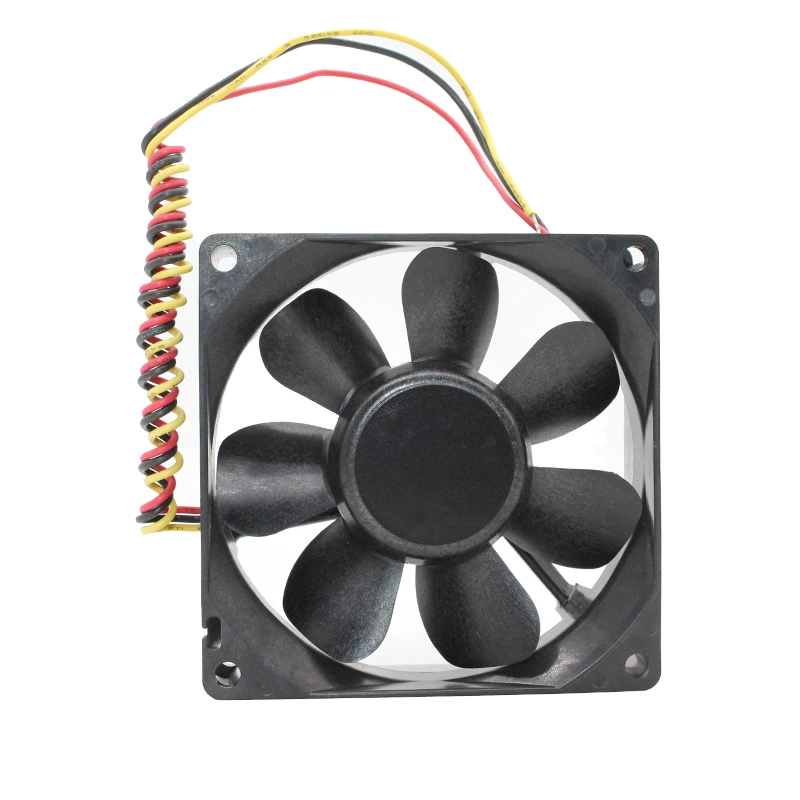

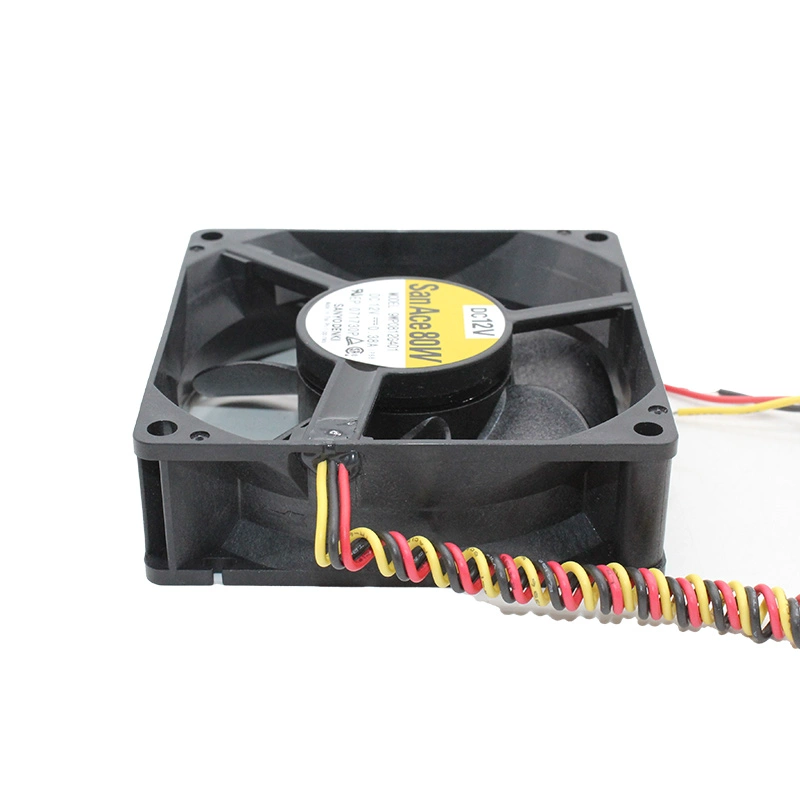

The Sanyo Denki 9WP0812G401 is a high-performance, 80x80x25mm, 12V DC axial fan engineered for durability in harsh environments, boasting an IP68 rating for superior dust and water resistance. It provides robust cooling with a 4,500 RPM speed and 53 CFM airflow, while its ball bearings ensure a significant 40,000-hour lifespan at 60°C. Equipped with tachometer output and comprehensive motor protection, this fan is designed for reliable, monitored operation in applications where environmental resilience is critical.
