Description

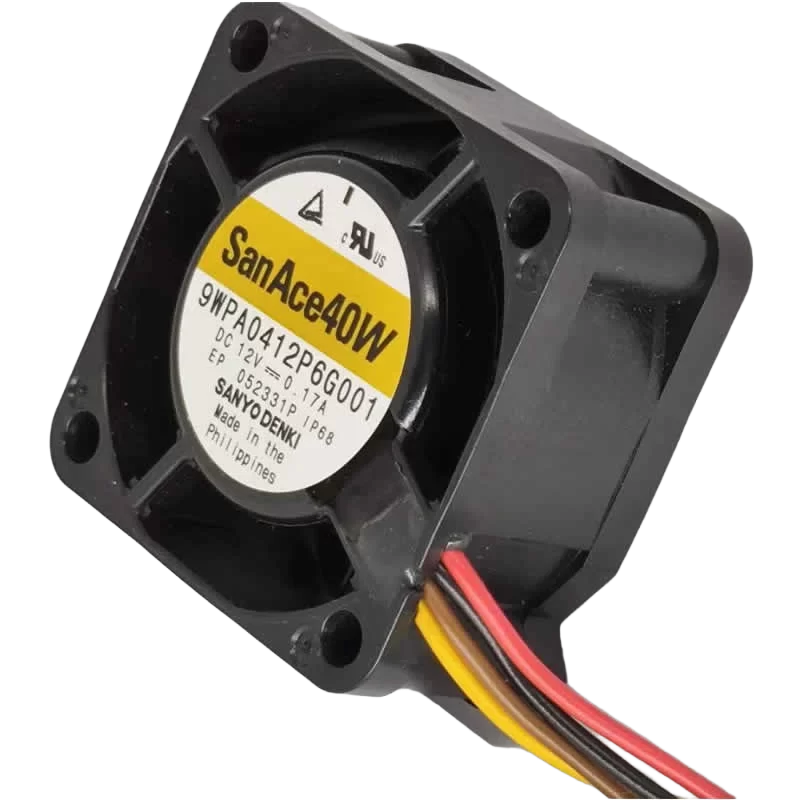

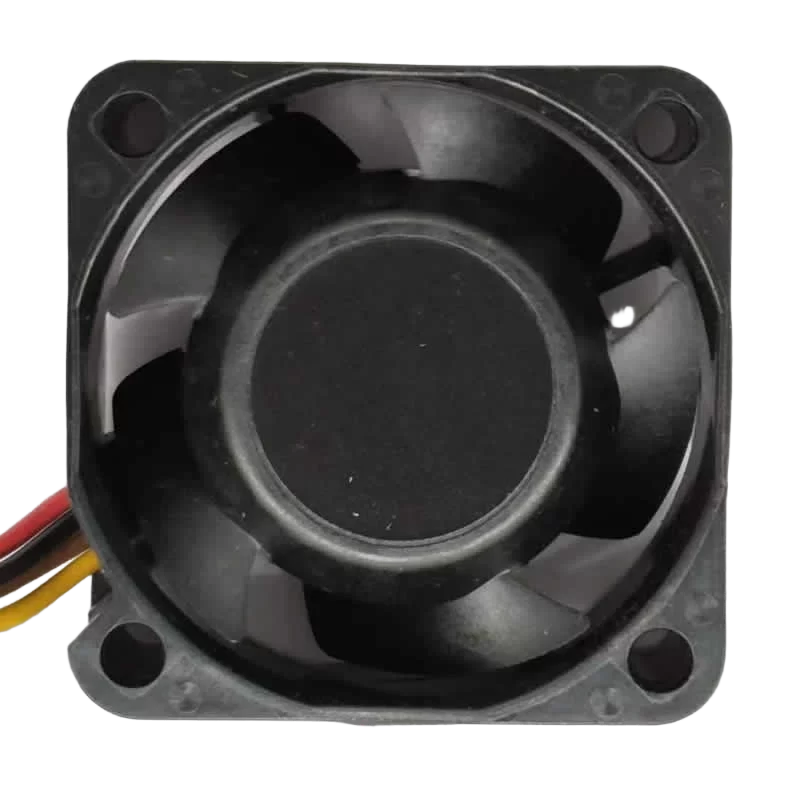

The Sanyo Denki 9WPA0412P6G001 is a high-performance, 12 VDC DC Axial Fan measuring 40×40×20 mm. It is a specialized, splash and dust-proof model with an IP68 rating, ensuring stable operation in harsh environments. This fan delivers a high airflow of 22.8 m3/h and a static pressure of 210 Pa at a speed of 13,700 RPM. The fan has a low-power rating of 2.0 W (0.17 A) and features both PWM control and a Pulse sensor (Tachometer) for precise system monitoring and speed regulation.
9WPA0412P6G001 Fan Parameters
Model: 9WPA0412P6G001
Manufacturer: Sanyo Denki
Fan Type: DC Axial Fan
Dimensions: 40×40×20 mm
Nominal Voltage: 12 VDC
Operating Voltage Range: 10.8 to 13.2 VDC
Rated Current: 0.17 A
Rated Power: 2.0 W
Rated Speed: 13,700 RPM
Airflow: 22.8 m3/h
Static Pressure: 210 Pa
Noise Level: 44 dBA
Bearing System: Ball Bearing
Frame Material: Plastic
Termination Type: 4 Wire Leads (PWM Control, Pulse Sensor)
Protection: Locked Rotor Protection, Reverse Polarity Protection
IP Rating: IP68
Operating Temperature: −20 ∘C to +70 ∘C
Expected Life: 40,000 hours at 60 ∘C
Application
Part of the San Ace 40W series, this fan’s high IP68 rating makes it ideal for cooling equipment in harsh environments where exposure to dust, water, or moisture is a concern. Typical applications include outdoor telecommunications equipment, industrial automation, PV inverters, storage battery systems, and electronic devices in wet or dusty locations.
