A06B-0075-B203 Fanuc servo motor

Description

A06B-0075-B203 Fanuc Brand new original straight shaft servo motor with keys, warranty and spot bargaining

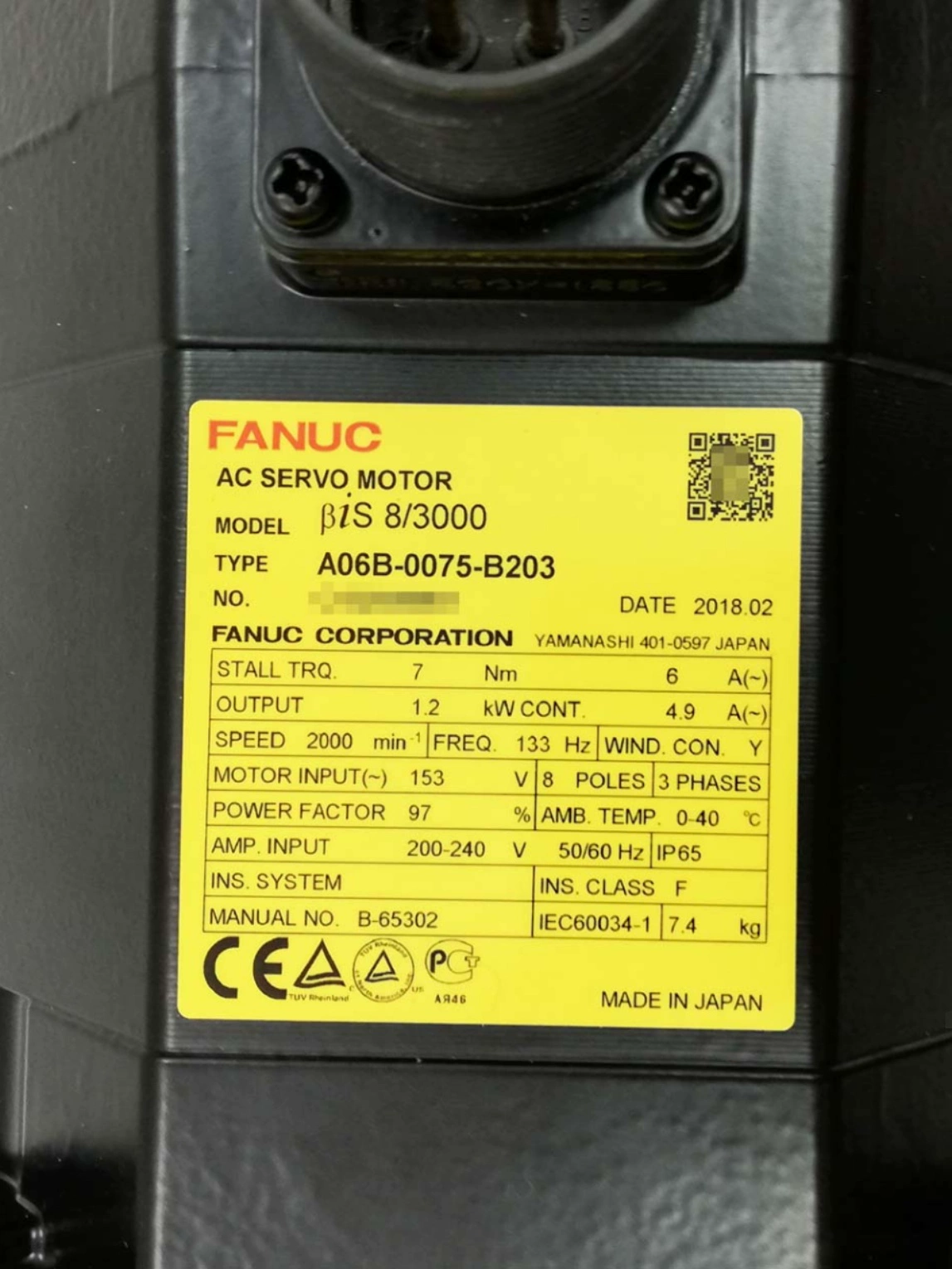

Part Number: A06B-0075-B203
Manufacturer: Fanuc
Motor Type: AC Servo Motor
Model: BiS8/3000
Continuous Output Power: 1.2 kW
Rated Voltage: 153 Volts (AC)
Rated Current: 4.9 Amps
Input Voltage Range: 200-230 Volts (AC), 50/60 Hz
Frequency of Operation: 133 Hz
Rated Speed: 2000 RPM (Rotations Per Minute)
Stall Torque: 7 Nm (Newton-meters)
Shaft Type: Straight Shaft with Keyway
Encoder: B128iA Absolute Encoder (This indicates it provides absolute position feedback)
Weight: Approximately 11-15 kg (24-33 lbs)
Protection Class: IP65 (Common for industrial motors, indicating protection against dust ingress and low-pressure water jets)

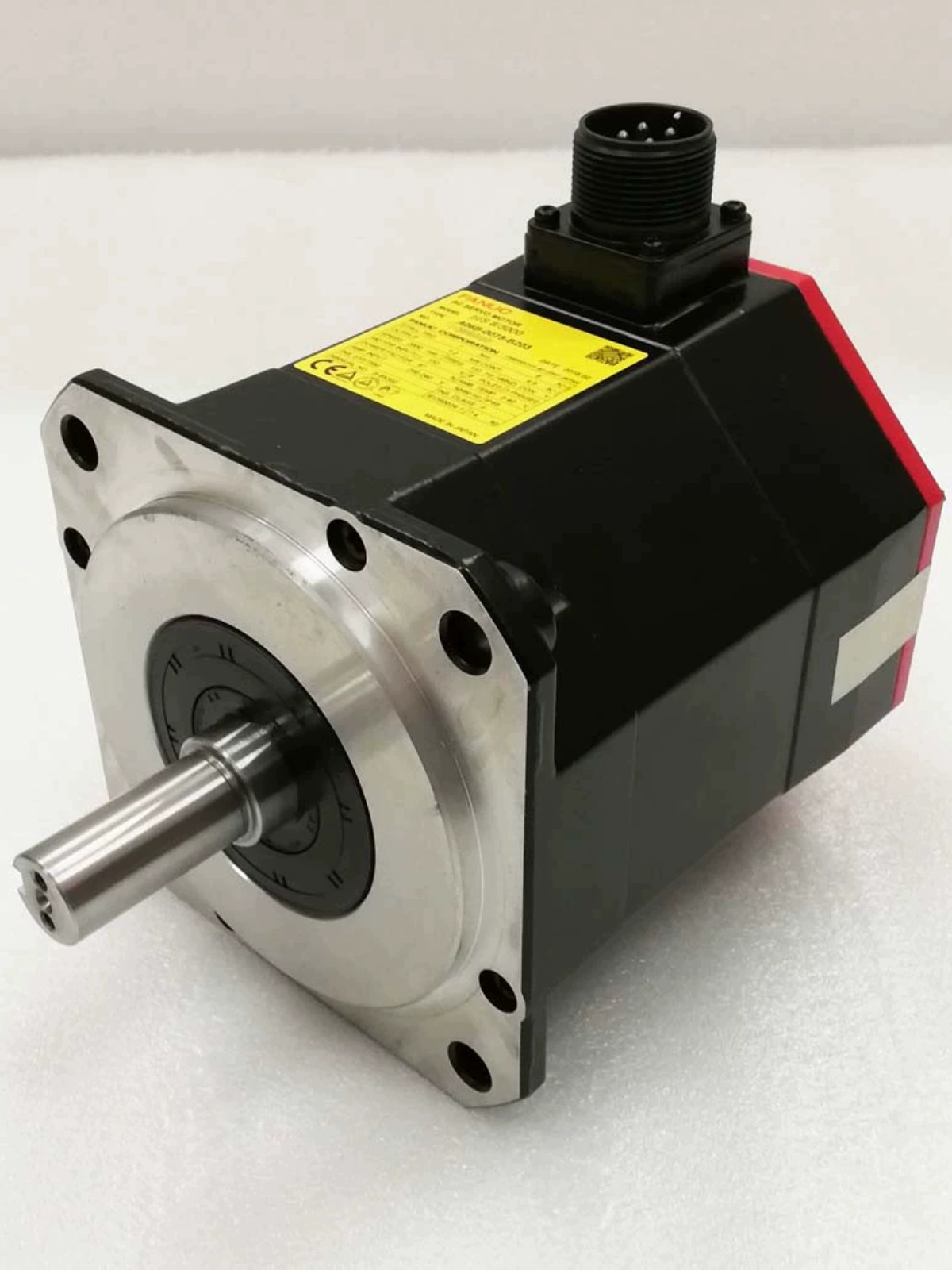

The Fanuc A06B-0075-B203 is a robust and reliable AC Servo Motor from Fanuc’s BiS8/3000 series. Designed for precision motion control in industrial automation, it delivers 1.2 kW of continuous power at 2000 RPM with a 7 Nm stall torque. Operating on 200-230 VAC, this motor is equipped with a straight shaft and keyway for secure coupling and features a B128iA Absolute Encoder for accurate position feedback. Its IP65 rating ensures durability in demanding industrial environments, making it a critical component in various CNC machines and robotic systems where high accuracy and repeatability are essential.
