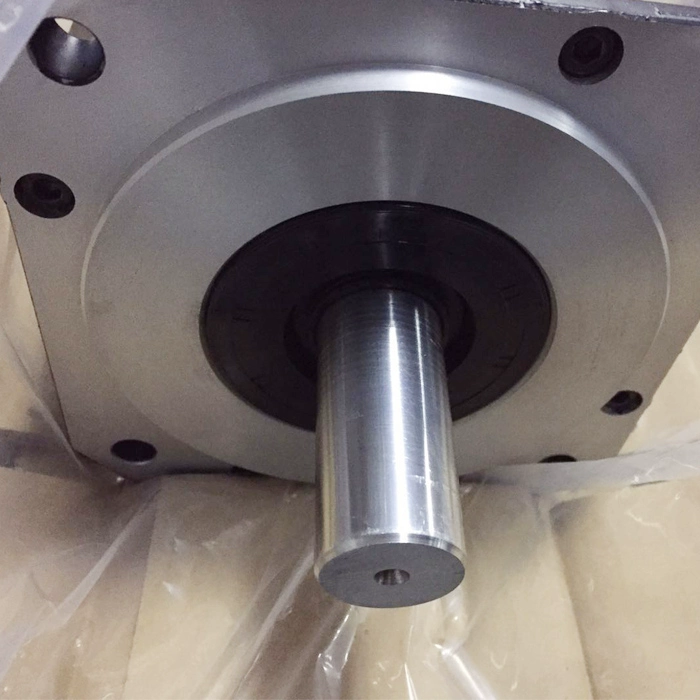

A06B-0238-B100 fanuc servo motor

Description

Part Number: A06B-0238-B100
Series: Alpha iS series
Product Type: AC Servo Motor
Corresponding Motor Model: αiS12/4000
Rated Output: 2.7 kW
Rated Stall Torque: 12 Nm
Rated Speed: 3000 min⁻¹
Maximum Speed: 4000 min⁻¹
Voltage Rating: 168 V
Rated Current: 9.6 A or 13 A
Phase: 3 Phase
Frequency: 200 Hz
Encoder Type: αiA 1000
Shaft Type: Straight, Keyway, Slick Shaft
Mounting Type: Flange Mount
Inertia: Value not specified in public information
Protection Class: IP67
Insulation Class: Class F
Compatible Servo Amplifier: Fanuc Alpha i series servo amplifiers
Physical Dimensions: Standard Fanuc physical frame size for 12 Nm class servo motors
Approximate Mass: Approx. 13.6 kg
A06B-0238-B100 fanuc servo motor original genuine spot
