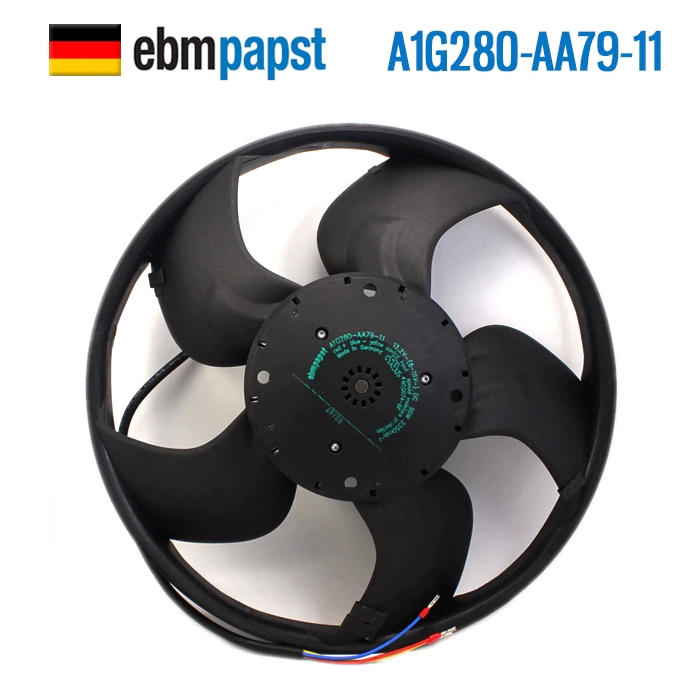

A1G280-AA79-11 ebmpapst 13.2V 90W axial fan

Description

The ebmpapst A1G280-AA79-11 is a high-efficiency EC Axial Fan with a round fan diameter measuring 292 mm and a depth of 77.7 mm. It operates on a low nominal voltage of 13.2 VDC with a maximum power rating of 90 W and a current draw of 6.82 A. The fan achieves a high speed of 2350 RPM and delivers a maximum airflow of 1809.39 $m^3/h$. Built with ball bearings and an IP44 rating, this fan is a high-airflow, compact cooling solution typically used in low-voltage mobile, automotive, and specialized refrigeration applications where energy efficiency and high air movement are critical.

A1G280-AA79-11 Fan Parameters
Model: A1G280-AA79-11
Manufacturer: ebmpapst
Type: EC Axial Fan
Dimensions: 292 mm Diameter x 77.7 mm Depth
Rated Voltage: 13.2 VDC (Nominal 12 VDC System)
Operating Voltage Range: 8 to 16 VDC
Current Rating: 6.82 A
Power Rating: 90 W
Fan Speed: 2350 RPM
Max. Airflow: 1810.2 m³/h (1065 CFM)
Noise Level: 63 dB(A)
Bearing Type: Ball Bearing
Termination: 3-Wire Leads (Includes Tachometer Output)
Housing Material: Die-Cast Aluminum
Impeller Material: Polyamide (PA)
IP Rating: IP44
Operating Temperature: -25 to 60 °C
Weight: 1.6 kg
Application
This EC axial fan is ideally suited for applications requiring high airflow, high reliability, and low-voltage DC operation, often found in specialized vehicular cooling, battery cooling for electric/hybrid systems, large-scale telecommunication cabinet ventilation (particularly in 12V infrastructure), and various rugged industrial applications that demand a weather-protected (IP44) and maintenance-free design.
