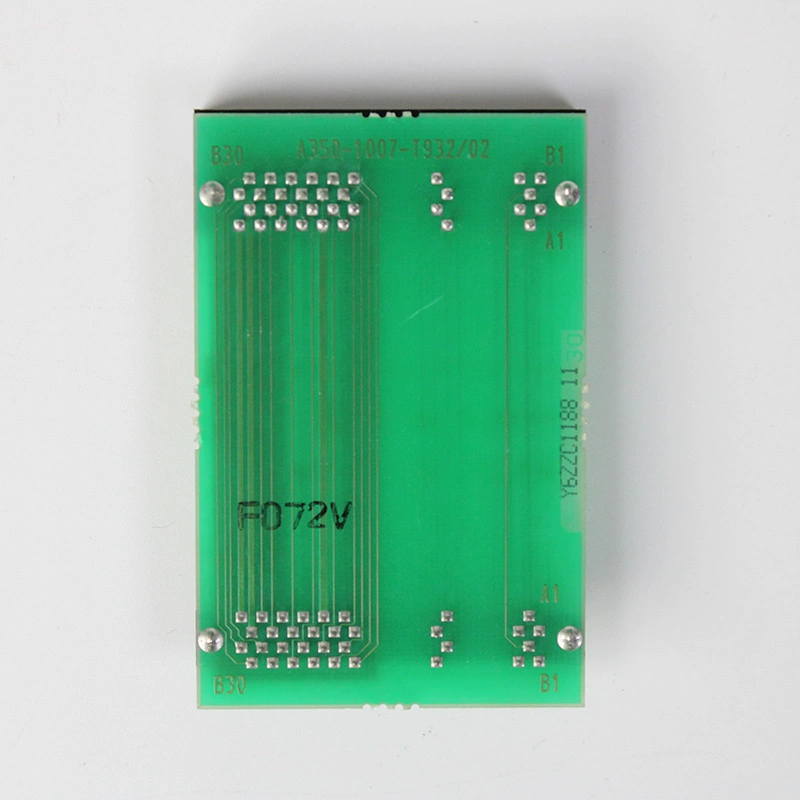

A20B-1007-0930 Fanuc driver board

Description

Part Number: A20B-1007-0930
Product Type: Internal Connecting / Interface Board
Equipment Category: Industrial Automation – Servo Systems
Belongs to Main Unit: Fanuc Servo Amplifier Module
Role in Unit: Connects Control PCB and Power PCB
Compatible Servo Series: Fanuc Alpha i Series Servo Amplifiers
Approximate Physical Dimensions: Internal board within module, no independent standard enclosure; specific dimensions depend on the servo amplifier model
Approximate Mass: Approx. 0.40 kg
Connector Types: Onboard various connectors and pins for internal board-to-board connection
Functional Characteristics:
Signal Transmission
Power Distribution between PCBs
Integrated into servo amplifier control loop
Protection Features: As part of servo amplifier, benefits from overall amplifier protection functions
Power Requirement: Provided by the servo amplifier’s main circuit, no independent external power interface parameters.
Communication Interface: Acts as an internal interface, connects communication circuits on Control PCB to power circuits, does not directly provide external communication interfaces.
Known Sub-versions: A20B-1007-0930/01A, A20B-1007-0930/02A etc.
Typical Application: Internal to servo drive units in Fanuc CNC systems and robotic systems.
A20B-1007-0930 Original Fanak driver adapter board
