Description

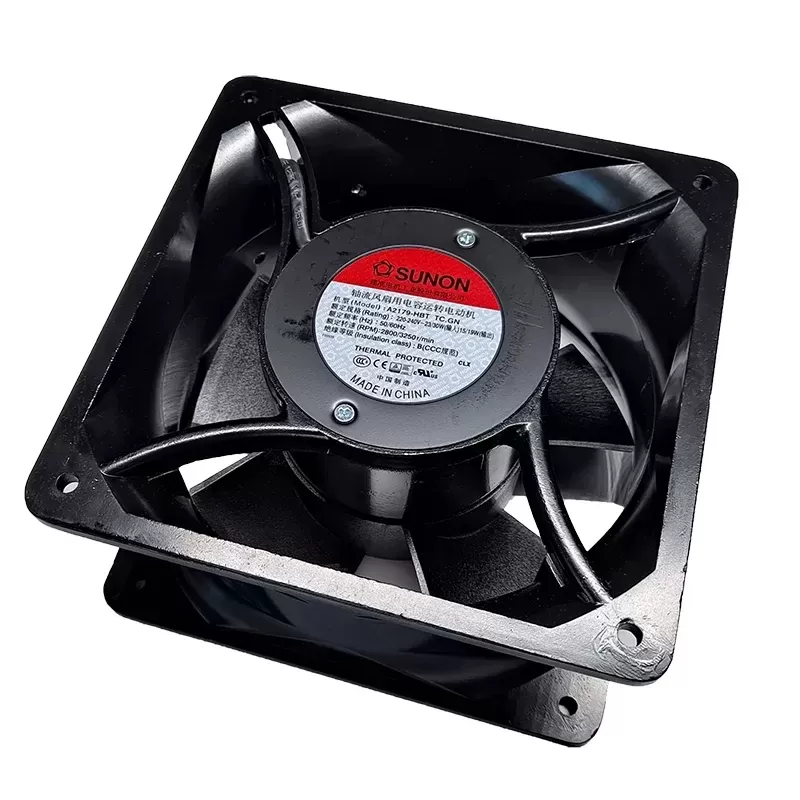

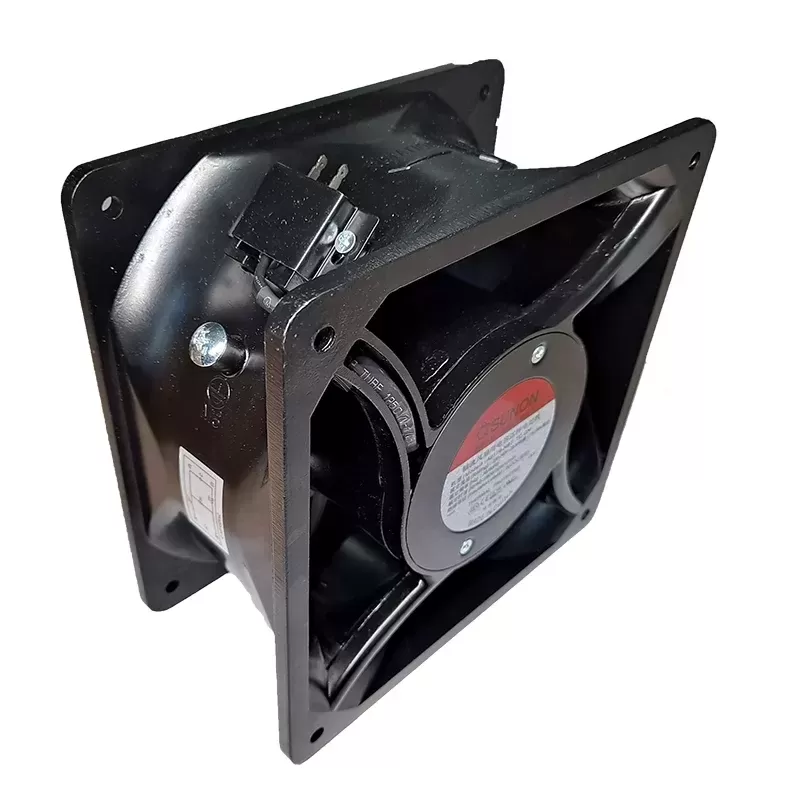

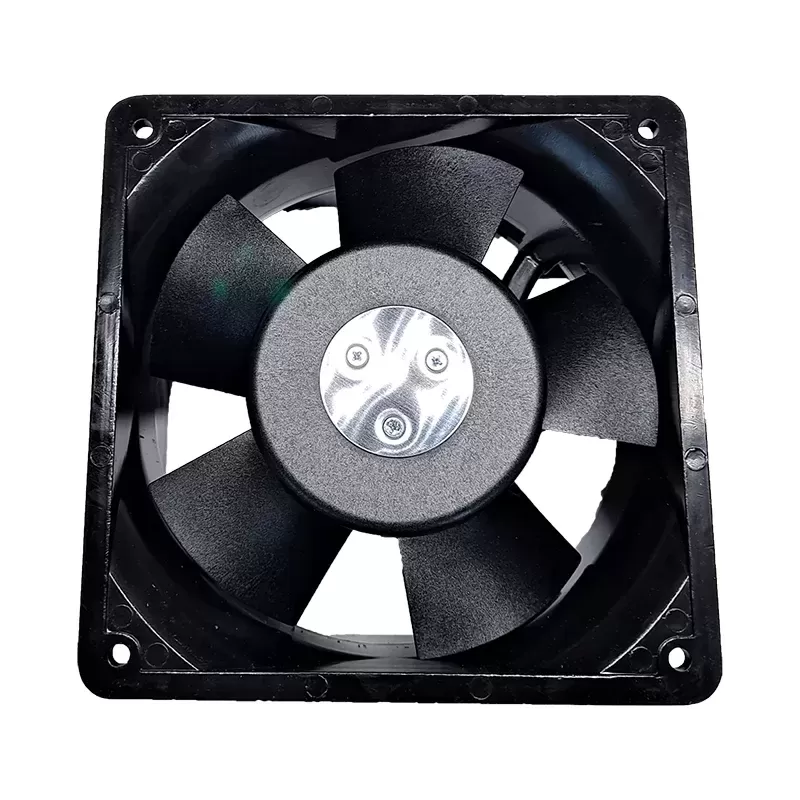

The SUNON A2179-HBT TC.GN is a robust AC axial fan measuring 176x176x89mm. It operates on 220-240 VAC at 50/60 Hz. This fan features a reliable ball bearing system for long-term performance and connects via 2 terminals. The frame is made of aluminum, and the impeller is thermoplastic (PBT) with a UL94V-0 flammability rating. It incorporates an alveolate motor with thermal protection.
For 50 Hz operation, it typically draws 0.11 A with a power consumption of 23 W, achieving a speed of 2800 RPM, an airflow of 535 m³/h, and a noise level of 62 dB(A).
For 60 Hz operation, it typically draws 0.15 A with a power consumption of 30 W, achieving a speed of 3250 RPM, an airflow of 9.38 m³/min (approximately 335 CFM), and a noise level of 66 dB(A).
It is commonly used in various industrial equipment, HVAC systems, and power supplies where efficient and durable cooling is required.
A2179-HBT TC.GN Fan Parameters
Model: A2179-HBT TC.GN
Manufacturer: SUNON
Type: AC Axial Fan
Dimensions: 176x176x89 mm
Rated Voltage: 220-240 VAC
Frequency: 50/60 Hz
Rated Current: 0.11 A (at 50 Hz) / 0.15 A (at 60 Hz)
Power Consumption: 23 W (at 50 Hz) / 30 W (at 60 Hz)
Speed: 2800 RPM (at 50 Hz) / 3250 RPM (at 60 Hz)
Airflow: 535 m³/h (at 50 Hz) / 9.38 m³/min (335 CFM) (at 60 Hz)
Static Pressure: 16.5 mmH2O (at 50 Hz) / 0.80 inH2O (at 60 Hz)
Noise Level: 62 dB(A) (at 50 Hz) / 66 dB(A) (at 60 Hz)
Bearing Type: Ball Bearing
Termination: 2 Terminals (2.8×0.3mm)
Housing Material: Aluminum
Impeller Material: Thermoplastic (PBT)
Flammability Rating: UL94V-0
Insulation Resistance: 500 MΩ minimum (at 500 VDC)
Dielectric Strength: 1800 VAC for 1 second
Motor Protection: Thermal protected (Alveolate Motor with starting capacitor)
Operating Temperature: -10 to 70°C
Storage Temperature: -40 to 70°C
Weight: 1.96 kg
Application: Industrial equipment, HVAC systems, power supplies.
