Description

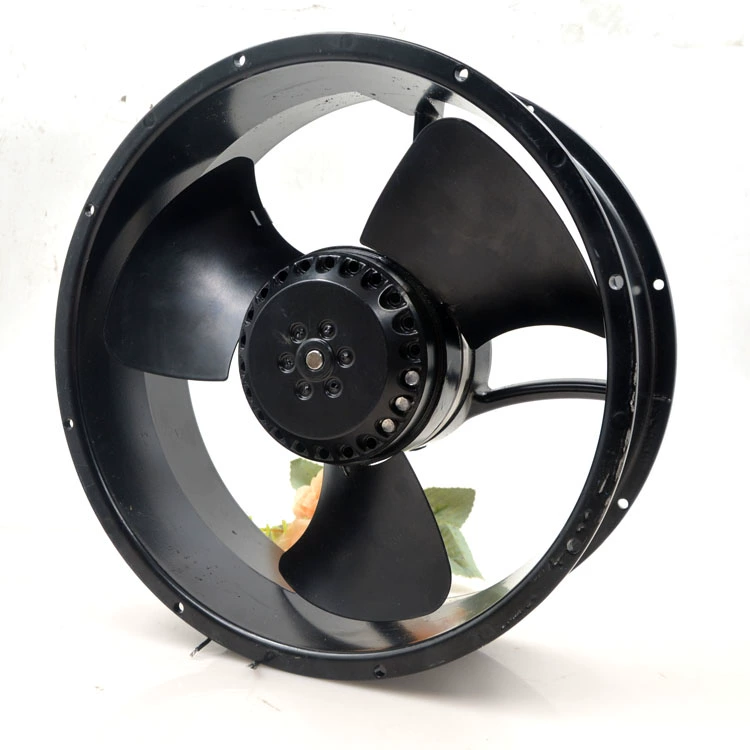

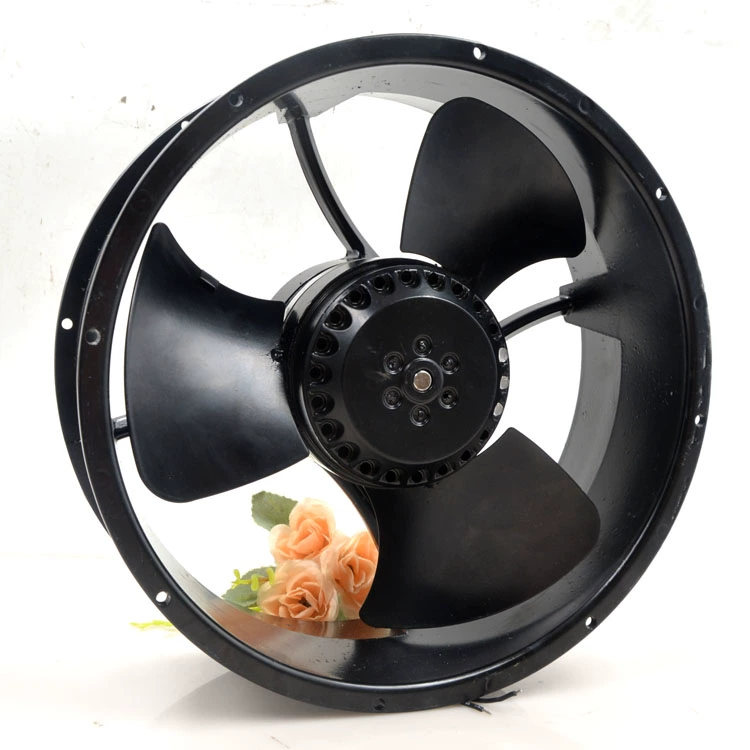

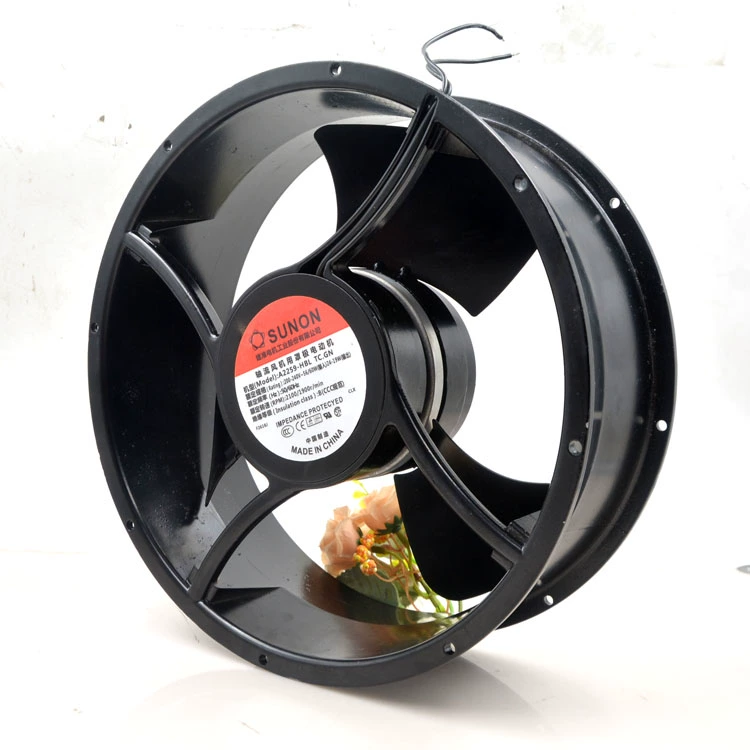

The Sunon A2259-HBL.TC.GN is a powerful AC axial cooling fan, designed for robust thermal management in industrial equipment and cabinets. Measuring 254mm in diameter and 89mm in thickness, this large fan operates on 220-240VAC at either 50Hz or 60Hz. It consumes 60W of power, drawing a current of 0.27A. This enables it to achieve a high rotational speed of 2100 RPM, generating substantial airflow up to 650 CFM and a static pressure up to 0.35 inch-H2O. Despite its powerful performance, its noise level is 62 dBA. The fan features ball bearings for enhanced durability and a long operational lifespan of approximately 50,000 hours. It comes with 2-wire leads for electrical connection and includes a thermal overload protector.
Model Number: A2259-HBL.TC.GN
Manufacturer: Sunon
Type: AC Axial Cooling Fan
Dimensions: Ø254mm x 89mm (Diameter x Thickness)
Rated Voltage: 220-240V AC
Frequency: 50/60 Hz
Rated Current: 0.27A
Rated Power: 60W
Speed: 1900 RPM (at 60Hz) / 2100 RPM (at 50Hz)
Airflow: 585 CFM (at 60Hz) / 650 CFM (at 50Hz)
Static Pressure: 0.31 inch-H2O (at 60Hz) / 0.35 inch-H2O (at 50Hz)
Noise Level: 60 dBA (at 60Hz) / 62 dBA (at 50Hz)
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 50,000 hours
Frame Material: Aluminum
Impeller Material: Thermoplastic (Plastic)
Features: Thermal Overload Protector (TOP) Wired Internally
Operating Temperature: -10°C to +70°C
