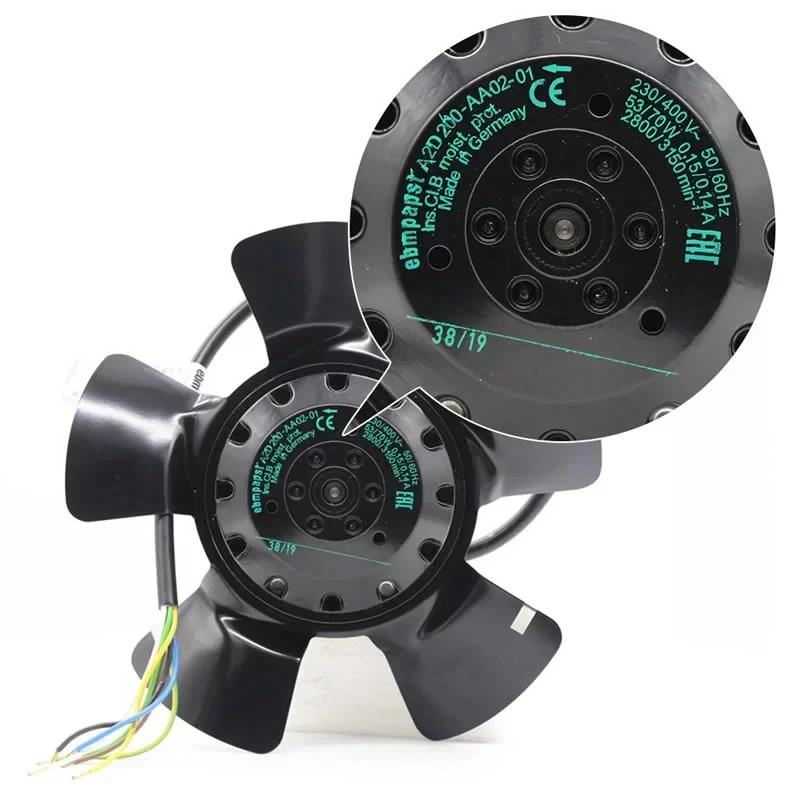

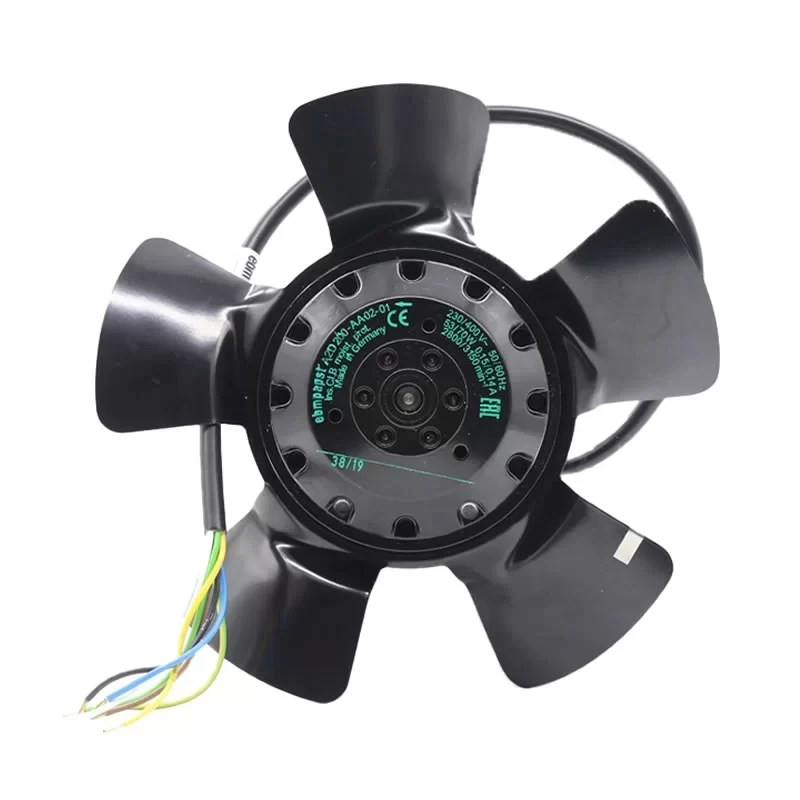

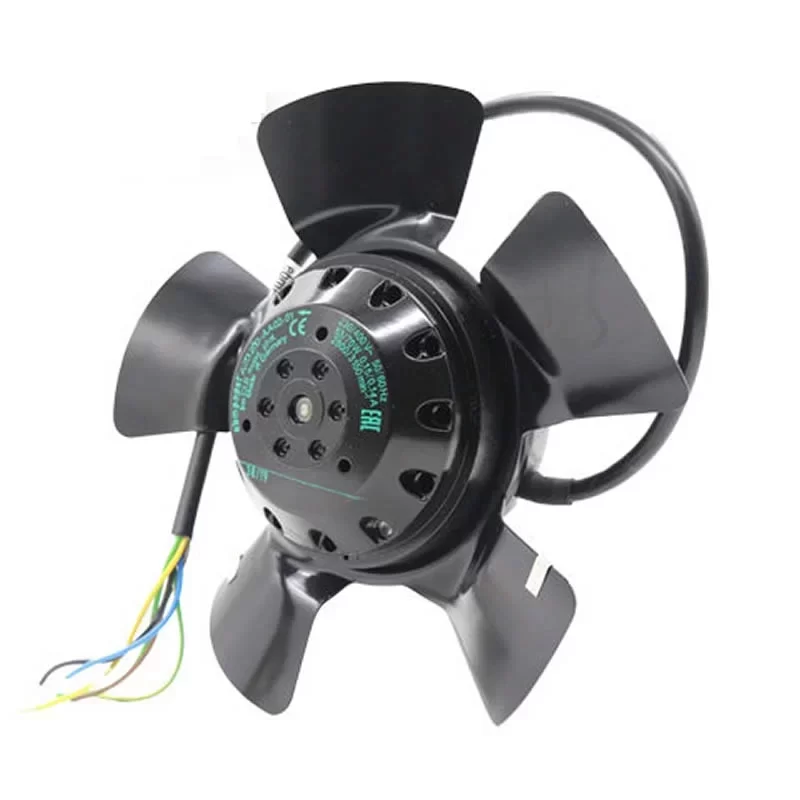

A2D200-AA02-01 ebmpapst 230/400V 53/70W axial fan

Description

The ebmpapst A2D200-AA02-01 is a high-performance three-phase AC axial fan featuring straight blades (A series) driven by an M2D068-CF motor. Engineered for a multi-voltage dual-connection capability at 50 / 60 Hz under running at free air (fa) conditions: operating in delta connection (Δ) at 230 VAC, it provides a speed of 2,800 min⁻¹ (50 Hz) / 3,150 min⁻¹ (60 Hz), drawing a power input of 53 W (50 Hz) / 70 W (60 Hz), a current draw of 0.26 A (50 Hz) / 0.24 A (60 Hz), a starting current of 0.81 A (50 Hz) / 0.78 A (60 Hz), and a max. back pressure of 200 Pa (50 Hz) / 300 Pa (60 Hz) with a max. ambient temperature of 75 °C; operating in star connection (Y) at 400 VAC, it provides a speed of 2,800 min⁻¹ (50 Hz) / 3,150 min⁻¹ (60 Hz), drawing a power input of 53 W (50 Hz) / 70 W (60 Hz), a current draw of 0.15 A (50 Hz) / 0.14 A (60 Hz), a starting current of 0.47 A (50 Hz) / 0.45 A (60 Hz), and a max. back pressure of 200 Pa (50 Hz) / 300 Pa (60 Hz) with a max. ambient temperature of 75 °C. Constructed with an impeller size of 200 mm, a mass of 1.7 kg, black-coated sheet steel blades, black-coated rotor surface, and 5 blades, this unit ensures robust industrial operation. It features ball bearings, counter-clockwise direction of rotation seen on the rotor, “V” direction of air flow, IP44 degree of protection (depending on installation and position as per EN 60034-5), insulation class “B”, F1-2 humidity class, and continuous S1 duty mode with shaft horizontal or rotor on bottom mounting position. It includes rotor-side condensate discharge holes, lateral cable exit, touch current < 0.75 mA according to IEC 60990, protection class I (if protective earth is connected by customer), conformity with EN 60335-1, and CCC approval. It operates reliably within a transport and storage temperature range of -40 to +80 °C.

A2D200-AA02-01 Fan Parameters
Manufacturer: ebmpapst
Model Number: A2D200-AA02-01
Type: AC Axial Fan – Straight Blades (A Series)
Motor: M2D068-CF
Impeller Size: 200 mm
Mass: 1.7 kg
Number of Blades: 5
Material of Blades: Sheet Steel, Coated in Black
Surface of Rotor: Coated in Black
Bearing Motor: Ball Bearing
Direction of Air Flow: “V”
Direction of Rotation: Counter-Clockwise, Seen on Rotor
Phase: 3~
Nominal Voltage: 230 / 400 VAC
Connection: Δ / Y
Frequency: 50 / 60 Hz
Type of Data Definition: fa (Running at Free Air)
Valid for Approval / Standard: CE
Speed: 2800 min⁻¹ (50Hz) / 3150 min⁻¹ (60Hz)
Power Input: 53 W (50Hz) / 70 W (60Hz)
Current Draw: 0.26 A (Δ 230V 50Hz) / 0.24 A (Δ 230V 60Hz) / 0.15 A (Y 400V 50Hz) / 0.14 A (Y 400V 60Hz)
Starting Current: 0.81 A (Δ 230V 50Hz) / 0.78 A (Δ 230V 60Hz) / 0.47 A (Y 400V 50Hz) / 0.45 A (Y 400V 60Hz)
Max. Back Pressure: 200 Pa (50Hz) / 300 Pa (60Hz)
Max. Ambient Temperature: 75 °C
Min. Permissible Ambient Motor Temp. (Transp. / Storage): -40 °C
Max. Permissible Ambient Motor Temp. (Transp. / Storage): +80 °C
Operation Mode: S1
Mounting Position: Shaft Horizontal or Rotor on Bottom; Rotor on Top on Request
Humidity Class: F1-2
Insulation Class: “B”
Cable Exit: Lateral
Condensate Discharge Holes: Rotor-Side
Touch Current Acc. IEC 60990: < 0.75 mA
Type of Protection: IP 44 (Depending on Installation and Position as per EN 60034-5)
Protection Class: I (if Protective Earth is Connected by Customer)
Product Conforming to Standard: EN 60335-1
Approval: CCC

Application
The ebmpapst A2D200-AA02-01 is deployed in industrial ventilation systems, commercial refrigeration units, electrical enclosures, and HVAC equipment requiring dependable three-phase forced-air cooling.
