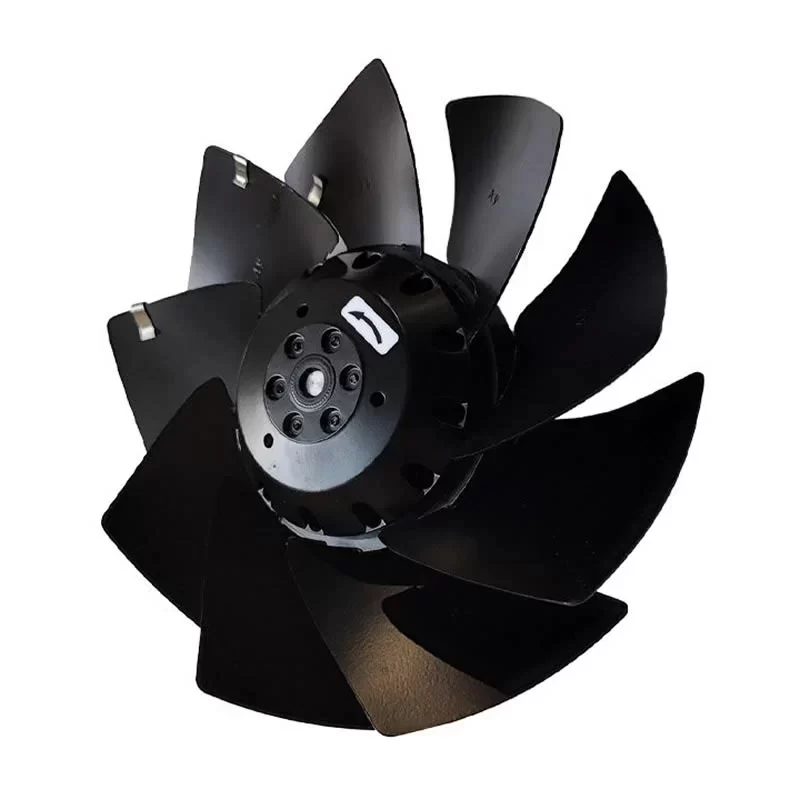

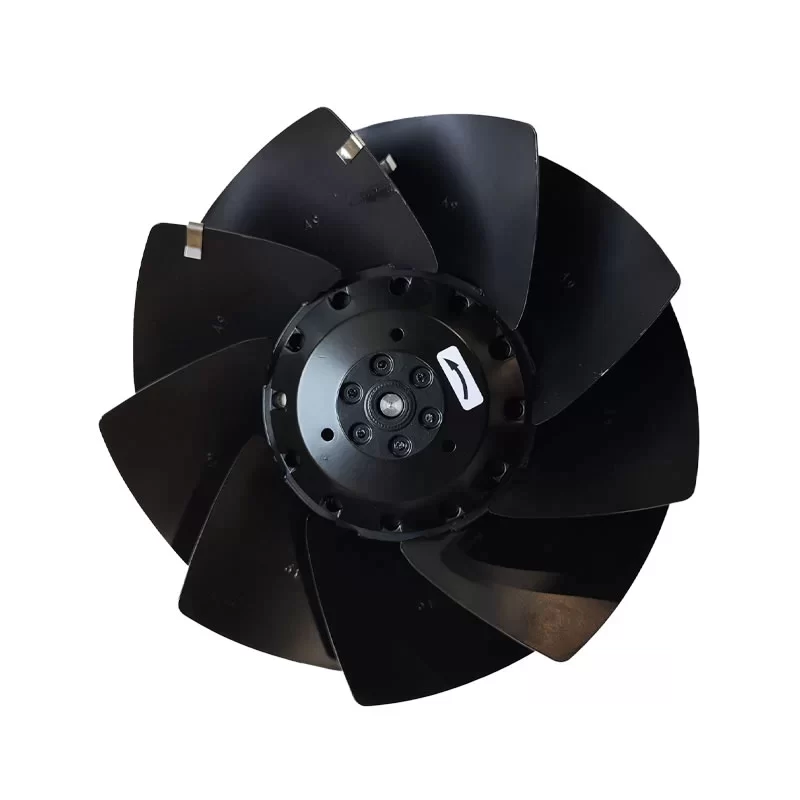

A2D200-AI18-01 ebmpapst 400V 200mm AC Axial Fan

Description

The ebmpapst A2D200-AI18-01 is a professional 400 V three-phase AC axial fan featuring a 200 mm nine-blade impeller constructed from robust black-coated sheet steel. Driven by the M2D068-BC external rotor motor, this unit is optimized for Star (Y) connection, delivering a powerful airflow at speeds up to 2900 RPM. The aerodynamic design is specifically engineered for “A” direction airflow (intake over struts), providing efficient cooling with a power input of 68-70 W. Built for S1 continuous duty, it features premium ball bearings, IP44 protection, and Class B insulation with an F1-2 humidity class rating. This compact and durable axial fan is an ideal solution for heat exchangers and industrial ventilation systems, operating reliably across an ambient temperature range up to 70 °C (at 60Hz).

A2D250-AI02-01 Fan Parameters
Model Number: A2D200-AI18-01
Manufacturer: ebmpapst
Motor Model: M2D068-BC
Series: AC Axial Series
Type: AC Axial Fan
Size: 200 mm
Dimensions: 200 x 200 x 78 mm (Typical depth)
Bearing Type: Ball Bearing
Nominal Voltage: 400 VAC
Voltage Range: 380 – 415 VAC
Wiring: Y (Star)
Phase: 3~
Frequency: 50 / 60 Hz
Weight: 1.6 kg
Power Consumption: 68 W (50 Hz) / 70 W (60 Hz)
Nominal Current: 0.17 A (50 Hz) / 0.13 A (60 Hz)
Speed: 2600 RPM (50 Hz) / 2900 RPM (60 Hz)
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Max. Back Pressure: 140 Pa
Motor Design: 3-phase External Rotor Motor
Motor Protection: Thermal overload protector (TOP) internally connected
Insulation Class: Class B
Touch Current: < 0.75 mA
Electrical Hookup: Lateral cable
Number of Blades: 9
Direction of Rotation: Counter-clockwise, viewed toward rotor
Airflow Direction: "A" (Air intake over struts)
Blade Material: Sheet steel, coated in black
Rotor Surface: Coated in black
Installation Position: Shaft horizontal or rotor on bottom
Condensate Discharge Holes: On rotor side
Degree of Protection: IP44
Moisture Protection Class: F1-2
Operating Temperature: -25 – +45 °C (50 Hz) / -25 – +70 °C (60 Hz)
Standard Compliance: EN 60335-1, CE
Approval Agency: CCC

Application
The ebmpapst A2D200-AI18-01 axial fan is primarily utilized in heat exchangers, refrigeration units, electronic cabinet cooling, ventilation systems, and industrial machinery air extraction.
