Description

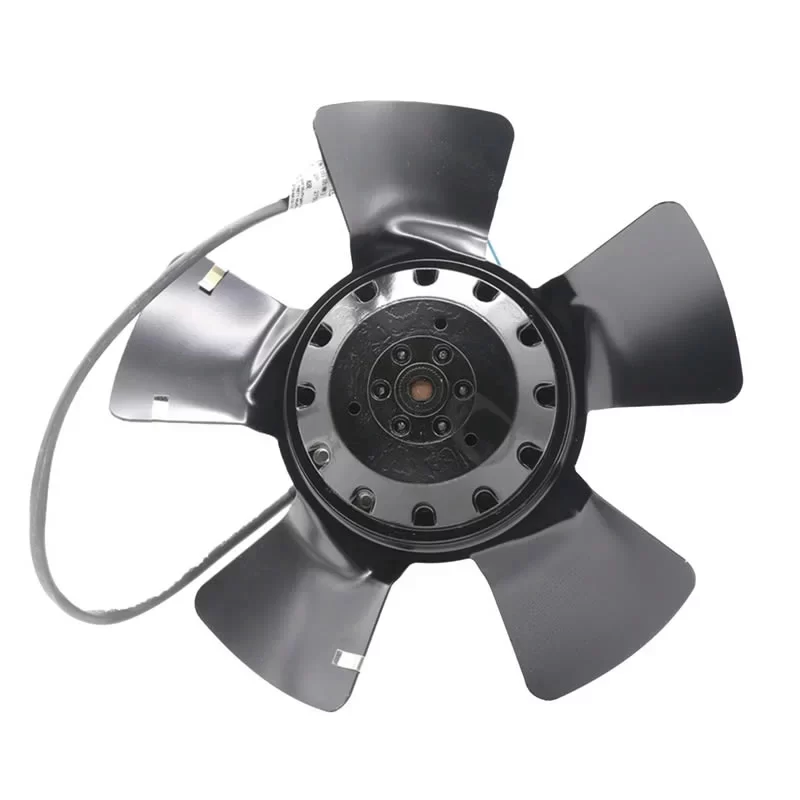

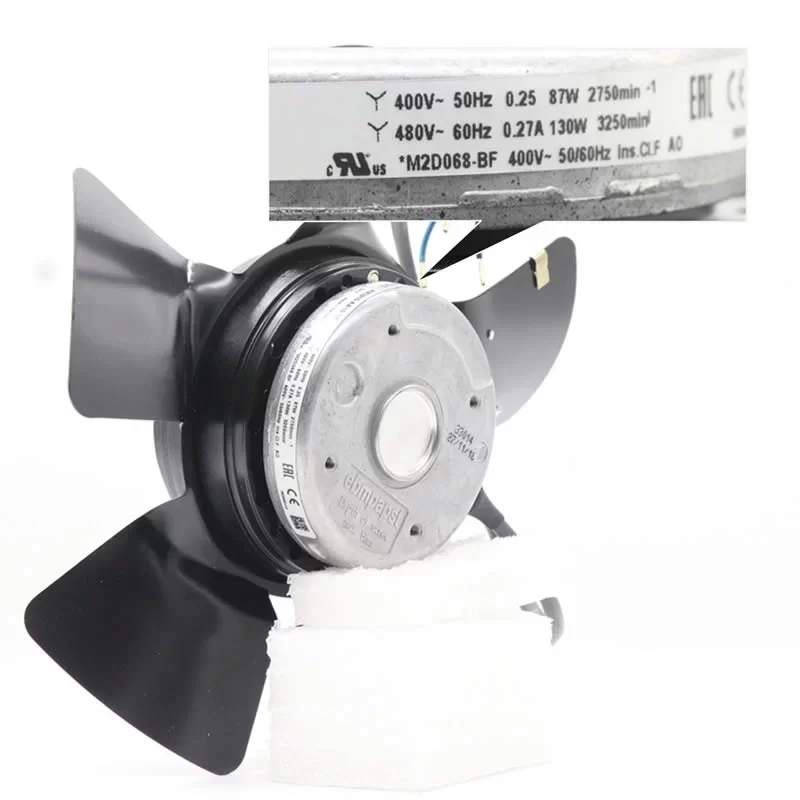

The ebmpapst A2D210-AA10-17 is a high-performance 400VAC three-phase AC Axial Fan featuring 5 sickle-shaped blades with a robust Impeller Size of 210 mm. Specifically engineered for mission-critical cooling of Siemens servo spindle motors and industrial heat exchangers, this unit is driven by the M2D068-CF external rotor motor with maintenance-free ball bearings. Operating on a 400 VAC / 480 VAC supply, it delivers a Power Consumption of 87 W / 105 W / 130 W and a Current Draw of 0.25 A / 0.20 A / 0.27 A at rated speeds of 2750 / 3150 / 3250 RPM. Featuring a rugged sheet steel construction with a black-painted finish, it ensures superior aerodynamic efficiency, low noise emissions, and an extended service life in continuous S1 environments at the end.
A2D210-AA10-17 Fan Parameters
Model Number: A2D210-AA10-17
Motor Model: M2D068-CF
Manufacturer: ebmpapst
Type: AC Axial Fan – 5 Sickle-shaped blades
Impeller Size: 210 mm
Dimensions: Ø 210 x 72.5 mm
Weight: 1.7 kg
Bearing Type: Ball bearing
Nominal Voltage: 400 / 400 / 480 VAC
Phase: 3~
Frequency: 50 / 60 / 60 Hz
Method of Obtaining Data: fa (Free air)
Current Draw: 0.25 / 0.20 / 0.27 A
Power Consumption: 87 / 105 / 130 W
Rated Speed: 2750 / 3150 / 3250 RPM
Max. Air Flow: 535.6 / 635.7 / 653.3 CFM (910.0 / 1080.0 / 1110.0 m³/h / 15.17 / 18.00 / 18.50 m³/min)
Max. Static Pressure: 14.28 / 18.35 / 19.37 mmH₂O (140.0 / 180.0 / 190.0 Pa / 0.56 / 0.72 / 0.76 inAq)
Blade Material: Sheet steel, painted black
Rotor Surface: Painted black
Direction of Airflow: “A” (Inlet over struts)
Direction of Rotation: Clockwise, viewed toward rotor
Insulation Class: “F”
Degree of Protection: IP44; installation- and position-dependent as per EN 60034-5
Humidity/Environmental Protection Class: H1+
Touch Current: < 0.75 mA (acc. IEC 60990, Fig. 4, TN system)
Motor Protection: Thermal overload protector (TOP) internally connected
Electrical Connection: Lateral cable
Installation Position: Shaft horizontal or rotor on bottom; rotor on top on request
Mode: S1
Protection Class: I (with customer connection of protective earth)
Max. Ambient Temperature: 90 / 80 / 80 °C
Min. Ambient Temperature: -25 °C
Max. Storage Temperature: +80 °C
Min. Storage Temperature: -40 °C
Standard Compliance: EN 60335-1; CE; UKCA
Approval: CCC; EAC; UL 1004-1; CSA C22.2 No. 100
Application
The ebmpapst A2D210-AA10-17 axial fan is the primary cooling solution for Siemens servo spindle motors and industrial heat exchangers requiring robust 400V three-phase axial airflow in a 210mm configuration.
