Description

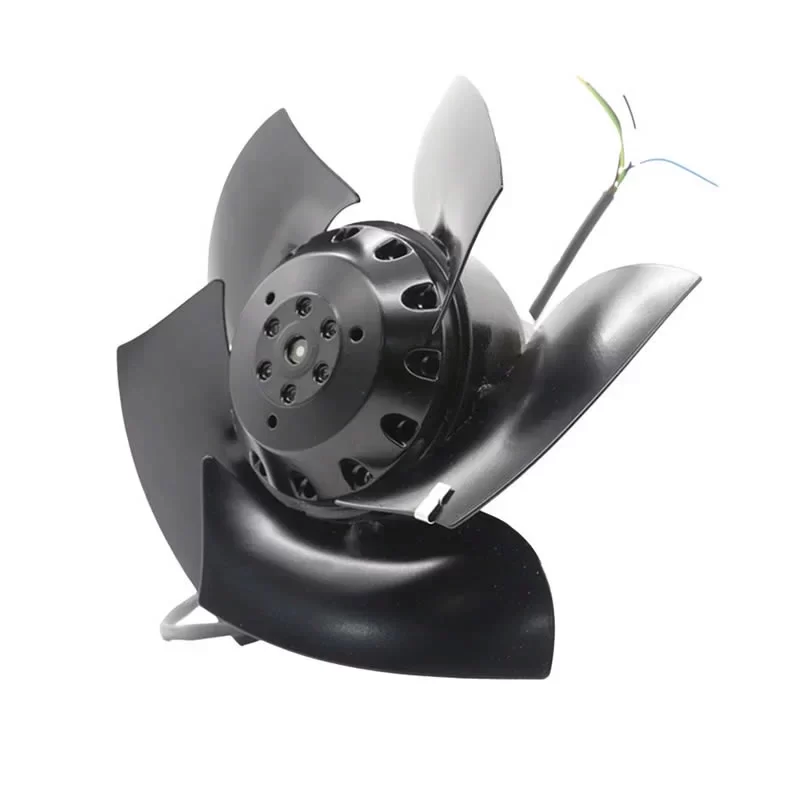

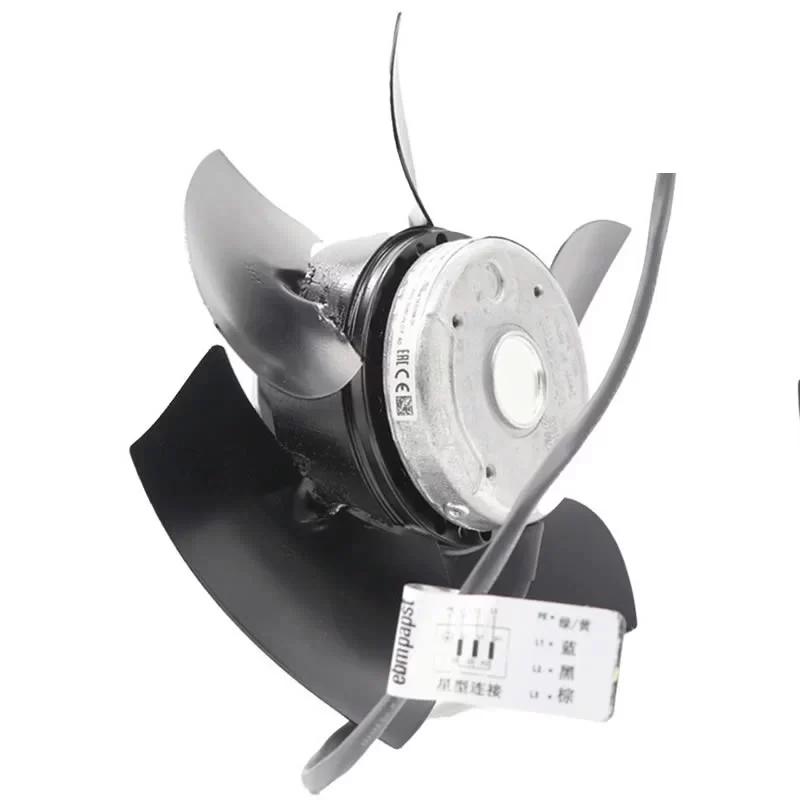

The ebmpapst A2D210-AB10-05 is a high-performance 400VAC three-phase AC Axial Fan featuring 5 sickle-shaped blades with a robust impeller size of 210 mm. Specifically engineered for mission-critical cooling of Siemens servo spindle motors and industrial heat exchangers, this unit is driven by the M2D068-CF (Size 68) external rotor motor with maintenance-free ball bearings. Operating on a 400 VAC / 480 VAC supply with Y-wiring, it delivers a Power Consumption of 89 W / 130 W and a Current Draw of 0.26 A / 0.27 A at rated speeds of 2750 / 3250 RPM. Featuring a rugged sheet steel construction with a black-painted finish and lateral cable exit, it ensures superior aerodynamic efficiency, high thermal resistance, and reliable continuous S1 operation in demanding industrial environments at the end.
A2D210-AB10-05 Fan Parameters
Model Number: A2D210-AB10-05
Motor Model: M2D068-CF (Size 68)
Manufacturer: ebmpapst
Type: AC Axial Fan
Impeller Size: 210 mm
Dimensions: Ø 210 x 70 mm
Weight: 1.62 kg
Bearing Type: Ball bearing
Nominal Voltage: 400 / 480 VAC
Phase: 3~
Wiring: Y (Star)
Frequency: 50 / 60 Hz
Method of Obtaining Data: cs (Customer specification)

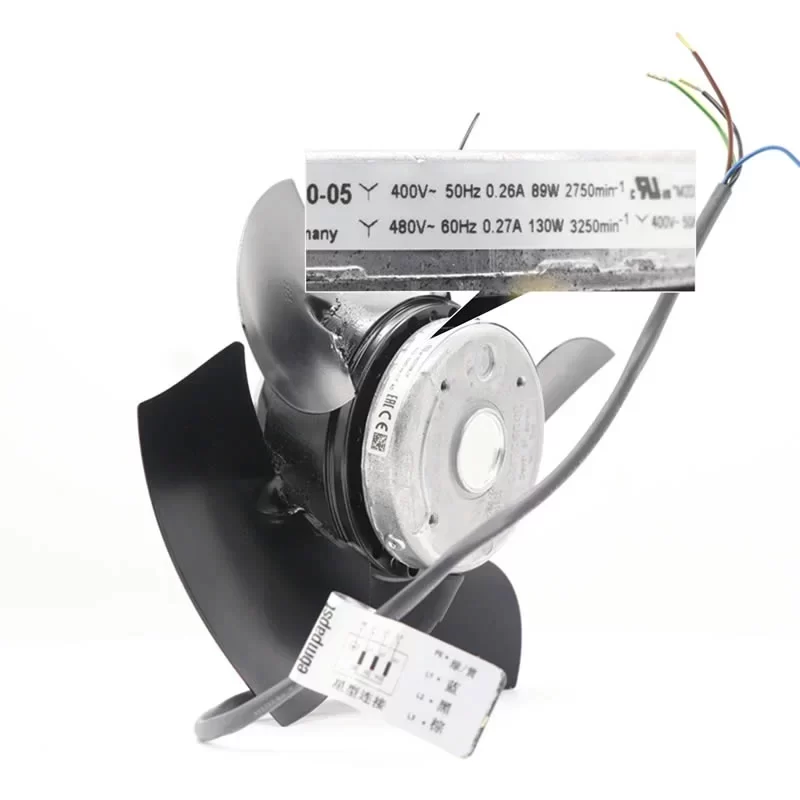

Current Draw: 0.26 / 0.27 A
Power Consumption: 89 / 130 W
Rated Speed: 2750 / 3250 RPM
Max. Air Flow: 459.1 / 538.5 CFM (780.0 / 915.0 m³/h / 13.00 / 15.25 m³/min)
Max. Static Pressure: 15.30 / 19.37 mmH₂O (150.0 / 190.0 Pa / 0.60 / 0.76 inAq)
Blade Material: Sheet steel, painted black
Rotor Surface: Painted black
Number of Blades: 5
Airflow Direction: “V” (Exhaust over struts)
Direction of Rotation: Counter-clockwise (viewed toward rotor)
Insulation Class: “F”
Degree of Protection: IP44; installation- and position-dependent as per EN 60034-5
Moisture (F) / Environmental (H) Protection Class: H1+
Touch Current: < 0.75 mA (acc. IEC 60990, Fig. 4, TN system)
Motor Protection: Thermal overload protector (TOP) internally connected
Condensation Drainage Holes: On rotor side
With Cable: Lateral
Installation Position: Shaft horizontal or rotor on bottom; rotor on top on request
Mode: S1 (Continuous operation)
Protection Class: I (with customer connection of protective earth)
Min. Ambient Temperature: -25 °C
Max. Storage Temperature: +80 °C
Min. Storage Temperature: -40 °C
Standard Compliance: EN 60335-1; CE; UKCA
Approval: CCC; UL 1004-1; EAC; CSA C22.2 No. 100
Application
The ebmpapst A2D210-AB10-05 axial fan is the primary cooling solution for Siemens servo spindle motors and high-performance industrial heat exchangers requiring robust 400V/480V three-phase axial airflow in a 210mm configuration.
