Description

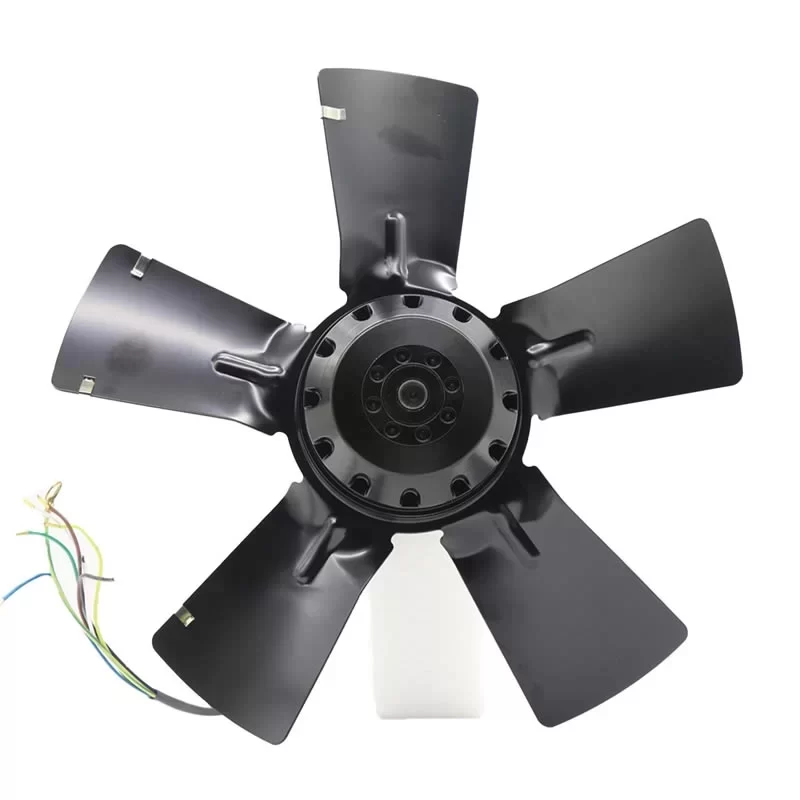

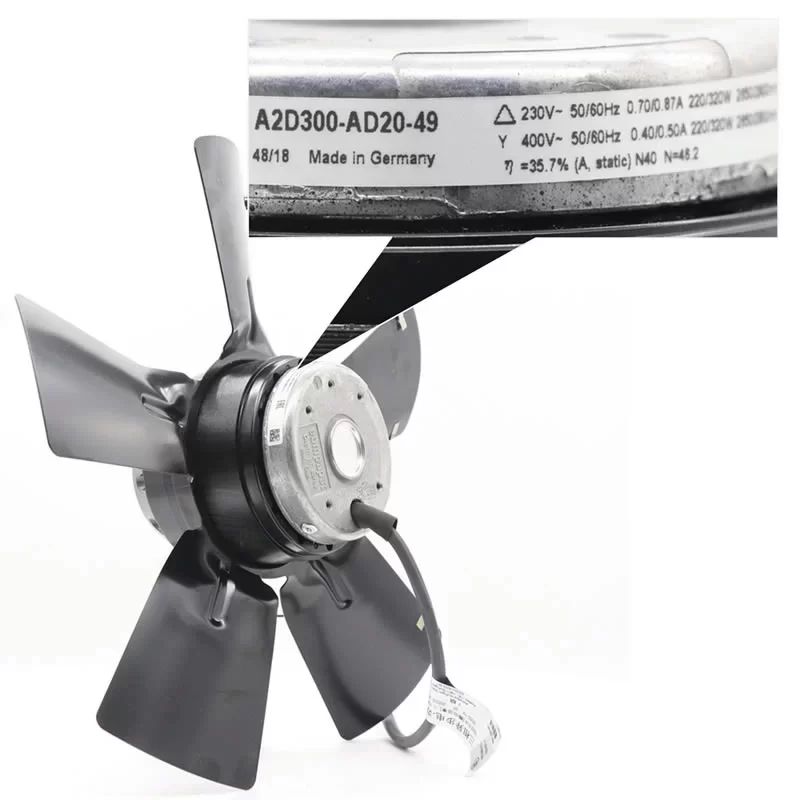

The ebmpapst A2D300-AD20-49 is a high-performance 400VAC three-phase AC Axial Fan from the S series, featuring 5 sickle-shaped blades with an Impeller Size of 300 mm. Specifically engineered for mission-critical cooling in industrial refrigeration and ventilation systems, this unit features overall Dimensions of 300 x 300 x 101.5 mm. Driven by the M2D068-EC external rotor motor with maintenance-free ball bearings, it supports dual-voltage operation with a Nominal Voltage of 230 VAC (Δ) / 400 VAC (Y). Under customer equipment conditions, it delivers a Power Consumption of 220 W (50 Hz) / 320 W (60 Hz) and a Current Draw of 0.4 A / 0.5 A (at 400 VAC) at a rated speed of 2650 / 2900 RPM. This 300 mm unit provides a Max. Air Flow of 1121.25 CFM (1905.0 m³/h / 31.75 m³/min) and a Max. Static Pressure of 15.81 mmH₂O (155.0 Pa / 0.62 inAq). Featuring a rugged sheet steel impeller painted in black, it ensures superior thermal management with IP44 protection and an extended service life in continuous S1 environments at the end.
A2D300-AD20-49 Fan Parameters
Model Number: A2D300-AD20-49
Motor Model: M2D068-EC
Manufacturer: ebmpapst
Type: AC Axial Fan – Sickled blades (S series)
Impeller Size: 300 mm
Dimensions: 300 x 300 x 101.5 mm
Weight: 2.8 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 / 230 / 400 / 400 VAC
Phase: 3~
Wiring: Δ / Δ / Y / Y
Frequency: 50 / 60 / 50 / 60 Hz
Method of Obtaining Data: ce (Customer equipment)
Current Draw: 0.7 / 0.87 / 0.4 / 0.5 A
Power Consumption: 220 / 320 / 220 / 320 W
Rated Speed: 2650 / 2900 / 2650 / 2900 RPM
Max. Air Flow: 1121.25 CFM (1905.0 m³/h / 31.75 m³/min)
Max. Static Pressure: 15.81 mmH₂O (155.0 Pa / 0.62 inAq)
Starting Current: 1.5 / 1.55 / 0.86 / 0.9 A
Number of Blades: 5
Blade Material: Sheet steel, painted black
Rotor Surface: Painted black
Direction of Rotation: Clockwise (viewed toward rotor)
Direction of Airflow: “A”
Touch Current: < 0.75 mA
Insulation Class: "F"
Degree of Protection: IP44
Moisture (F) / Environmental (H) class: H1+
Installation Position: Any
Condensation Drainage Holes: None
Mode: S1
Protection Class: I
Max. Ambient Temperature: 50 / 45 / 50 / 45 °C
Min. Ambient Temperature: -25 °C
Max. Storage Temperature: +80 °C
Min. Storage Temperature: -40 °C
Standard Compliance: EN 60335-1; CE
Approval: EAC; CCC
Application
The ebmpapst A2D300-AD20-49 fan is the primary cooling component for industrial refrigeration condensers, heat exchangers, and ventilation units requiring 400V three-phase axial airflow with sickled blades.
