Description

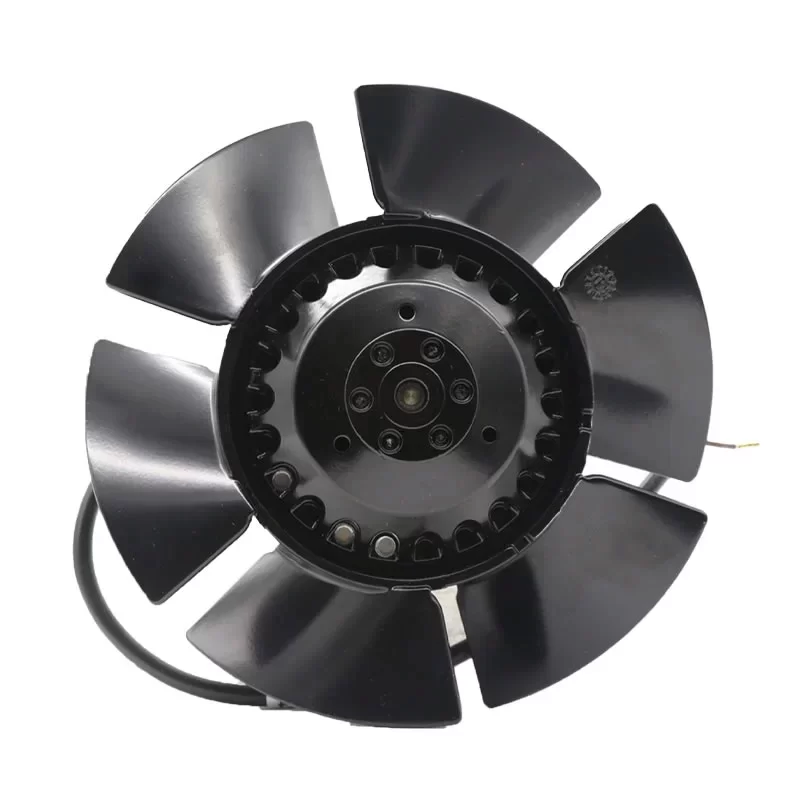

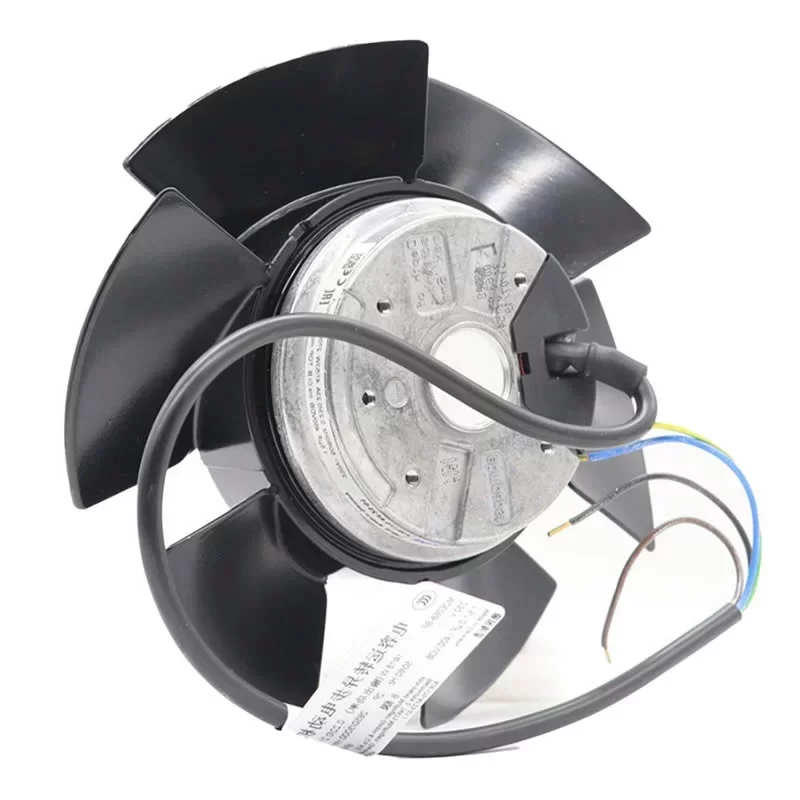

The ebmpapst A2E170-AF23-01 is a high-performance 230VAC single-phase AC Axial Fan featuring 6 sickle-shaped blades with a robust Impeller Size of 170 mm. Driven by the M2E068-BF external rotor motor with maintenance-free ball bearings and a 1.5 µF / 450 VDB capacitor, this unit is specifically engineered for mission-critical industrial cabinet ventilation, electronic cooling, and heat exchangers. Operating on a 230 VAC supply, it delivers a Power Input of 47 W / 53 W and a Current Draw of 0.23 A / 0.23 A at rated speeds of 2700 / 3150 RPM. Featuring a rugged die-cast aluminum impeller with a black-coated rotor surface, it ensures superior aerodynamic efficiency, low noise emissions, and an extended service life in continuous S1 environments at the end.
A2E170-AF23-01 Fan Parameters
Model Number: A2E170-AF23-01
Motor Model: M2E068-BF
Manufacturer: ebmpapst
Type: AC Axial Fan – 6 Sickle-shaped blades
Impeller Size: 170 mm
Dimensions: Ø 170 x 63 mm
Weight: 1.18 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Method of Obtaining Data: fa (Free air)
Current Draw: 0.23 / 0.23 A
Starting Current: 0.38 / 0.38 A
Power Input: 47 / 53 W
Rated Speed: 2700 / 3150 RPM
Max. Air Flow: 282.5 / 323.7 CFM (480.0 / 550.0 m³/h / 8.00 / 9.17 m³/min)
Max. Static Pressure: 12.24 / 14.28 mmH₂O (120.0 / 140.0 Pa / 0.48 / 0.56 inAq)

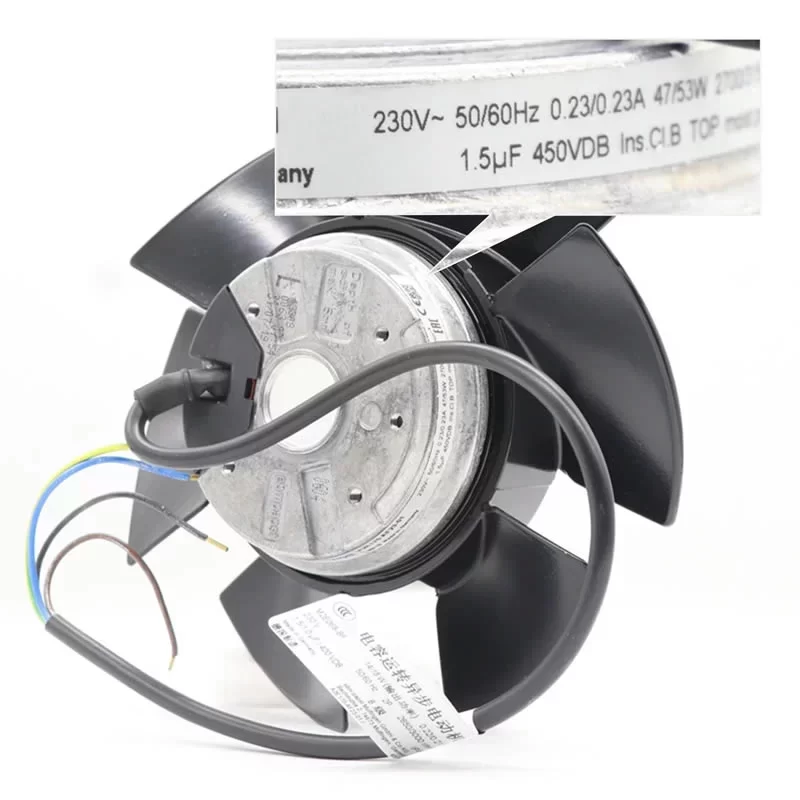

Capacitor: 1.5 µF / 450 VDB (P0 standard)
Impeller Material: Die-cast aluminium
Rotor Surface: Coated in black
Number of Blades: 6
Direction of Airflow: “V” (Exhaust over struts)
Direction of Rotation: Counter-clockwise (viewed toward rotor)
Insulation Class: “B”
Degree of Protection: IP44
Humidity Class: F5 / H1
Touch Current: < 0.75 mA (acc. IEC 60990, Fig. 4, TN system)
Motor Protection: Thermal overload protector (TOP) wired internally
Installation Position: Shaft horizontal or rotor on bottom; rotor on top on request
Mode: S1 (Continuous operation)
Protection Class: I (with customer connection of protective earth)
Max. Ambient Temperature: 45 / 60 °C
Min. Ambient Temperature: -25 °C
Standard Compliance: EN 60335-1; CE
Approval: CCC; EAC; VDE
Application
The ebmpapst A2E170-AF23-01 axial fan is the primary cooling solution for industrial control cabinets, commercial ventilation systems, and precision electronic cooling requiring robust 230V single-phase axial airflow in a 170mm configuration.
