Description

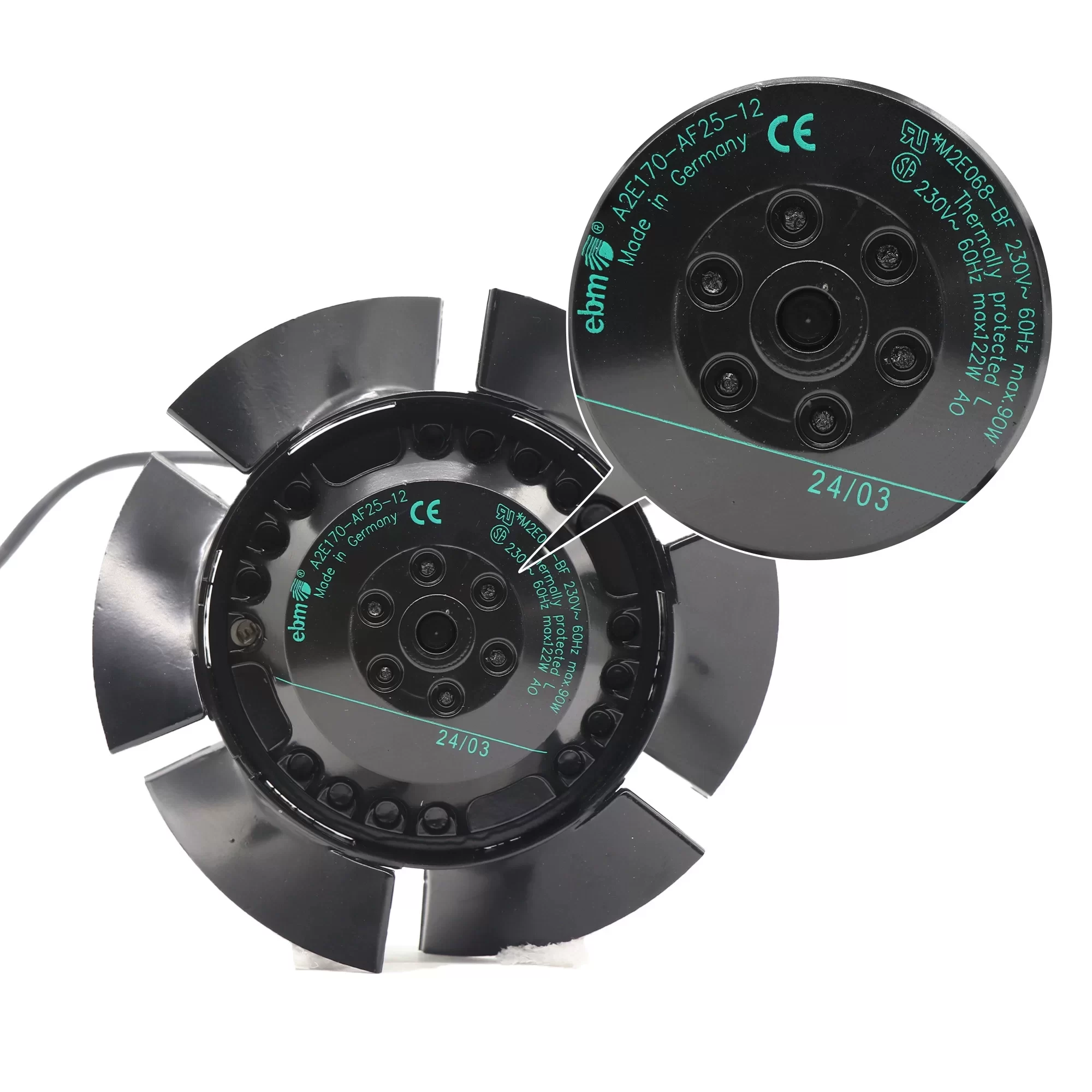

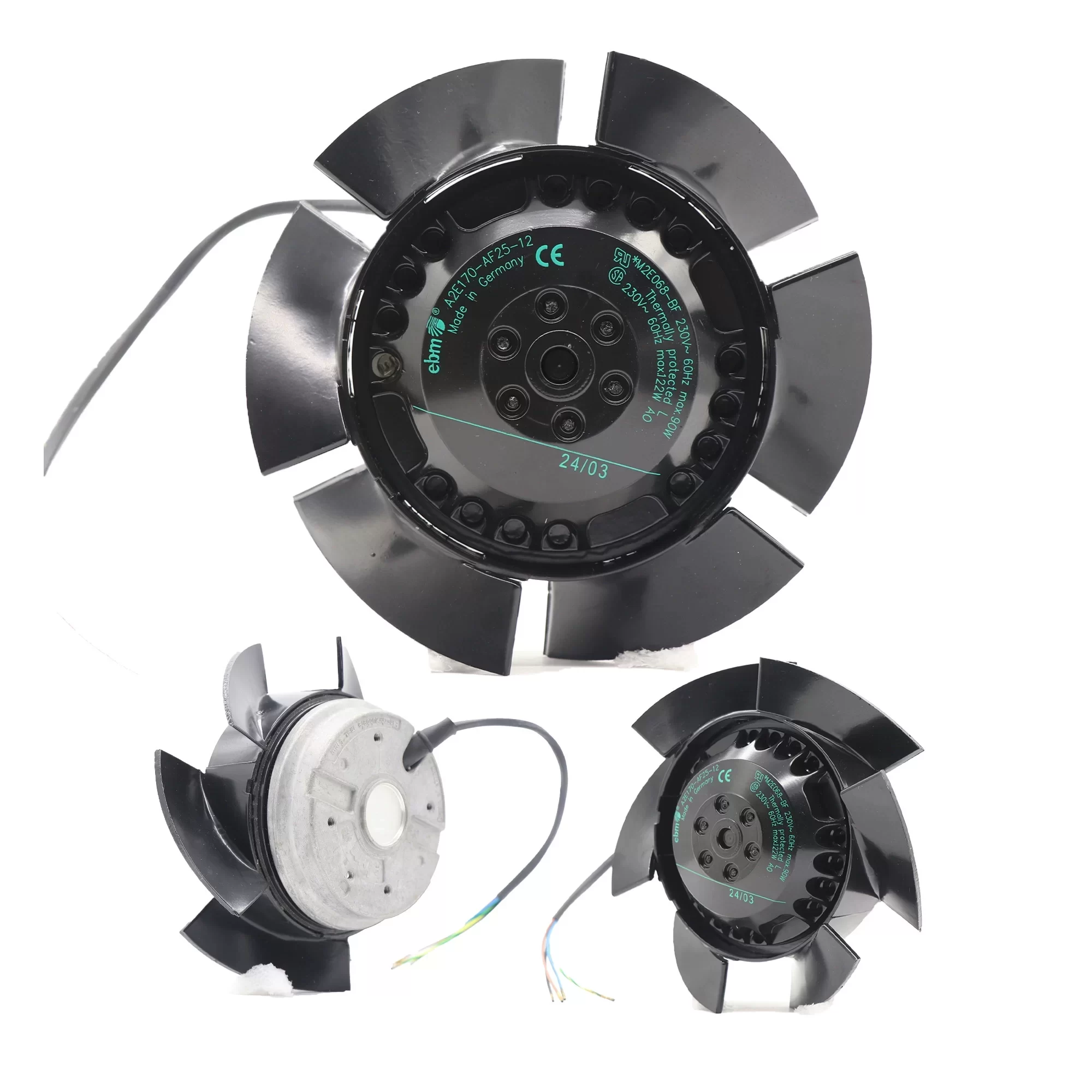

The ebmpapst A2E170-AF25-12 is a 1-phase AC Axial Fan with a 170mm diameter. It operates on 230V AC at both 50Hz and 60Hz. At 50Hz, it operates at 2400RPM with 80W power consumption, 0.35A current draw, 470m³/h airflow, 6.1B sound power level, and 50dB(A) sound pressure level. At 60Hz, its performance increases to 2600RPM speed, 100W power consumption, 0.44A current draw, 550m³/h airflow, 6.4B sound power level, and 53dB(A) sound pressure level. It is equipped with ball bearings and is designed to operate efficiently within an ambient temperature range of -25 to 65°C. This fan is an external rotor motor type and typically features leads for termination.
A2E170-AF25-12 Fan Parameters
Model: A2E170-AF25-12
Manufacturer: ebmpapst
Type: AC Axial Fan
Dimensions: 170 mm
Phase: 1~
Nominal Voltage: 230 V AC
Frequency: 50/60 Hz
Performance at 50 Hz:
Speed: 2400 RPM
Power Input: 80 W
Current Draw: 0.35 A
Airflow: 470 m³/h
Sound Power Level: 6.1 B
Sound Pressure Level: 50 dB(A)
Performance at 60 Hz:
Speed: 2600 RPM
Power Input: 100 W
Current Draw: 0.44 A
Airflow: 550 m³/h
Sound Power Level: 6.4 B
Sound Pressure Level: 53 dB(A)
Min. Ambient Temperature: -25 °C
Max. Ambient Temperature: 65 °C
Bearing Type: Ball Bearing
Termination: Leads
Weight: 1.7 kg
Application: Suitable for use in ventilation systems, cooling applications, and various industrial equipment.
