Description

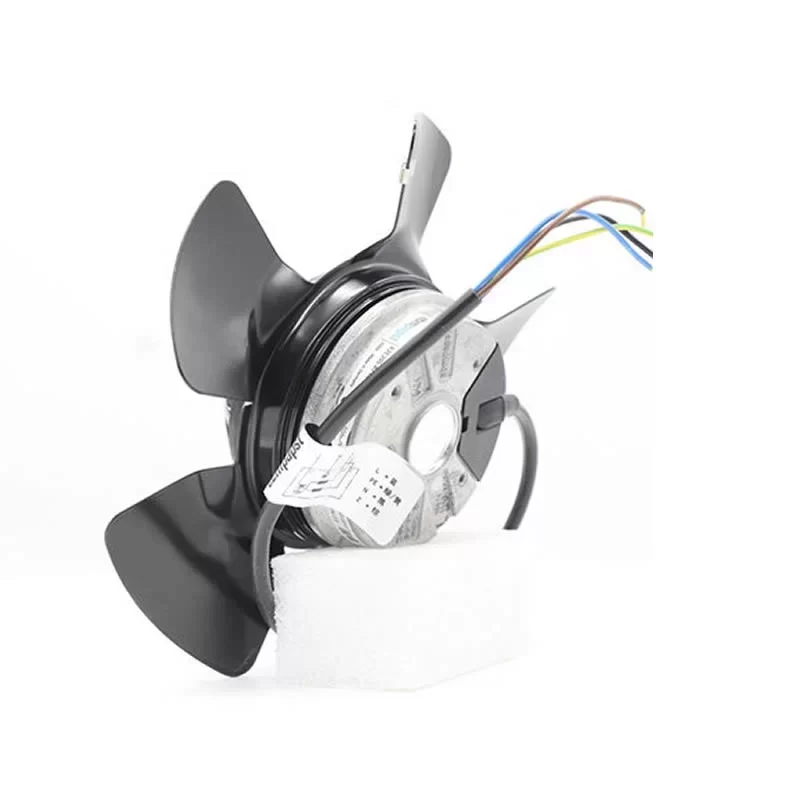

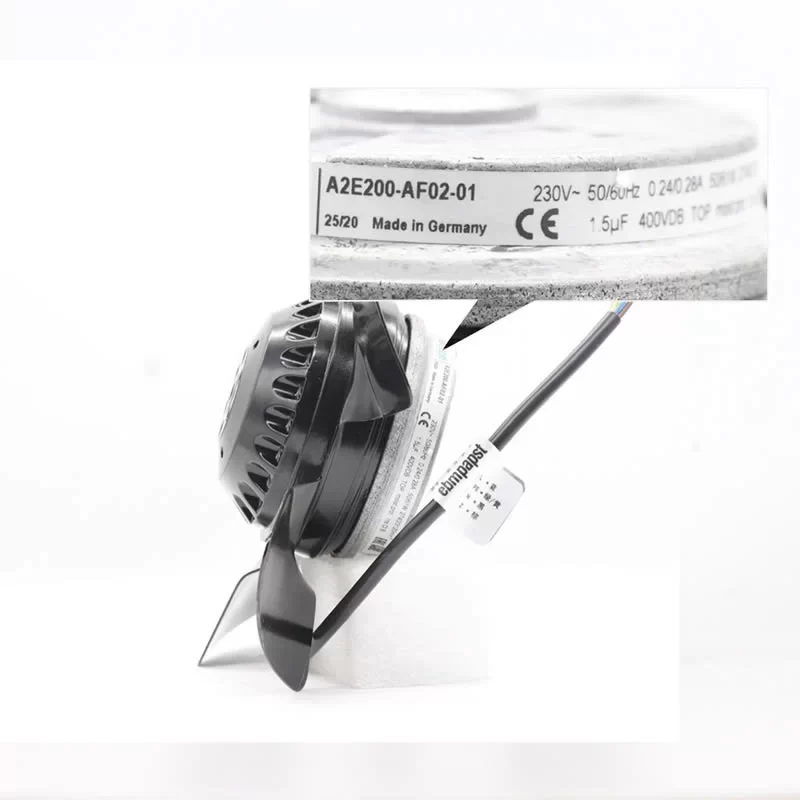

The ebmpapst A2E200-AF02-01 is a high-performance 230VAC single-phase AC Axial Fan from the A-series, featuring 5 straight sheet steel blades with an Impeller Size of 200 mm and overall Dimensions of 200 x 68.5 mm. Specifically engineered for mission-critical industrial refrigeration and heat exchangers, this unit is driven by the M2E068-CA external rotor motor with maintenance-free ball bearings and a 1.5 µF / 400 VDB capacitor connection. Operating on a 230 VAC supply, it delivers a Power Consumption of 50 W (50 Hz) / 61 W (60 Hz) and a Current Draw of 0.24 A / 0.28 A at a rated speed of 2740 / 3120 RPM under free air (fa) conditions. Featuring a rugged black painted rotor surface and H1 moisture protection, it ensures superior thermal management with IP44 protection and an extended service life in continuous S1 environments at the end.
A2E200-AF02-01 Fan Parameters
Model Number: A2E200-AF02-01
Motor Model: M2E068-CA
Manufacturer: ebmpapst
Type: AC Axial Fan – Straight blades (A series)
Impeller Size: 200 mm
Dimensions: 200 x 68.5 mm
Weight: 1.4 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Method of Obtaining Data: fa (Free air)
Current Draw: 0.24 / 0.28 A
Starting Current: 0.53 / 0.53 A
Power Consumption: 50 / 61 W
Rated Speed: 2740 / 3120 RPM
Max. Air Flow: 535.6 / 609.2 CFM (910.0 / 1035.0 m³/h / 15.17 / 17.25 m³/min)
Max. Static Pressure: 20.39 / 20.39 mmH₂O (200.0 / 200.0 Pa / 0.80 / 0.80 inAq)
Capacitor: 1.5 µF / 400 VDB
Number of Blades: 5
Impeller Material: Sheet steel, painted black
Rotor Surface: Painted black
Direction of Airflow: “V”
Direction of Rotation: Counterclockwise (viewed toward rotor)
Insulation Class: “B”
Degree of Protection: IP44
Environmental Protection Class: H1
Touch Current: < 0.75 mA
Motor Protection: Thermal overload protector (TOP) internally connected
Installation Position: Shaft horizontal or rotor on bottom
Condensation Drainage Holes: On rotor side
Mode: S1
Protection Class: I
Max. Ambient Temperature: 75 / 75 ° C
Min. Ambient Temperature: -25 ° C
Max. Storage Temperature: +80 ° C
Min. Storage Temperature: -40 ° C
Standard Compliance: EN 60335-1; CE
Approval: CCC; EAC
Application
The ebmpapst A2E200-AF02-01 fan is the primary cooling component for industrial refrigeration condensers, high-performance heat exchangers, and ventilation systems requiring compact 230V single-phase axial airflow with a 5-blade straight impeller configuration.
